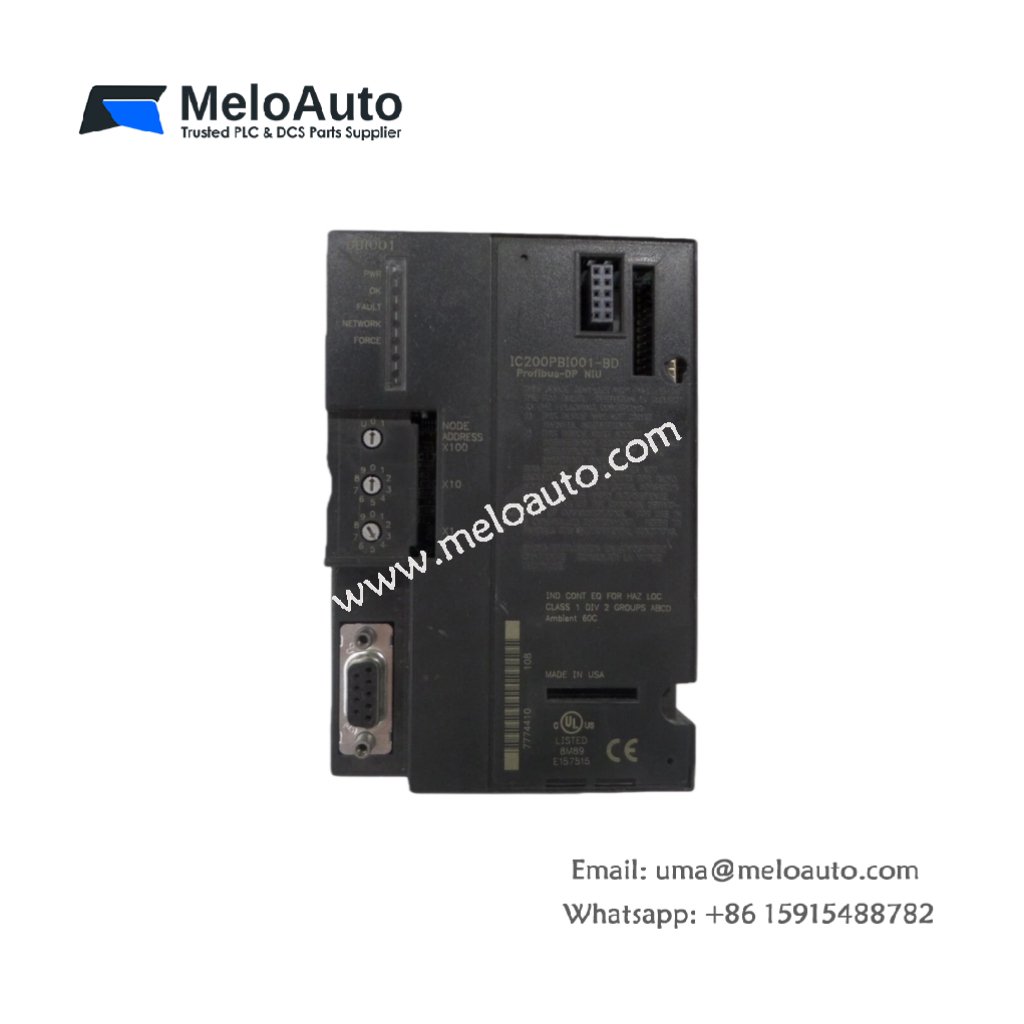

GE IC200PBI001 Profibus Network Interface Unit (NIU)

The IC200PBI001 is an advanced Profibus Network Interface Unit (NIU) from GE Fanuc‘s Versamax series. This module provides seamless communication between the control system and I/O modules, supporting up to 64 I/O modules in a network. Designed for industrial automation, it offers high-speed communication and reliable diagnostics.

Key Features

Manufacturer: GE Fanuc
Model: IC200PBI001
Product Type: Network Interface Unit (NIU)
Product Line: Versamax
Weight: 0.31 lbs (0.14 kg)
Power Consumption: 250 mA (5V) and 10 mA (3.3V)
Network Data Rate: 9.6 Kbaud to 12 Mbaud
Network Address Range: 1-125
I/O Modules Supported: 64
Connector: 9-pin D-sub
User Diagnostics Data: 5 bytes
Firmware Update: Easy firmware update functionality
Installation: Quick DIN rail mount
LED Indicators: Power, health, fault, network, and force status LEDs

Technical Specifications

Specification	Details
Model	IC200PBI001
Manufacturer	GE Fanuc
Product Type	Network Interface Unit (NIU)
Product Line	Versamax
Weight	0.31 lbs (0.14 kg)
Current Consumption	250 mA (5V), 10 mA (3.3V)
I/O Modules Supported	64
Network Address Range	1-125
Network Data Rate	9.6 Kbaud to 12 Mbaud
User Diagnostics Data	5 bytes
Connector	9-pin D-sub
Firmware Update	Supports easy firmware updates
Installation	Quick DIN rail mount
LED Indicators	Power, health, fault, network, force
Address Selection	Rotary switch (1-125 range)
Max Stations without Repeaters	32

Description

The IC200PBI001 module is a Profibus Network Interface Unit (NIU) designed for use with GE Fanuc’s Versamax series. It controls up to 64 I/O modules, supporting reliable communication across the network. Powered by the 5V bus, the unit draws 250 mA of current, with an additional 10 mA from the 3.3V supply. It is ideal for automation systems requiring fast and flexible communication.

The IC200PBI001 supports a network data rate between 9.6 Kbaud and 12 Mbaud. It automatically detects the best data rate for the network, ensuring efficient communication. This unit features 375 bytes of I/O data at a time, making it suitable for high-performance applications. Moreover, the rotary switch on the front panel allows easy selection of network addresses between 1 and 125.

This NIU offers easy installation with a DIN rail mount and quick connector setup. Simply click the unit into place, and the power supply will latch securely. It can support up to 32 stations without repeaters, ensuring scalability for larger networks.

Additionally, the IC200PBI001 includes 4 LED indicators on the front panel, providing visual feedback on the power, health, fault, network, and force status. The force LED aids in troubleshooting network issues, while the user diagnostics data (5 bytes) helps with real-time monitoring and system optimization.

Firmware updates are also simplified. During updates, switch the controller to stop mode and disconnect the network cable from the NIU. This ensures a smooth and safe update process.

Applications

The IC200PBI001 is ideal for industrial automation systems requiring reliable Profibus communication. It can control I/O modules across various manufacturing and processing environments. Whether it’s used for material handling, robotics, or other automation tasks, the IC200PBI001 ensures optimal performance and easy network integration.
