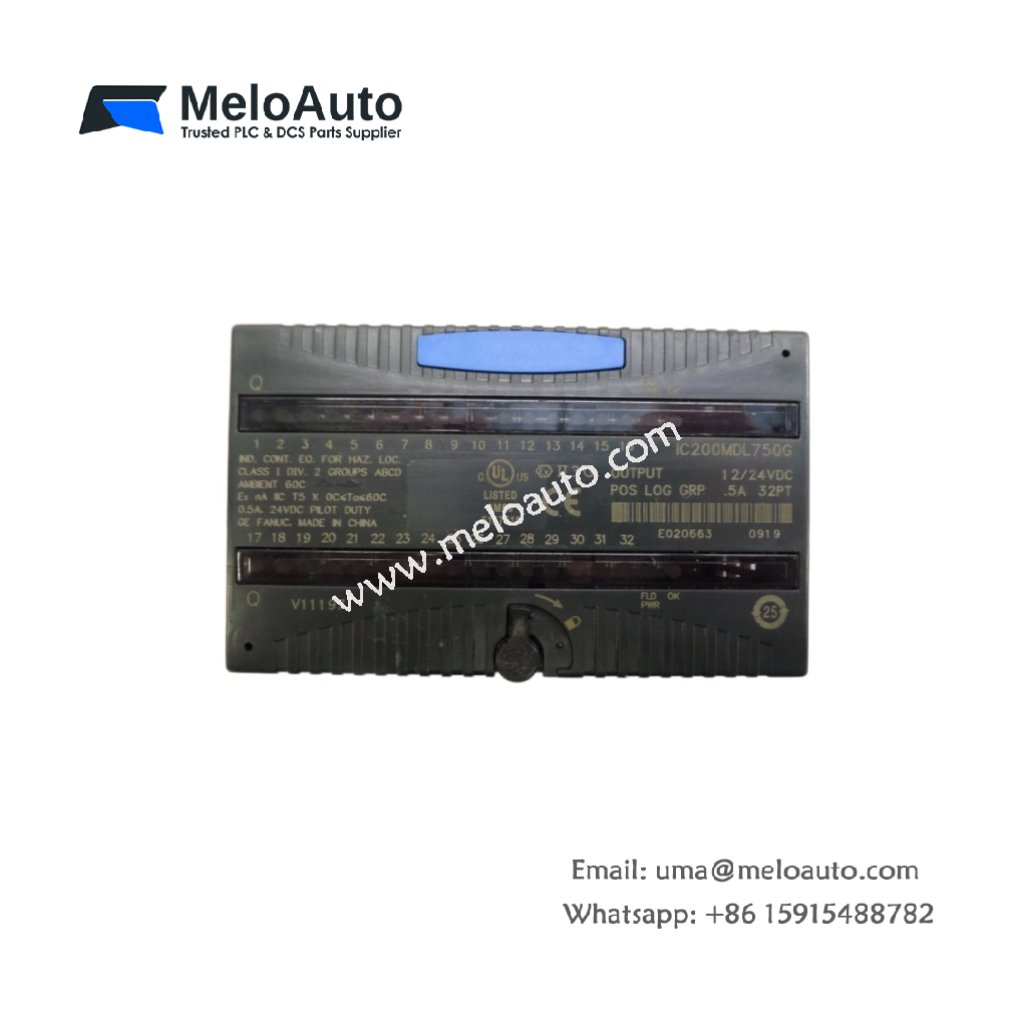

GE IC200MDL750G – VersaMax Output Module for Digital Actuator Control

The GE IC200MDL750G drives solenoids, relays, and indicator lamps in VersaMax systems. This output module measures 110 mm in height and 50 mm in width. It has a depth of 70 mm, so it fits standard DIN rails easily. The unit weighs 0.18 kg, making installation quick and straightforward.

Output Channels and Specifications

This output module provides 16 independent output channels on its front panel. The GE IC200MDL750G switches loads from 12V DC up to 24V DC. Each channel handles 0.5 amps of continuous current without external cooling. The total current across all channels must not exceed 4 amps. Each output includes a flyback diode for inductive load protection.

Switching Technology and Response Time

The module uses power MOSFET transistors for fast and reliable switching operations. The GE IC200MDL750G turns outputs on within 100 microseconds of receiving a command. It turns outputs off within 100 microseconds for precise load control. Each channel includes short-circuit protection with automatic current limiting. Thermal shutdown protects the module during overload conditions.

Internal Architecture and Component Layout

The module contains two separate circuit boards inside its plastic housing. One board handles logic interfacing, while the other manages output switching. The GE IC200MDL750G includes 16 LED indicators for individual channel status. A 20-pin removable terminal block accepts all field wiring connections. The module stores 47 µF of capacitance for output filtering only.

Backplane Interface and Power Requirements

A VersaMax backplane connector provides power and communication to this module. The GE IC200MDL750G draws 80 mA at 5V DC from the backplane supply. It requires external 24V DC power for the output circuits. The module operates reliably from 0°C to 60°C ambient temperature. It tolerates humidity levels up to 95 percent without any condensation issues.

Below is a complete summary of its technical specifications.

The GE IC200MDL750G replaces older output modules in VersaMax I/O systems. You do not need any rewiring or configuration changes during replacement. This module also supports hot-swapping in compatible backplane configurations. Consequently, it controls actuators reliably in factory automation applications.
