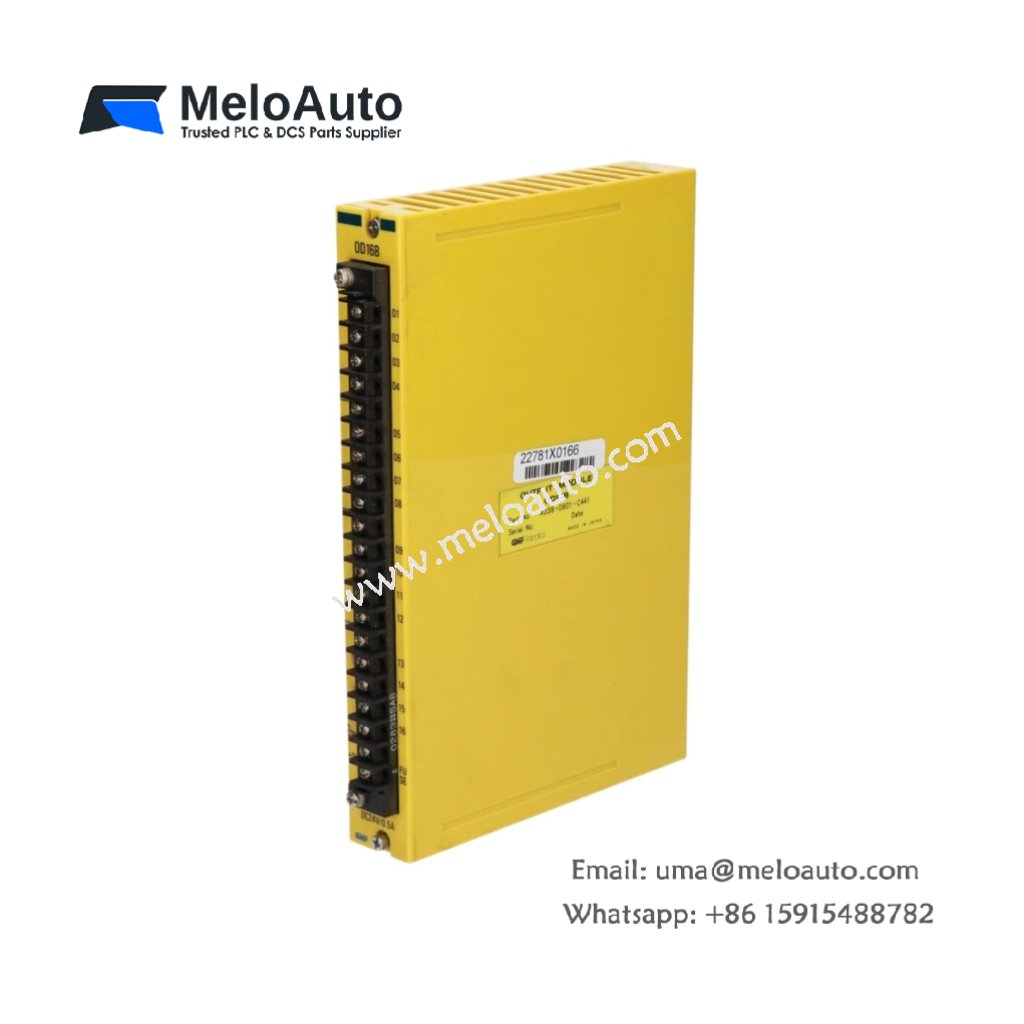

GE A03B-0801-C441 – Robot Output Module for Digital Signal Control

The GE A03B-0801-C441 provides digital output signals for robotic arm and end-effector control. This output module measures 220 mm in height and 140 mm in width. It has a depth of 45 mm, so it fits standard robot controller cabinets easily. The unit weighs 0.72 kg, making installation secure and straightforward.

Output Channels and Specifications

This robot output module provides 16 independent output channels on its front panel. The GE A03B-0801-C441 switches loads from 12V DC up to 48V DC. Each channel handles 0.5 amps of continuous current without external cooling. The total current across all channels must not exceed 4 amps. Each output includes a flyback diode for inductive load protection.

Switching Technology and Response Time

The module uses power MOSFET transistors for fast and reliable switching operations. The GE A03B-0801-C441 turns outputs on within 40 microseconds of receiving a command. It turns outputs off within 35 microseconds for precise load control. Each channel includes short-circuit protection with automatic current limiting. Thermal shutdown protects the module during overload conditions.

Internal Architecture and Component Layout

The module contains two separate circuit boards inside its metal housing. One board handles logic interfacing, while the other manages output switching. The GE A03B-0801-C441 includes 16 LED indicators for individual channel status. A 36-pin ribbon cable connector interfaces with the robot controller backplane. The module stores 68 µF of capacitance for output filtering only.

Power Requirements and Environmental Tolerance

The GE A03B-0801-C441 draws 120 mA at 5V DC from the backplane supply. It requires external 24V DC power for the output circuits. The module operates reliably from 5°C to 45°C ambient temperature. It tolerates humidity levels up to 85 percent without any condensation issues. The unit withstands vibration up to 2g from 10 to 500 Hz.

Below is a complete summary of its technical specifications.

The GE A03B-0801-C441 replaces older output modules in GE robot control systems. You do not need any rewiring or configuration changes during replacement. This module also supports hot-swapping in compatible controller configurations. Consequently, it controls grippers, solenoids, and signal lamps on robotic cells.
