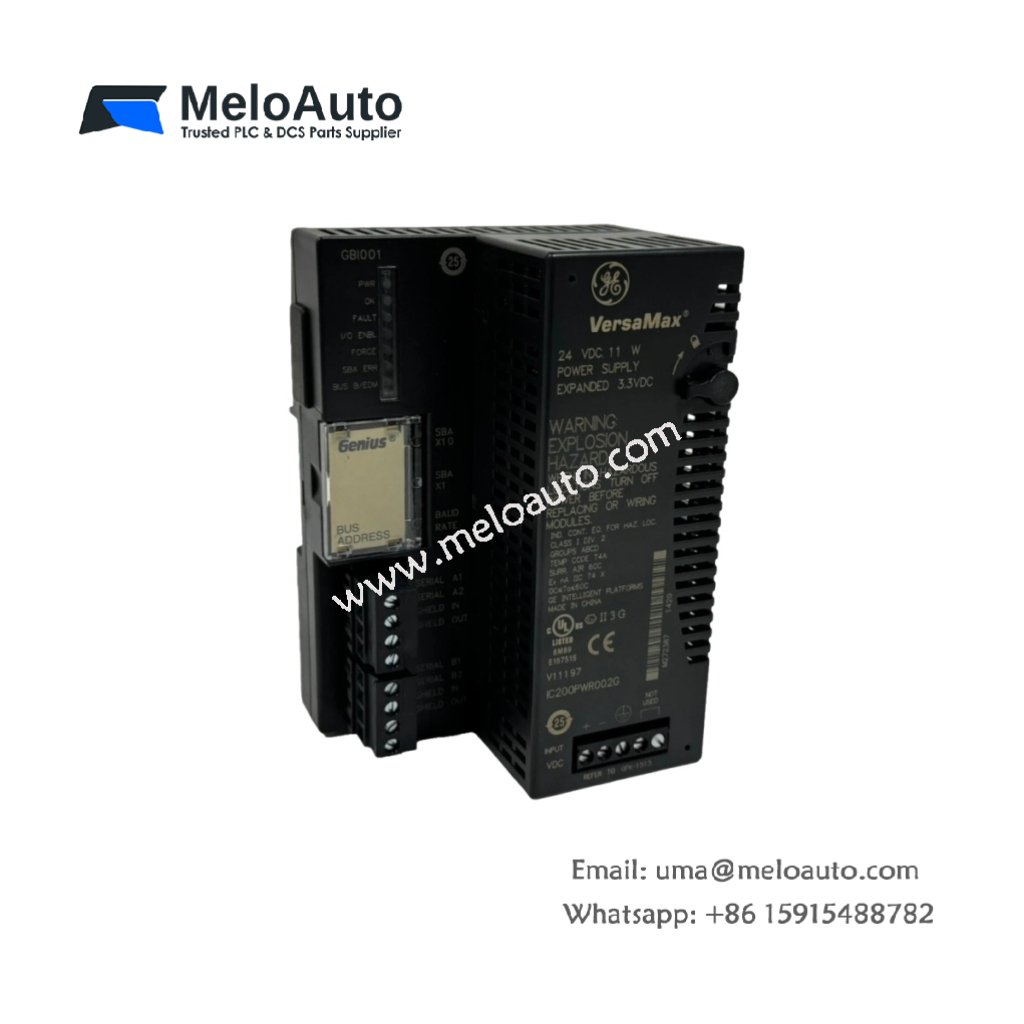

GE IC200GBI001 Genius Network Interface Unit (NIU)

The GE IC200GBI001 is a Genius Network Interface Unit (NIU), designed for use with the VersaMax Programmable Logic Controller (PLC) product family. Manufactured by GE Fanuc Emerson, this module functions as a Genius slave module, facilitating the implementation of distributed I/O architecture by hosting and controlling I/O modules. It is an essential component for building flexible and scalable automation systems.

Key Features and Specifications:

• Manufacturer: GE Fanuc Emerson
• Product Line: VersaMax
• Product Type: Genius Network Interface Unit (NIU)
• Part Number: IC200GBI001
• Weight: 0.38 lbs (0.17 kg)
• Communication Ports: Two (2) Genius bus terminals
• Redundancy: Supported
• Modules Supported: Up to Eight (8) I/O modules per rack
• Racks Supported: Up to Eight (8) racks
• I/O Memory: 1024 points (2048 discrete I/O points)
• Network Inputs/Bus Scan: 128 bytes per scan
• Transmission Rates: 153.6 kbaud (extended), 153.6 kbaud, 76.8 kbaud, and 38.4 kbaud (standard)
• Analog I/O Memory: 128 bytes for both input and output
• Power Rating: 250 mA @ 5V DC, 10 mA @ 3.3V DC
• Wiring Topology: Daisy-chain
• Compatible Controllers: Series 90-70, PACSystem RX7i, PACSystem RX3i
• Serial Bus Address Range: 0 to 31
• LED Indicators: PWR, OK, FAULTS, I/O ENBL, FORCE, SBA ERR, BUS B
• Terminating Resistor Options: 75, 100, 120, or 150 ohms

Description:

The IC200GBI001 is a crucial communication module designed for seamless integration within the VersaMax PLC system. As a Genius Network Interface Unit (NIU), it allows distributed I/O modules to connect efficiently and effectively. This unit supports up to eight (8) I/O modules per rack, with a maximum of eight (8) racks. It facilitates up to 64 I/O modules, significantly increasing the scalability of your automation system.

This module supports multiple transmission rates, including 153.6 kbaud for extended network configurations and 153.6 kbaud, 76.8 kbaud, and 38.4 kbaud for standard configurations. It can accommodate a large number of I/O points, such as 1024 discrete inputs and 1024 discrete outputs, making it suitable for complex control tasks. Additionally, the module provides 128 bytes of analog I/O memory for analog inputs and outputs.

Power and Communication:

The IC200GBI001 is designed to deliver reliable power and communication performance. It requires 250 mA at 5V DC and 10 mA at 3.3V DC to operate efficiently. The unit supports daisy-chain wiring topology, with terminating resistors installed at both ends of the communication cable. This ensures stable and efficient data transmission across your system.

Redundancy and Reliability:

This module offers built-in redundancy to improve system reliability. The IC200GBI001 is equipped with two Genius bus terminals: the upper terminal serves as the primary connection, while the lower terminal provides a redundant connection. This configuration ensures uninterrupted communication, even in the event of a fault or connection issue.

Installation and Compatibility:

The IC200GBI001 is compatible with a wide range of controllers, including Series 90-70, PACSystem RX7i, and PACSystem RX3i. To ensure proper functionality, appropriate firmware versions must be installed on both the controller and the IC200GBI001 module. The Genius protocol enables easy communication with various controller platforms, providing flexibility for your automation systems.
