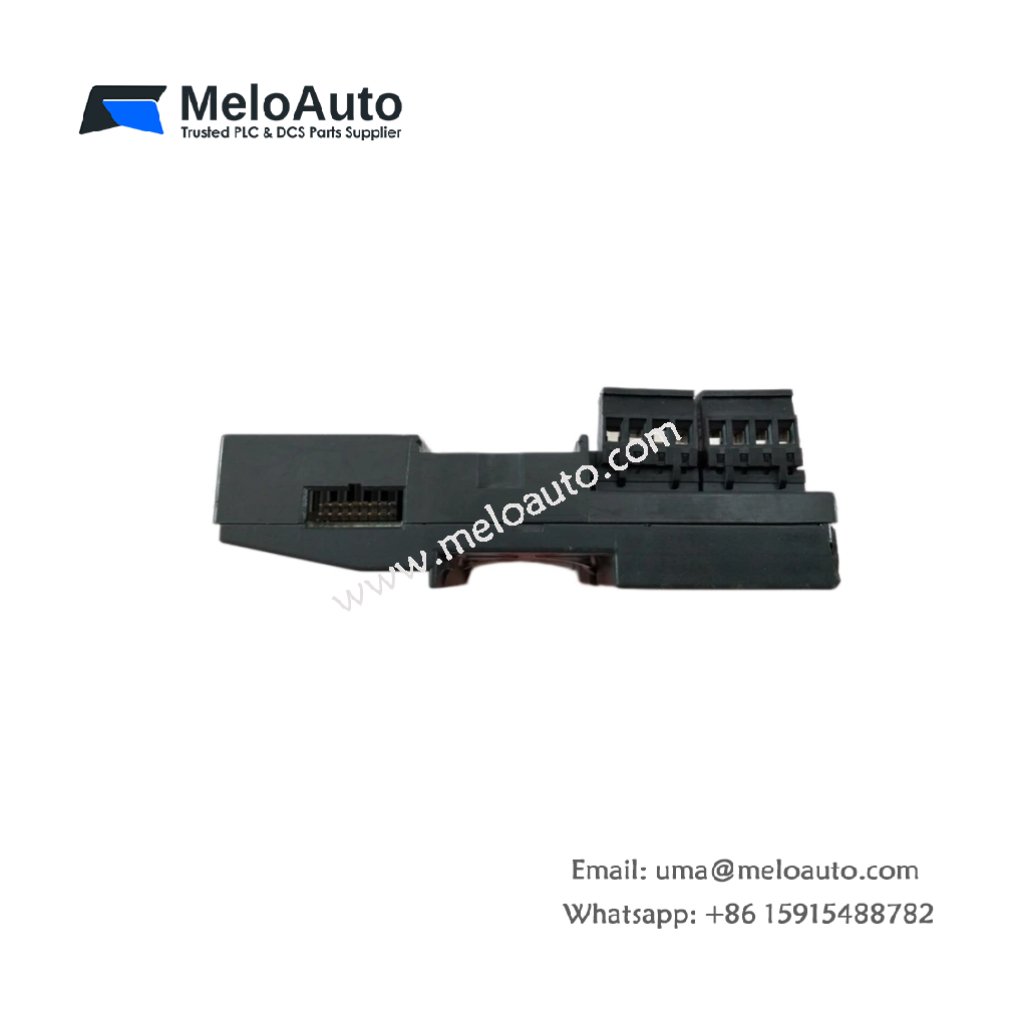

GE IC200GBI001-FF | Genius Bus Interface Unit

The GE IC200GBI001-FF connects VersaMax I/O modules to a Genius bus network. This interface unit serves as the communication gateway between the controller and field devices. It supports Genius protocol for reliable distributed I/O in industrial environments. Weighing only 0.45 kg, the GE IC200GBI001-FF mounts on a DIN rail or panel. Its dimensions measure 110 mm x 90 mm x 65 mm.

Communication Specifications and Network Features

The GE IC200GBI001-FF supports Genius bus communication at speeds up to 153.6 kbit/s. This interface unit handles up to 32 I/O modules per bus segment for distributed control. It includes built-in diagnostics for network health monitoring and fault detection. Moreover, the GE IC200GBI001-FF features LED indicators for bus status and module health. Consequently, you can identify and resolve communication faults quickly without special tools.

Energy Storage and Internal Components

The GE IC200GBI001-FF contains no internal battery for complete maintenance-free operation. It stores configuration data in non-volatile flash memory instead. This interface unit draws 200 mA from the 5 V DC backplane power supply. Additionally, it consumes 100 mA from the external 24 V DC field power supply. The GE IC200GBI001-FF includes optical isolation between the bus and internal logic. Therefore, it protects your controller from electrical noise and ground loops on the Genius network.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	GE IC200GBI001-FF
Product Category	VersaMax Genius Bus Interface Unit
Communication Protocol	Genius bus
Transmission Speed	153.6 kbit/s maximum
Maximum I/O Modules per Segment	32
Maximum Bus Length (Twisted Pair)	1,500 meters (4,900 feet)
Maximum Bus Length (Fiber Optic)	2,500 meters
Supported Cable Types	Shielded twisted pair (Belden 9182) or fiber optic
Connector Type (Bus)	9-pin SUB-D female
Built-in Diagnostics	Yes (bus health, module status, error counters)
Optical Isolation	1,500 V AC between bus and logic
LED Indicators	Power (green), Bus OK (green), Module OK (green), Fault (red)
Current Consumption (5V DC)	200 mA from backplane
Current Consumption (24V DC)	100 mA external field supply
Power Dissipation	1.5 W maximum
Energy Storage	No battery (flash memory only)
Number of Components	1 main PCB + 1 SUB-D connector + 1 terminal block + metal housing
Net Weight	0.45 kg (450 grams)
Gross Weight (packaged)	590 grams
Dimensions (H x W x D)	110 mm x 90 mm x 65 mm
Mounting Type	35 mm DIN rail or panel mount
Wire Size (Terminal)	AWG 24 to AWG 14 (0.2 mm² to 2.5 mm²)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, CSA

Installation and Application Details

The GE IC200GBI001-FF mounts directly onto a standard 35 mm DIN rail. Connect the Genius bus cable to the 9-pin SUB-D connector on the front panel. Terminate both ends of the bus segment with appropriate resistors. The GE IC200GBI001-FF requires an external 24 V DC power supply for its communication circuits. Use Belden 9182 shielded twisted pair cable for reliable Genius bus operation. This interface unit suits distributed I/O applications, remote monitoring, and factory floor networking. It also works perfectly for connecting VersaMax I/O to Genius-based PLC systems. Thus, the GE IC200GBI001-FF provides reliable gateway functionality for mixed automation architectures.
