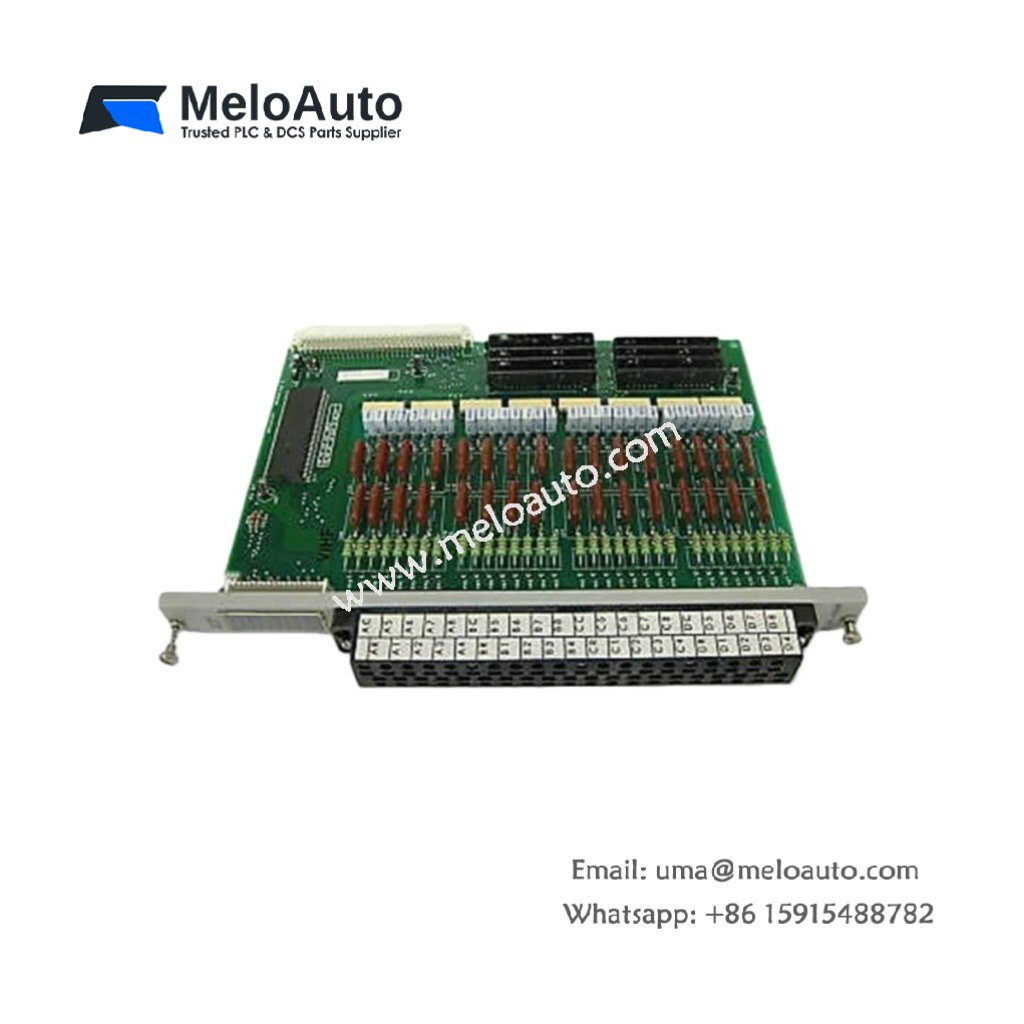

Siemens 505-4232 505-4232A Discrete Input/Output Module

The Siemens 505-4232 and 505-4232A are versatile Discrete Input/Output Modules designed for use in industrial automation systems. These modules can accommodate up to 8, 16, or 32 input or output points, offering compatibility with both AC and DC signals. They are ideal for applications such as limit switches, pushbuttons, and other control devices, ensuring reliable performance and flexibility.

Key Features of Siemens 505-4232 505-4232A

Input/Output Points: Available with 8, 16, or 32 points to cater to different system requirements.
Voltage Compatibility: Can accept both AC and DC voltages, depending on the module.
Isolation: Equipped with isolated commons for each module, enhancing safety and reducing interference.
Inductive Load Resistance: More resistant to inductive load transients than standard DC modules.
Triac Outputs: The AC output models feature heavy-duty triacs for a faster turn-on response.
Mixed Voltage Handling: Capable of handling both AC and DC voltages within the same module for high versatility.

Technical Specifications

Specification	Details
Model	505-4232 505-4232A
Module Type	Discrete Input/Output Module
Input/Output Points	8, 16, or 32 points
Voltage Compatibility	AC or DC (depending on module)
Isolation	Four isolated commons (16-32 points)
Input/Output Circuit Configuration	Groups of isolated commons for each model
AC Output Module Type	Heavy-duty triac (no zero-cross circuit)
Inductive Load Resistance	Superior to other DC modules for transients
Response Time (Turn-on)	Fast turn-on, especially in AC output models
Common Type (for 8-point module)	Eight isolated commons
Operating Temperature Range	-10°C to +60°C
Dimensions (L x W x H)	100 mm x 80 mm x 35 mm
Weight	0.25 kg

Benefits of the Siemens 505-4232 505-4232A

Flexible Configuration: Choose between 8, 16, or 32 input/output points to suit your specific needs.
Voltage Versatility: Compatible with both AC and DC voltages, offering a flexible solution for various applications.
Durability: Built with heavy-duty triacs, ensuring long-lasting performance.
Fast Response Time: The AC output modules feature a quick turn-on even under heavy loads.
Isolation Protection: The modules include isolated commons, providing added safety and minimizing interference in sensitive applications.

The Siemens 505-4232 and 505-4232A modules provide an efficient and reliable solution for managing discrete I/O points in industrial systems. Whether handling limit switches or pushbuttons, these modules deliver the functionality needed for optimal system performance.
