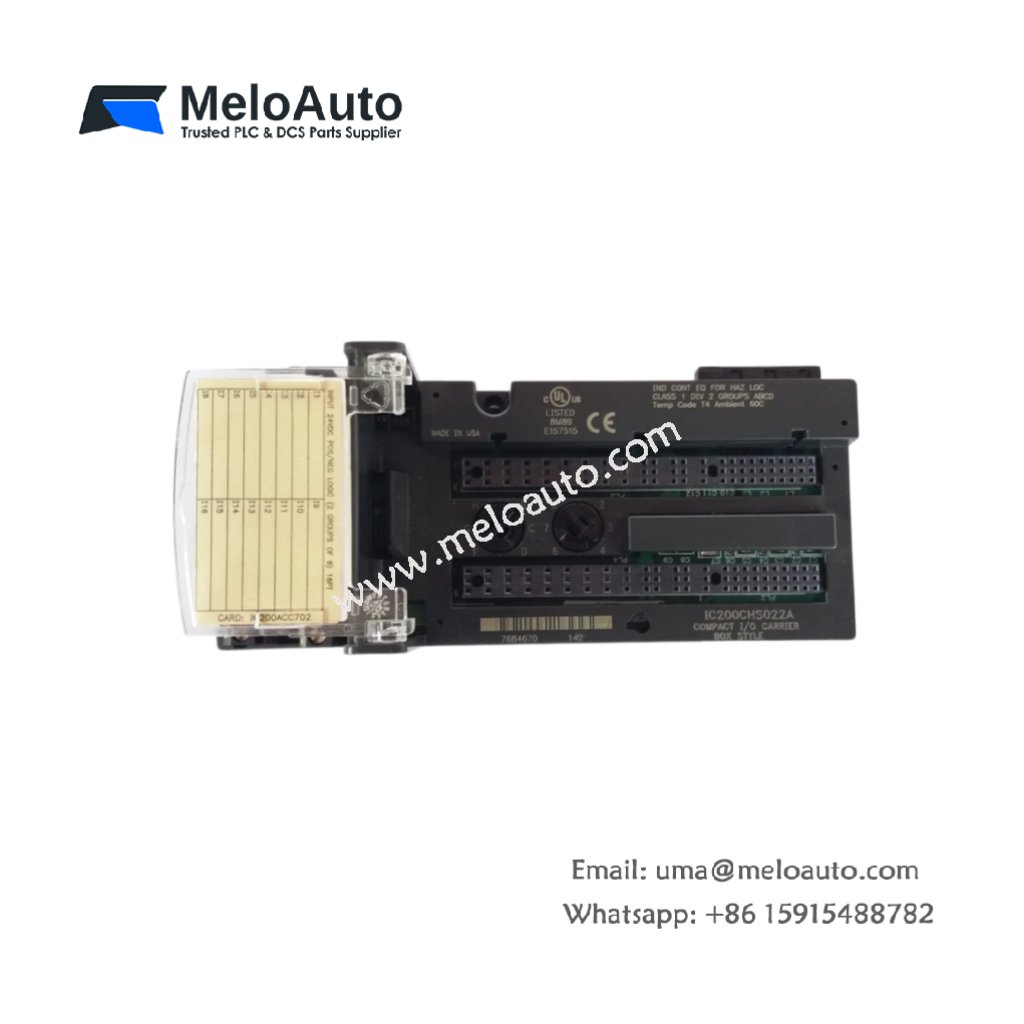

GE IC200CHS022A Compact I/O Carrier Module

Overview

The GE IC200CHS022A is a compact I/O carrier module within the VersaMax platform, developed by Emerson Automation. This module is designed to provide 36 organized screw-type terminals for connecting input and output devices. The IC200CHS022A supports reliable integration with VersaMax I/O modules, ensuring smooth operation in industrial automation systems.

Key Features

36 Well-Organized Terminals: The GE IC200CHS022A offers 36 labeled terminals (A1-A18, B1-B18). This organized layout simplifies wiring and enhances efficiency during installation.
Voltage and Current Flexibility: This module supports a voltage range of 0-264 VAC, making it versatile for various systems. Each terminal can carry up to 2 Amps, while the power and ground terminals handle up to 8 Amps.
Wide Compatibility with Wire Sizes: The IC200CHS022A accommodates solid or stranded copper wire with a size range of AWG #14 to AWG #22 for single-wire connections. It also supports AWG #18 for two-wire connections within the same terminal for terminal shorting.
High Transient Voltage Protection: Designed to withstand transient voltages up to 300 VAC, the IC200CHS022A ensures stable performance and durability, even in environments with power fluctuations.
Flexible Mounting Options: The module supports both DIN rail and panel mounting, offering flexibility in various installation settings. Its compact depth of 70 mm ensures easy integration into space-limited control cabinets.
Clearance for Easy Installation: It requires 2 inches (5.1 cm) of clearance at the top and bottom, and 1 inch (2.54 cm) on the sides, making installation straightforward.

Technical Specifications

Parameter	Specification
Model	IC200CHS022A
Product Type	Compact I/O Carrier Module
Product Line	VersaMax
Number of Terminals	36 Terminals (A1-A18, B1-B18)
Current Rating per Terminal	2 Amps
Current Rating per Power Terminal	8 Amps
Current Rating per Ground Terminal	8 Amps
Voltage Rating	0-264 VAC
Max Transient Voltage	300 VAC
Wire Size Compatibility	AWG #14 to AWG #22 (single wire); AWG #18 (two-wire connection)
Mounting Options	DIN Rail or Panel Mounting
Enclosure Depth	70 mm
Mounting Clearance	Top/Bottom: 2 inches (5.1 cm), Sides: 1 inch (2.54 cm)
Application Areas	Class I, Div. 2, Groups A, B, C, D; Class 1 Zone 2 locations

Applications

The GE IC200CHS022A carrier module is perfect for industrial automation, including applications in robotics, CNC machines, and automated control systems. Its flexibility and durability make it suitable for VersaMax I/O systems, ensuring efficient integration and reliable performance across diverse industries.

Manufacturer

Emerson Automation manufactures the IC200CHS022A, continuing the legacy of GE Intelligent Platforms. Known for producing high-quality automation solutions, Emerson ensures that this module meets the highest standards of reliability and performance.
