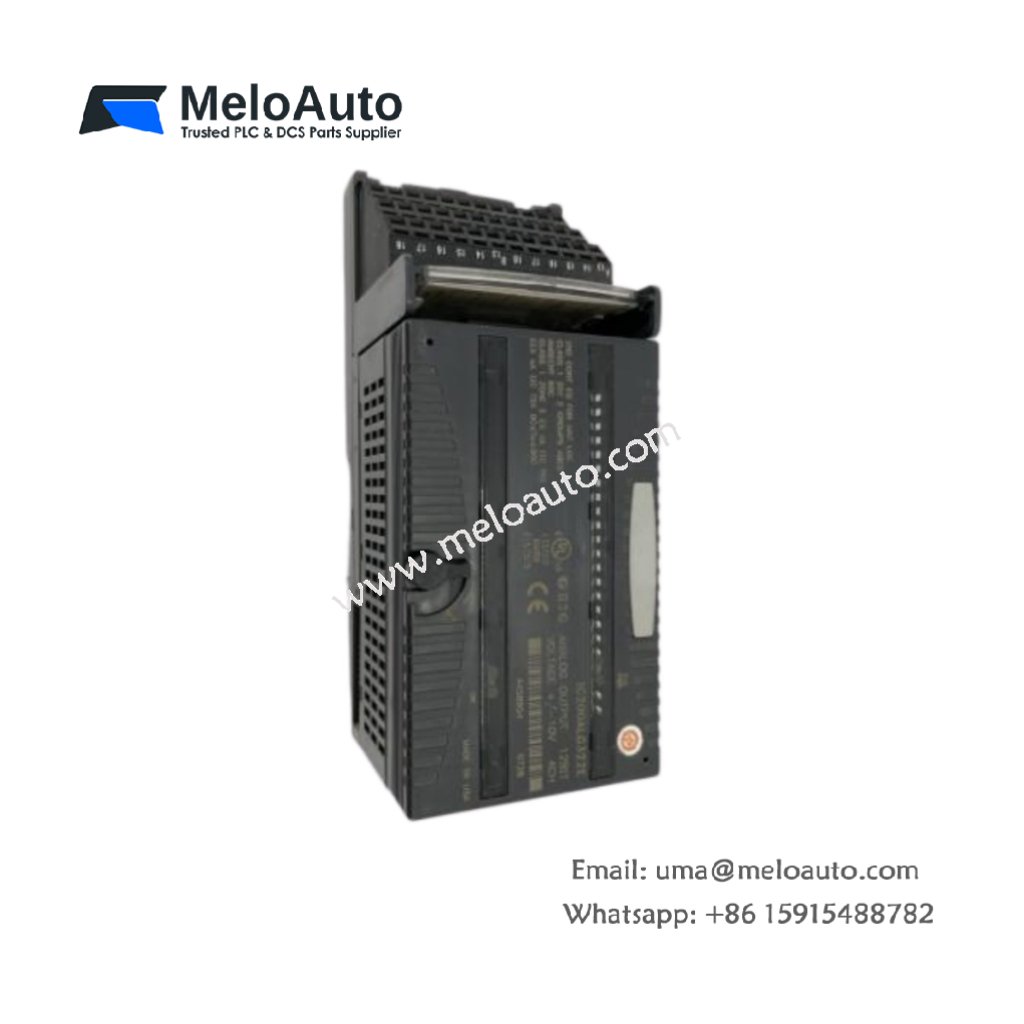

GE IC200ALG322 Versamax Analog Output Module

The GE IC200ALG322 is a reliable analog output module in the Versamax product line, designed by GE Fanuc Emerson for efficient and high-performance industrial automation. This module offers four analog voltage outputs, each delivering a 12-bit resolution. The IC200ALG322 ensures seamless communication with the main processor of the circuit, providing excellent precision and data accuracy in various industrial applications.

This module is engineered for reliability and performance. It operates with a 12-bit resolution, an output voltage of ±10.24V DC, and a minimum resistive load of 5000 Ohms. The IC200ALG322 also features robust isolation capabilities, providing 250 VAC continuous isolation and 1500 VAC for 1 minute of surge protection. These features ensure long-term stability even in demanding environments.

Key Features of GE IC200ALG322

Product Type: Analog Output Module
Manufacturer: GE Fanuc Emerson
Series: Versamax
Resolution: 12-bits
Channels: 4 Analog Voltage Outputs
Output Voltage: ±10.24V DC
Load Capacity: 5000 Ohms minimum (resistive load)
Isolation: 250 VAC continuous, 1500 VAC for 1 minute
Current Consumption: 160 mA max (210 mA max at 12 V)
LED Indicators: 2 for diagnostics
Crosstalk Rejection: 70 dB minimum (channel-to-channel)

Technical Specifications

Parameter	Value
Model Number	IC200ALG322
Manufacturer	GE Fanuc Emerson
Product Type	Analog Output Module
Series	Versamax
Channels	4 Analog Voltage Outputs
Resolution	12-bits
Output Voltage	±10.24V DC
Current Consumption	160 mA max
Current Consumption (12V)	210 mA max
Load Resistance	5000 Ohms minimum
Crosstalk Rejection	70 dB minimum (channel-to-channel)
Isolation	250 VAC continuous, 1500 VAC for 1 minute
Temperature Accuracy	±0.3% to ±1% (at 25-60°C)
Operating Temperature	0°C to 60°C
Weight	0.31 lbs (0.14 kg)

Performance and Diagnostic Features

The GE IC200ALG322 offers enhanced diagnostic capabilities, providing feedback on the operational status of the module. It can detect power loss on the field-side circuits, allowing users to quickly address any potential issues. This feature ensures that the module consistently delivers precise outputs without compromising system performance. The IC200ALG322 is powered through the same backplane power as the Versamax PLC, with the outputs requiring an external power supply for reliable functionality.

Installation and Environmental Considerations

Before installation, ensure proper inspection of the module and save all packaging materials for reference. The IC200ALG322 should be installed in environments with proper thermal management to avoid degradation due to high levels of radiofrequency emissions. While it operates effectively in temperatures between 0°C and 60°C, it is essential to monitor its performance in environments with extreme conditions.

Why Choose GE IC200ALG322?

High Precision: Offers 12-bit resolution for accurate analog output control.
Durable Isolation: Withstands up to 1500 VAC for enhanced reliability.
Efficient Power Usage: Low current consumption ensures energy-efficient operation.
Diagnostic Feedback: Real-time monitoring and alerts for seamless operation.

The GE IC200ALG322 module is a key component for industrial applications requiring precise control and real-time performance. It combines accuracy, reliability, and ease of integration, making it a valuable asset in automation systems.
