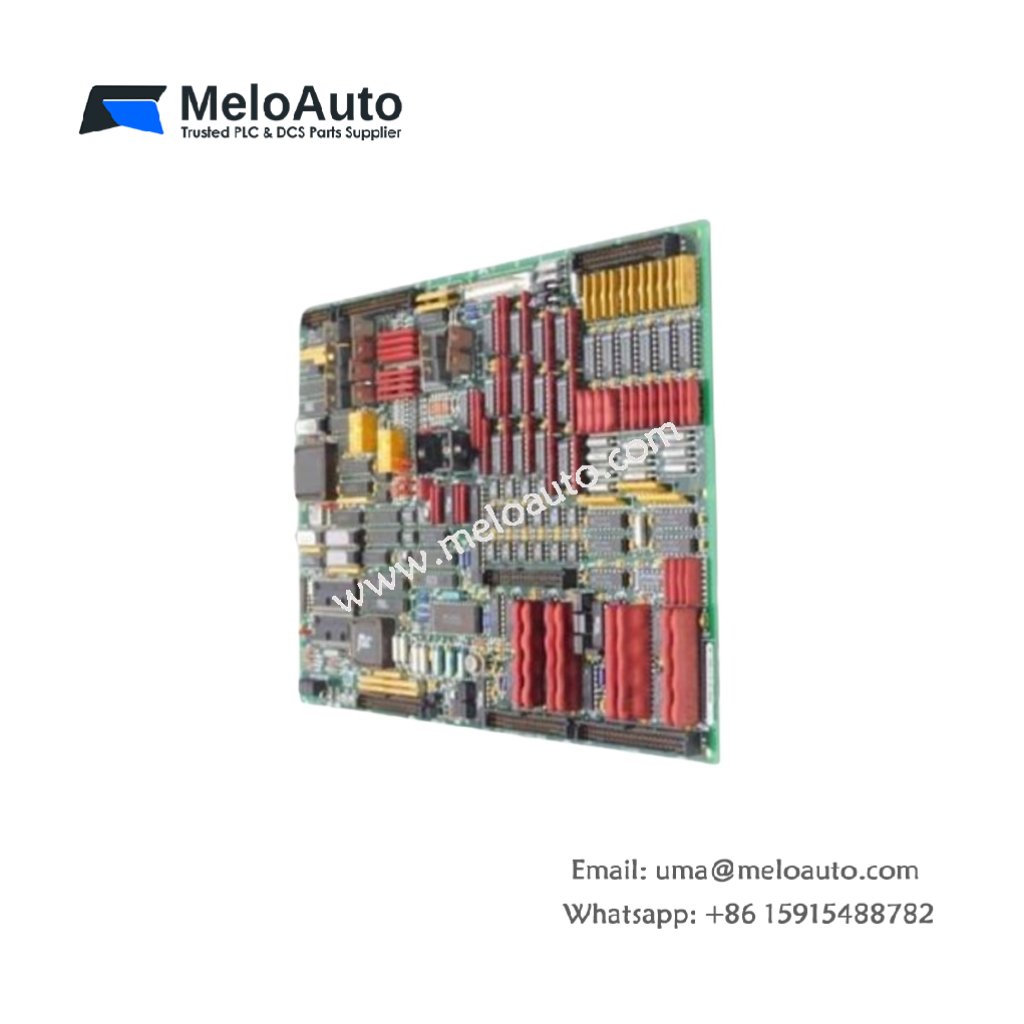

GE DS3800NGDD1C1B Field Ground Detector Card

Product Overview

The DS3800NGDD1C1B is a Field Ground Detector Card designed and manufactured by GE (General Electric). This card is essential for monitoring and protecting industrial equipment by detecting ground faults in the field wiring. It plays a critical role in turbine control and other industrial automation systems. Notably, the DS3800NGDD1C1B is fully compatible with the Mark IV and Mark V series, offering reliable protection and fault detection for your equipment.

Technical Specifications

Key Features & Benefits

The DS3800NGDD1C1B provides essential ground fault detection, helping to protect your system and minimize potential damage. Its three LED indicators make it easier to troubleshoot and monitor system status. Additionally, the card features a 60-pin connector and four jumpers, which offer flexibility for configuration. These features make integration into various systems simple and seamless.

The DS3800NGDD1C1B measures 14.8 cm x 10.2 cm x 2.5 cm, ensuring it fits neatly into standard control panels. Thanks to its 5V DC, 100 mA power requirement, this card operates efficiently, consuming minimal energy. As a result, it helps optimize the overall performance of your system.

Installation Guidelines

• First, ensure the system is powered off before installing the DS3800NGDD1C1B to avoid electrical hazards.
• Next, secure the card in the cabinet using the provided screw holes. This ensures stable mounting during operation.
• Once installed, verify the LED indicators to ensure the card is functioning properly.
• Finally, adjust the jumper settings according to your system’s requirements for optimal operation.

Conclusion

The DS3800NGDD1C1B Field Ground Detector Card is a vital component for industrial systems. It detects ground faults in the field wiring, offering significant protection for your equipment. With easy installation, flexible configuration, and reliable performance, this card ensures the safety and longevity of your system.
