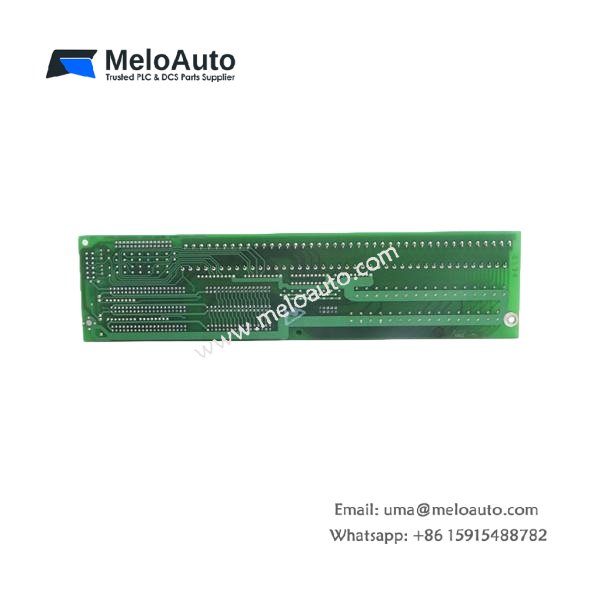

GE DS200TBQCG1ABB Analog Termination Board

The GE DS200TBQCG1ABB is a high-performance analog termination board specifically designed for the GE Mark V Gas Turbine Control System. This module efficiently terminates analog signals between the turbine and the control system, ensuring seamless data transfer and system integration.

Key Features

Compatibility: Designed for the GE Mark V Gas Turbine Control System, the GE DS200TBQCG1ABB ensures optimal signal transmission and system communication.
Signal Termination: Facilitates termination for up to 16 milliamp signals, providing vital signal conditioning, filtering, and electrical isolation.
High Accuracy: The board offers a ±0.5% accuracy of full scale, ensuring precise signal processing for critical control operations.
Electrical Isolation: With a robust 2,000 VRMS isolation, the module protects against electrical interference, enhancing the system’s overall reliability.

Technical Specifications

Specification	Details
Product Type	Analog Termination Board
Manufacturer	General Electric (GE)
Model Number	DS200TBQCG1ABB
Compatibility	GE Mark V Gas Turbine Control System
Number of Channels	16 analog input channels
Input Range	-20 mA to +20 mA
Input Impedance	2kΩ
Accuracy	±0.5% of full scale
Resolution	0.1 mA
Signal Conditioning	Gain, offset, and filtering
Electrical Isolation	2,000 VRMS
Power Requirements	24 VDC, 500 mA
Operating Temperature Range	-40°C to +85°C
Humidity	0% to 95% RH, non-condensing
Dimensions	6.81″ x 4.25″ x 1.65″ (173 mm x 108 mm x 42 mm)
Weight	1.5 lb (0.7 kg)
Mounting	Rack cabinet mounting

Features and Benefits

Signal Quality Enhancement: The GE DS200TBQCG1ABB provides effective signal conditioning, filtering, and offset adjustment, ensuring high-quality signal transmission.
Compact and Efficient: With its compact dimensions of 6.81″ x 4.25″ x 1.65″, the module fits easily into control systems, reducing space requirements without compromising on performance.
Durable and Reliable: This termination board operates reliably in harsh environments with an operating temperature range from -40°C to +85°C, making it suitable for a variety of turbine control applications.
Safe Operation: The 2,000 VRMS isolation ensures safe and secure electrical performance, preventing electrical disturbances from affecting system operations.

Applications

The GE DS200TBQCG1ABB is ideal for applications in wind, gas, and steam turbine control systems. Its precise signal termination capabilities make it essential for ensuring the smooth and reliable operation of turbine systems in industrial environments.
