GE 531X305NTBAPG1 Terminal Board

Overview

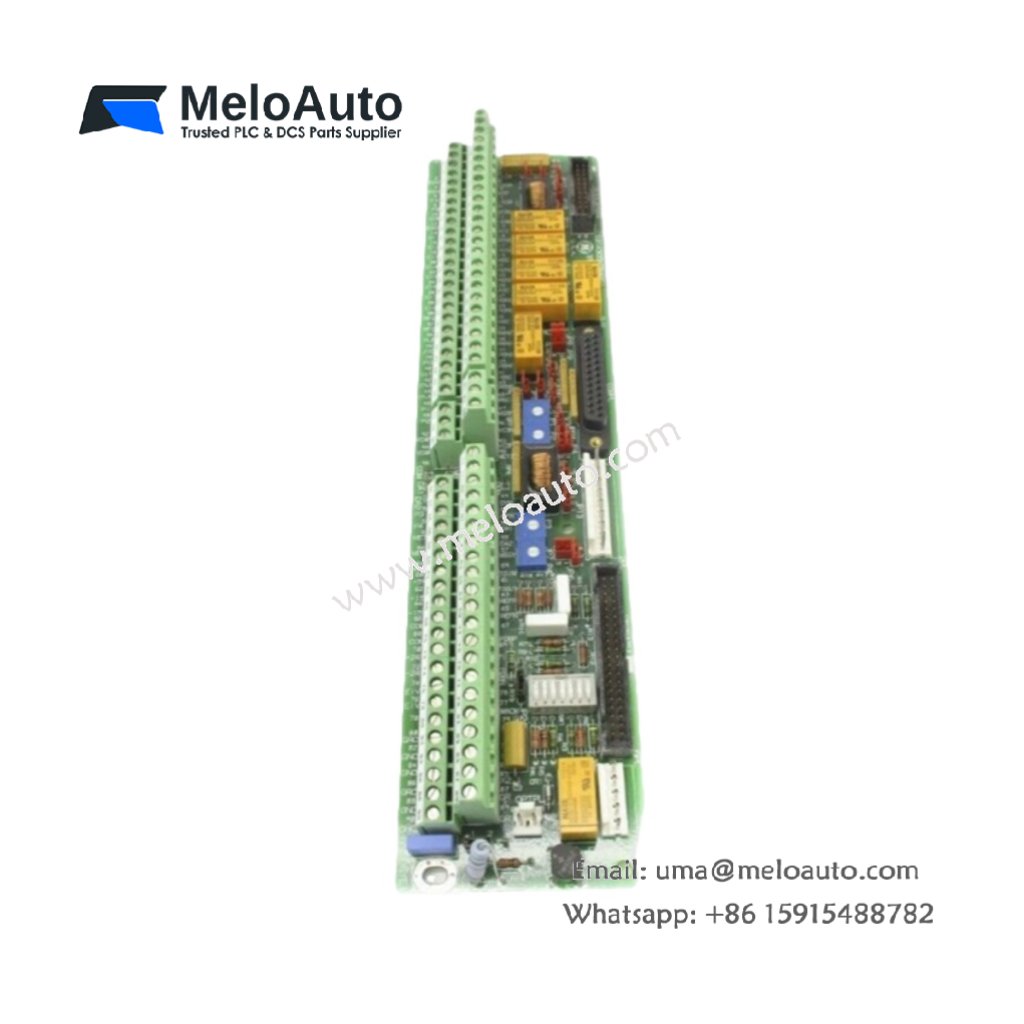

The 531X305NTBAPG1 Terminal Board is an integral part of GE’s EX2000 Excitation System. Installed in the drive or exciter cabinet, this board connects to external signal-level I/O. It comes with multiple connection terminals, each paired with passive interface circuitry, ensuring smooth performance.

This terminal board provides both regulated and unregulated voltage options, making it versatile enough for various systems. Additionally, it supports a differential A-quadrature 8 encoder interface, simplifying integration with the drive control system.

Technical Specifications

Feature	Specification
Model	531X305NTBAPG1
Category	Terminal Board for GE EX2000 Excitation System
Power Supply (Regulated)	+5 V DC (300 mA) and +15 V DC (300 mA)
Power Supply (Unregulated)	24 V DC (500 mA)
AC Output	120 V AC, 0.5 A capacity
Encoder Interface	Differential A-quadrature 8 Encoder
Marker Channel	Included for drive connection
Optical Isolation	Optically isolated encoder circuit
Setup Flexibility	Jumpers for +5 V or +15 V encoder configuration

Key Features

Power Supply Options: The 531X305NTBAPG1 supports both regulated and unregulated power supply configurations. You get +5 V DC and +15 V DC outputs, each with a 300 mA current capacity. The board also provides a 24 V DC unregulated output with 500 mA.
AC Output: Additionally, the terminal board offers a 120 V AC output with a 0.5 A current capacity, increasing its flexibility for various system needs.
Encoder Interface: The board features a differential A-quadrature 8 encoder interface and a marker channel, allowing easy and reliable connections to the drive system.
Optical Isolation: The encoder circuit remains optically isolated, enhancing communication stability and protecting sensitive components.
Flexible Setup: Jumpers provide users with the option to configure the board for either +5 V or +15 V encoders, ensuring compatibility with different system requirements.

Applications

The 531X305NTBAPG1 is an essential part of GE’s EX2000 Excitation System, ideal for industrial automation and power control applications. Its robust design guarantees reliable performance in demanding environments, making it perfect for system integration.
