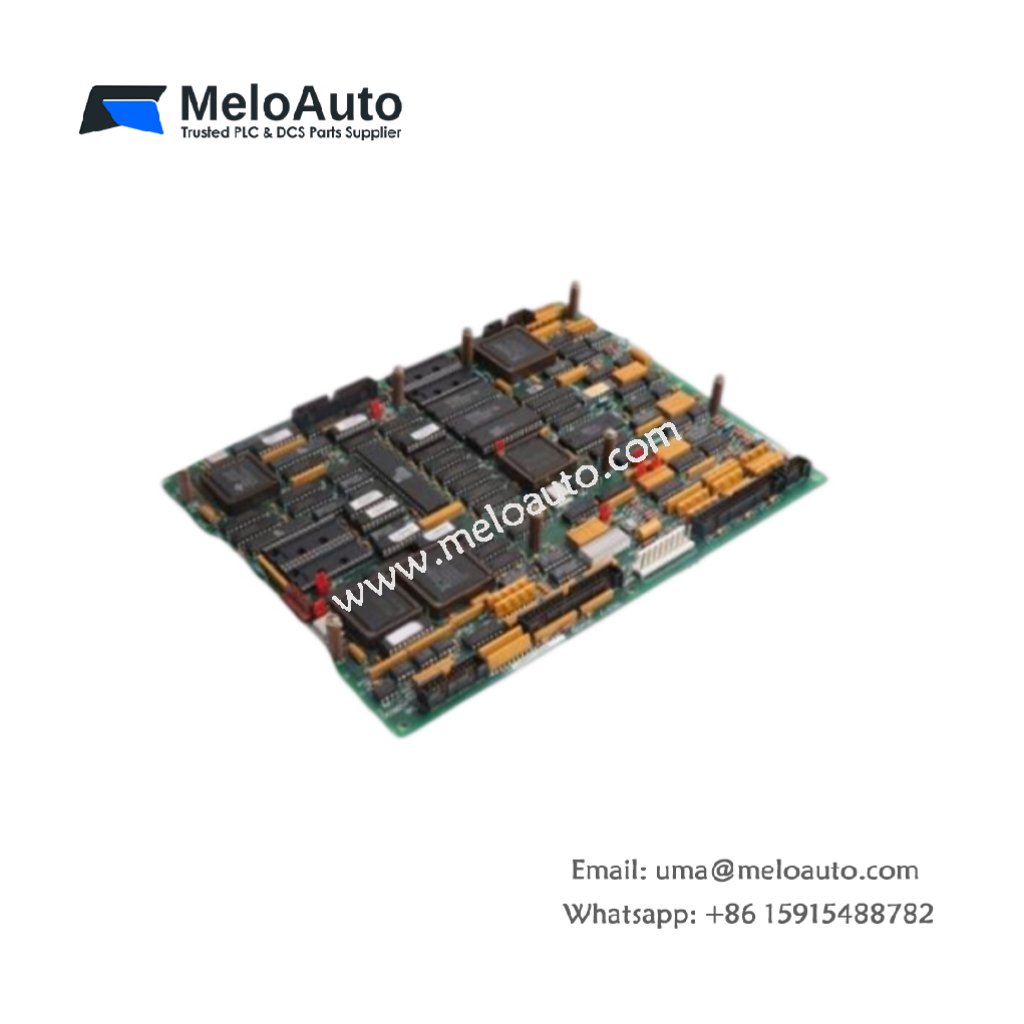

GE DS200LDCCH1ALA Drive Control/LAN Communications Board

Product Overview:

The GE DS200LDCCH1ALA is a highly reliable Drive Control and LAN Communications Board used in industrial automation systems. Designed and manufactured by GE Fanuc, now under Emerson Automation, this board facilitates seamless communication and efficient drive control in complex industrial environments.

Equipped with advanced features, the DS200LDCCH1ALA enhances data exchange and drive operations within automation systems. This board integrates seamlessly with other components, offering exceptional control and monitoring capabilities for industrial processes.

Key Features:

High-performance Communication: Supports LAN communication for smooth data exchange between system components.
Drive Control Integration: Optimizes the control of drives, ensuring precise and efficient operation.
Enhanced Durability: Designed to perform reliably in harsh industrial environments.
Efficient Data Handling: Facilitates quick and accurate communication between connected devices.

Technical Specifications:

Parameter	Specification
Manufacturer	GE Fanuc (Emerson Automation)
Model Number	DS200LDCCH1ALA
Product Type	Drive Control and LAN Communications Board
Weight	0.45 kg (1.0 lbs)
Dimensions	200mm x 150mm x 50mm
Power Requirements	5 VDC, 1.2 A
Interface Type	LAN (Ethernet)
Communication Protocol	Ethernet/TCP-IP
Mounting Type	DIN Rail Mounting
Operating Temperature Range	0°C to 60°C
Storage Temperature Range	-40°C to 85°C
Current Draw	0.8 A max at 5 VDC
Isolation	1500V Isolation between field and logic side
Data Rate	Up to 100 Mbps
Number of Ports	1 LAN Port

Why Choose the GE DS200LDCCH1ALA Drive Control/LAN Communications Board?

Seamless Integration: Easily integrates into existing automation systems, enhancing data flow and drive control.
High-speed Data Handling: Supports Ethernet communication for fast data exchange with connected devices.
Industrial Reliability: Built for long-lasting performance in challenging industrial environments.
Efficient Operation: Designed to improve overall efficiency in drive control and communication tasks.
