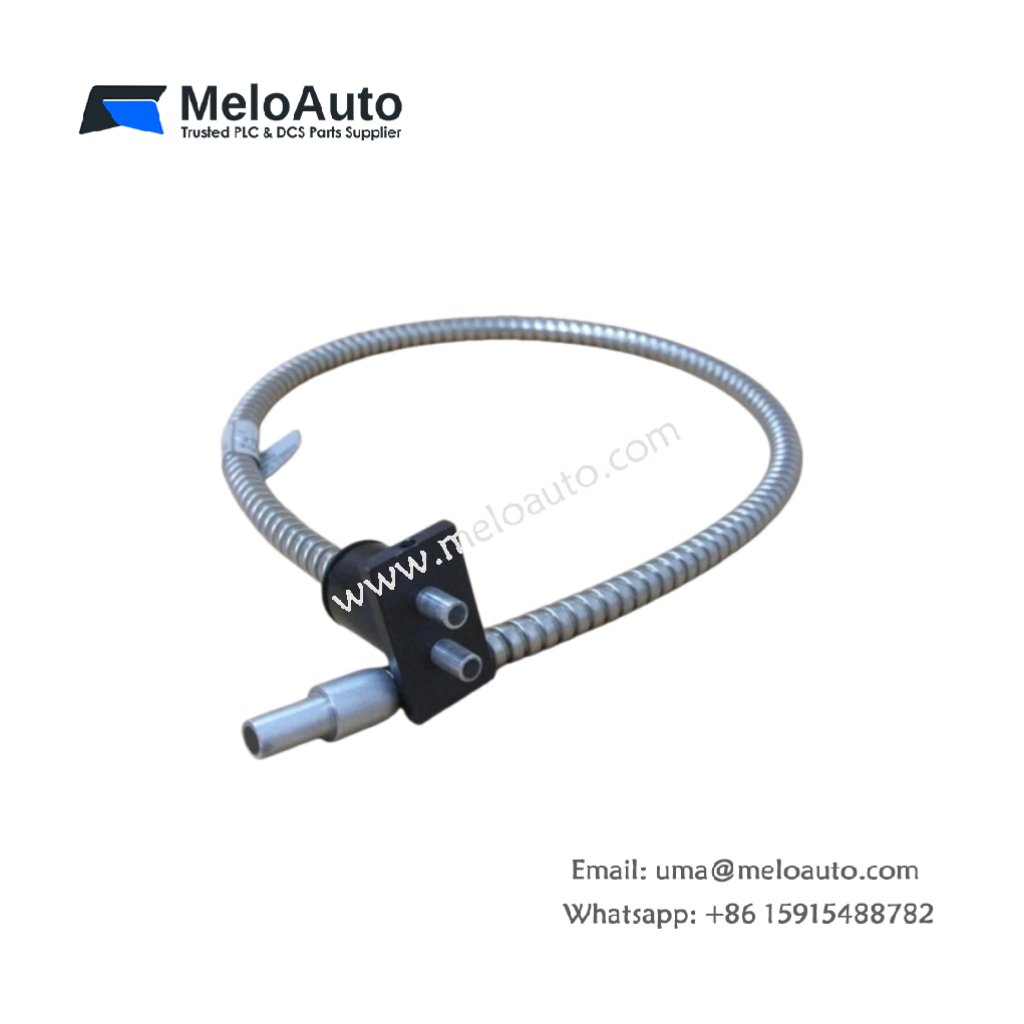

GE CR215PEX01A Fiber-Optic Cable

Core Function of This Fiber-Optic Cable

The GE CR215PEX01A transmits high-speed data between industrial control devices. This fiber-optic cable provides complete electrical isolation between connected equipment. It eliminates ground loops and resists electromagnetic interference in noisy environments. Consequently, the module ensures reliable communication in factories, substations, and turbine yards.

Physical Dimensions and Cable Construction

This fiber-optic cable measures exactly 1.5 meters in total length. The cable consists of a 1 mm plastic optical fiber core. A black polyethylene jacket covers the fiber for mechanical protection. The cable diameter reaches 2.2 mm for easy routing through conduits. You will find two pre-assembled connectors at both ends. The GE CR215PEX01A weighs approximately 65 grams for lightweight handling.

Connector Types and Optical Specifications

The GE CR215PEX01A uses two standard Versatile Link connectors. Each connector features a snap-lock mechanism for secure attachment. The fiber core accepts red LED light at 650 nm wavelength. This plastic optical fiber supports data rates up to 10 Mbps. The typical optical attenuation measures 0.2 dB per meter of cable length.

Transmission Distance and Signal Quality

This fiber-optic cable supports reliable transmission up to 50 meters. The cable maintains signal integrity through industrial electrical noise. Each connector includes a precision-polished end face for low loss. The maximum insertion loss per connector reaches 1.5 dB. Total end-to-end attenuation for this 1.5 m cable stays below 1.8 dB.

Compatibility and System Integration

The GE CR215PEX01A works exclusively with GE Versatile Link transceivers. This cable connects the CR215 series fiber-optic interface modules. It also links remote I/O racks to the main PLC controller. The cable requires no configuration or programming for proper operation. Users can install this cable in any orientation without polarity concerns.

Mechanical Durability and Environmental Ratings

This fiber-optic cable withstands repeated bending without signal degradation. The minimum bend radius reaches 25 mm for long-term reliability. The jacket material resists oils, coolants, and mild acids. Operating temperature spans from -20°C to +70°C for factory use. The connectors endure 1,000 mating cycles without performance loss.

Parameter	Specification
Model	CR215PEX01A
Brand	GE (General Electric)
Category	Fiber-Optic Cable
Length	1.5 meters (1500 mm)
Fiber type	Plastic optical fiber (POF)
Fiber diameter	1.0 mm
Jacket material	Black polyethylene
Cable diameter	2.2 mm
Connector type	Versatile Link (snap-lock)
Number of connectors	2
Optical wavelength	650 nm (red LED)
Data rate support	Up to 10 Mbps
Attenuation per meter	0.2 dB
Connector insertion loss	1.5 dB maximum each
Total end-to-end loss	<1.8 dB (for 1.5m)
Maximum transmission distance	50 meters
Minimum bend radius	25 mm
Mating cycles durability	1,000 cycles
Weight	65 grams
Operating temperature	-20°C to +70°C
Chemical resistance	Oils, coolants, mild acids
Polarity sensitivity	None (orientation free)

Installation and Handling Notes

You must clean both connector ends before making any connection. Always push the connector until you hear a distinct snap sound. Then, route the cable away from sharp metal edges or hot surfaces. Do not pull on the cable jacket with excessive force. Regular inspection of connector end faces prevents dust-related signal loss over time.
