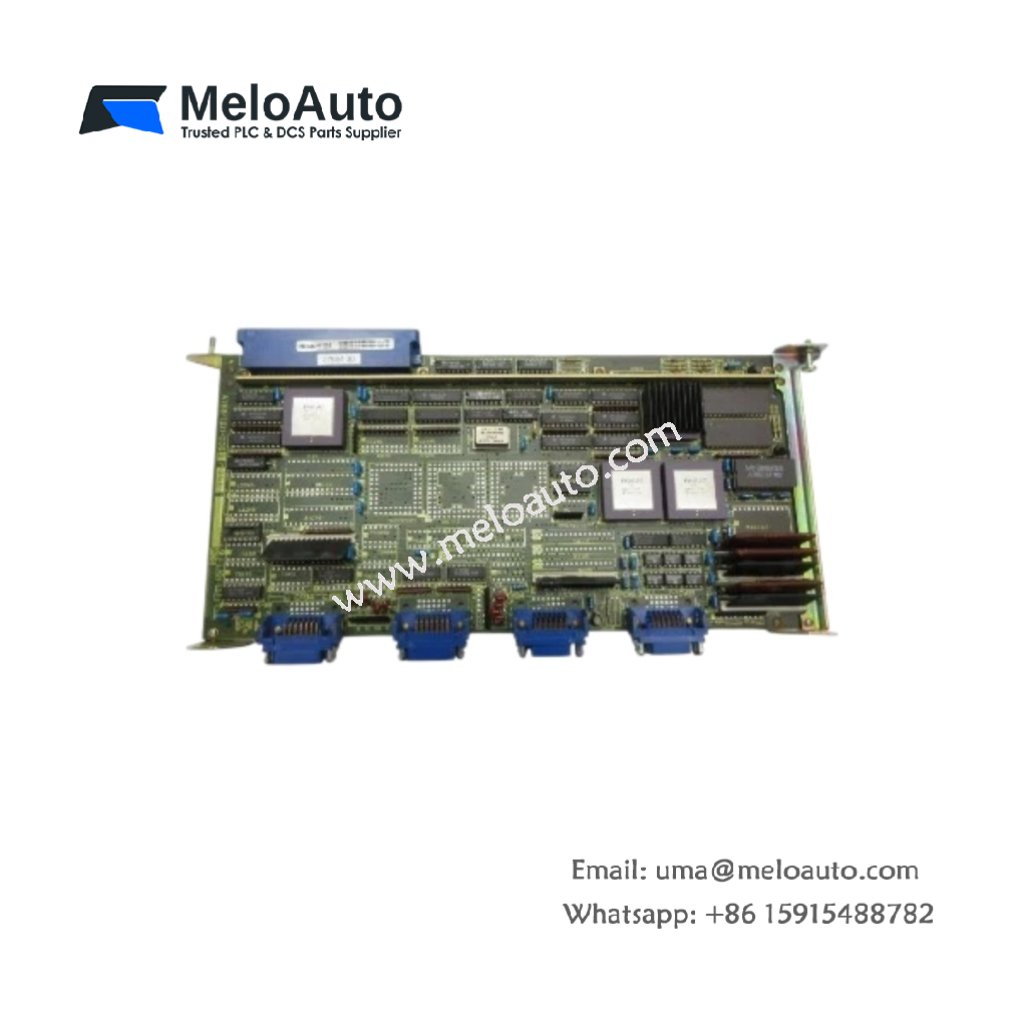

GE A16B-1211-0062/06B Axis Control Module

This axis control module generates position commands for servo drives. It manages up to three machine axes simultaneously. You will find this board in GE CNC systems for milling or turning applications.

Key Technical Specifications

Parameter	Details
Model Number	A16B-1211-0062/06B
Brand	GE (General Electric)
Category	Axis Control Module
Dimensions (W x H x D)	250 mm x 200 mm x 30 mm
Weight	540 grams
Controlled Axes	3 axes (X, Y, Z or custom)
Onboard Energy Storage	8 x 470 µF capacitors (3760 µF total)
Component Count	256 components including DSP and memory
Control Interface	40-pin flat ribbon to servo drives
Feedback Input	3 channels for incremental encoders
Processor	32-bit RISC @ 40 MHz

Physical Layout and Mounting

This module measures 250 mm in width and 200 mm in height. Its depth reaches 30 mm for compact rack integration. The unit weighs 540 grams, indicating a dense component layout. Four card guides secure the board inside a main CNC rack.

Internal Processing and Energy Storage

Two hundred fifty-six components populate this six-layer PCB assembly. Eight 470 µF capacitors form a 3760 µF energy storage bank. This bank supplies transient current to the onboard processor during heavy calculations. Consequently, the board maintains stable logic states even with noisy backplane power. A 32-bit RISC processor executes motion algorithms at 40 MHz clock speed.

Axis Control and Feedback Interface

The module generates position and velocity commands for three separate axes. You can assign axes as X, Y, Z or any custom configuration. A 40-pin ribbon cable carries step and direction signals to external servo drives. Three independent encoder channels accept feedback from motor-mounted pulse generators. Each channel includes differential line receivers for noise immunity over long cables.
