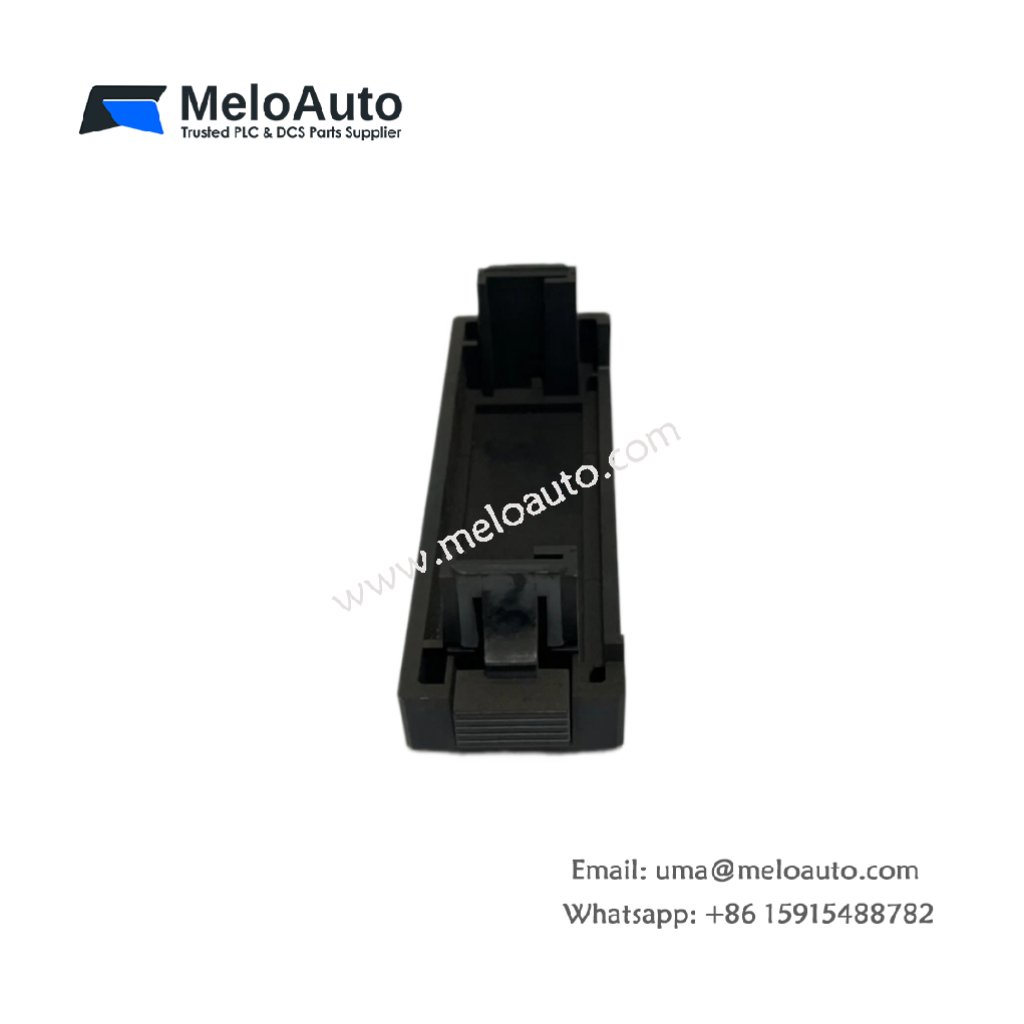

GE IC610MDL100A – Filler Module for Series One Racks

This filler module covers empty slots in Series One I/O racks. It prevents dust accumulation and maintains proper airflow through the chassis. You will use this unit to protect unused backplane connectors from contamination.

Key Technical Specifications

Physical Dimensions and Construction

This filler measures 127 mm in width and 89 mm in height. Its depth reaches 25 mm, matching standard Series One modules. The unit weighs only 85 grams due to the hollow plastic design. Two molded card guides snap into the rack channels securely.

Material Properties and Flame Rating

The ABS plastic body carries a UL94 V-0 flame retardant rating. This material resists ignition and self-extinguishes within 10 seconds. Consequently, the filler module adds no fire risk to your control cabinet. The light gray finish matches existing Series One I/O modules perfectly.

Purpose and Installation

This blank module occupies an unused slot in the I/O rack. It prevents dust, metal shavings, or moisture from entering the chassis. The filler also maintains even airflow across adjacent powered modules. Therefore, you avoid localized hot spots inside the rack. Simply slide the unit into any empty slot until the ejector tabs click.

Compatibility and System Benefits

The filler fits any Series One CPU or I/O rack with standard spacing. Using blank covers improves system reliability in dirty industrial environments. Uncovered slots can accumulate conductive dust that shorts backplane pins. Moreover, empty slots allow light to degrade plastic card guides over time. This inexpensive part protects your investment in the main rack hardware.
