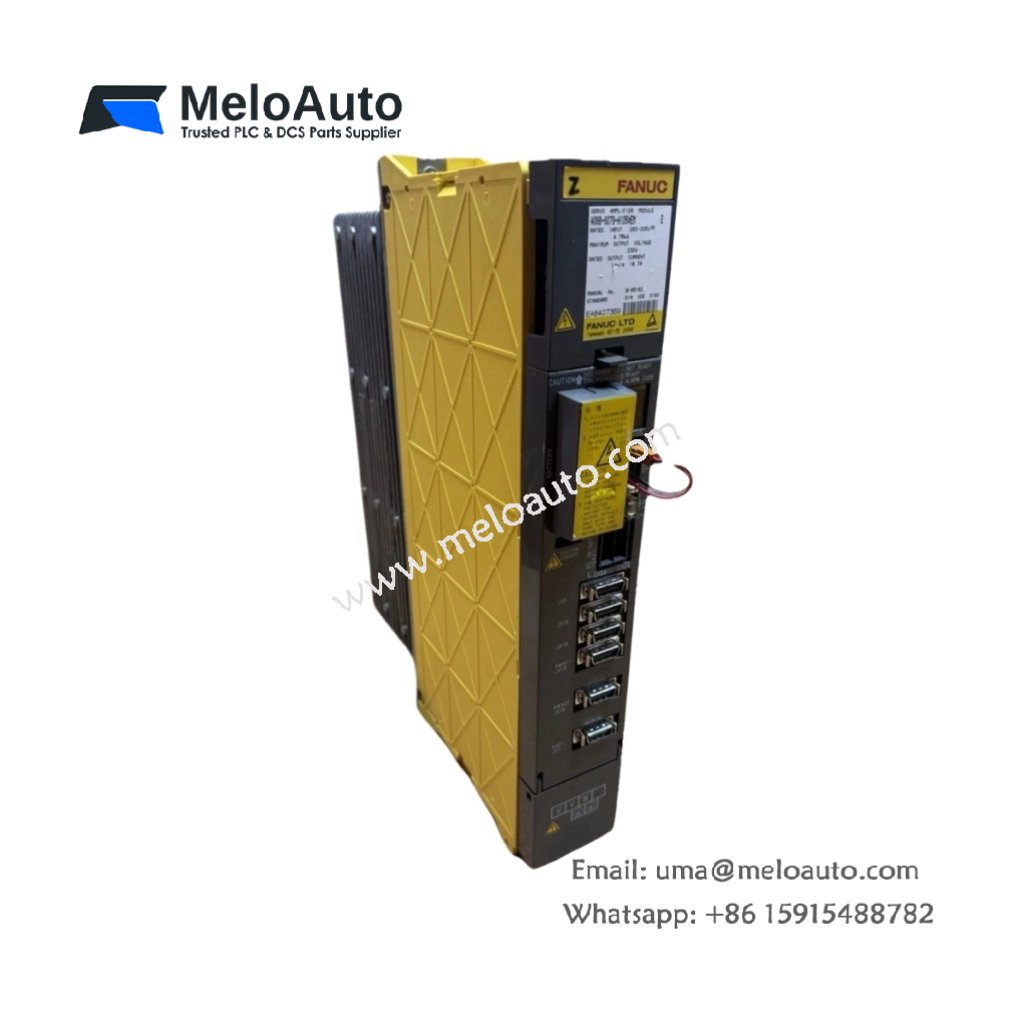

GE A06B-6079-H105#EM | Servo Amplifier

The GE A06B-6079-H105#EM provides precise servo motor control for industrial CNC machining. This amplifier module drives AC servo motors for axis positioning and velocity control. It delivers high torque and speed accuracy for demanding metalworking applications. Weighing only 2.8 kg, the GE A06B-6079-H105#EM mounts inside CNC control cabinets. Its dimensions measure 280 mm x 180 mm x 110 mm.

Power Specifications and Output Features

The GE A06B-6079-H105#EM delivers 7.5 kVA of output power for servo motor operation. This amplifier provides continuous current of 15 A and peak current of 30 A. It supports speed ranges from 0 to 6,000 RPM depending on motor type. Moreover, the GE A06B-6079-H105#EM includes built-in regenerative braking for rapid axis stopping. Consequently, you can achieve precise positioning and reduce cycle times.

Energy Storage and Protection Features

The GE A06B-6079-H105#EM contains large DC bus capacitors for energy storage and voltage smoothing. This amplifier includes over-current and over-temperature protection for reliable operation. It features short-circuit protection on all output phases to prevent damage. The GE A06B-6079-H105#EM draws 1.2 A from the 200-240 V AC three-phase supply. Therefore, it provides robust servo control while protecting itself from fault conditions.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	GE A06B-6079-H105#EM
Product Category	CNC Servo Amplifier Module
Input Voltage	200-240 V AC (three-phase)
Input Frequency	50 Hz or 60 Hz (±5%)
Output Power Rating	7.5 kVA maximum
Continuous Output Current	15 A
Peak Output Current	30 A (for 2 seconds)
Output Voltage	0-240 V AC (three-phase variable)
Output Frequency Range	0-400 Hz
Speed Range	0-6,000 RPM (motor dependent)
Control Method	Sinusoidal PWM with flux vector
Regenerative Braking	Built-in (internal resistor)
Feedback Type	Encoder or resolver (selectable)
Protection Features	Over-current, over-voltage, over-temperature, short-circuit
Cooling Method	Internal fan (variable speed)
DC Bus Capacitance (Energy Storage)	2,200 µF
LED Indicators	Power (green), Ready (green), Fault (red), Axis (yellow)
Current Consumption (Input)	1.2 A typical at 230 V AC
Number of Components	1 main PCB + 6 IGBTs + capacitors + fan + metal housing
Net Weight	2.8 kg (2,800 grams)
Gross Weight (packaged)	3.4 kg
Dimensions (W x H x D)	280 mm x 180 mm x 110 mm
Mounting Type	4 x M5 screws (panel mount)
Input Connector Type	Screw terminal block
Motor Connector Type	14-pin circular connector
Feedback Connector Type	9-pin SUB-D female
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +70°C
Humidity Tolerance	10% to 90% non-condensing
Certifications	CE, UL, CSA

Installation and Application Details

The GE A06B-6079-H105#EM mounts inside the CNC control cabinet using four M5 screws. Connect the 200-240 V AC three-phase input to the designated terminal block. Attach the motor power cable to the 14-pin circular connector on the front panel. Connect the feedback cable from the motor encoder to the 9-pin SUB-D port. The GE A06B-6079-H105#EM requires adequate ventilation space around the cooling fan. Do not block the air intake or exhaust vents during installation. This servo amplifier suits CNC milling machines, lathes, machining centers, and routers. It works perfectly for automotive parts manufacturing, aerospace machining, and general metalworking. Thus, the GE A06B-6079-H105#EM provides reliable axis control for demanding precision machining applications.
