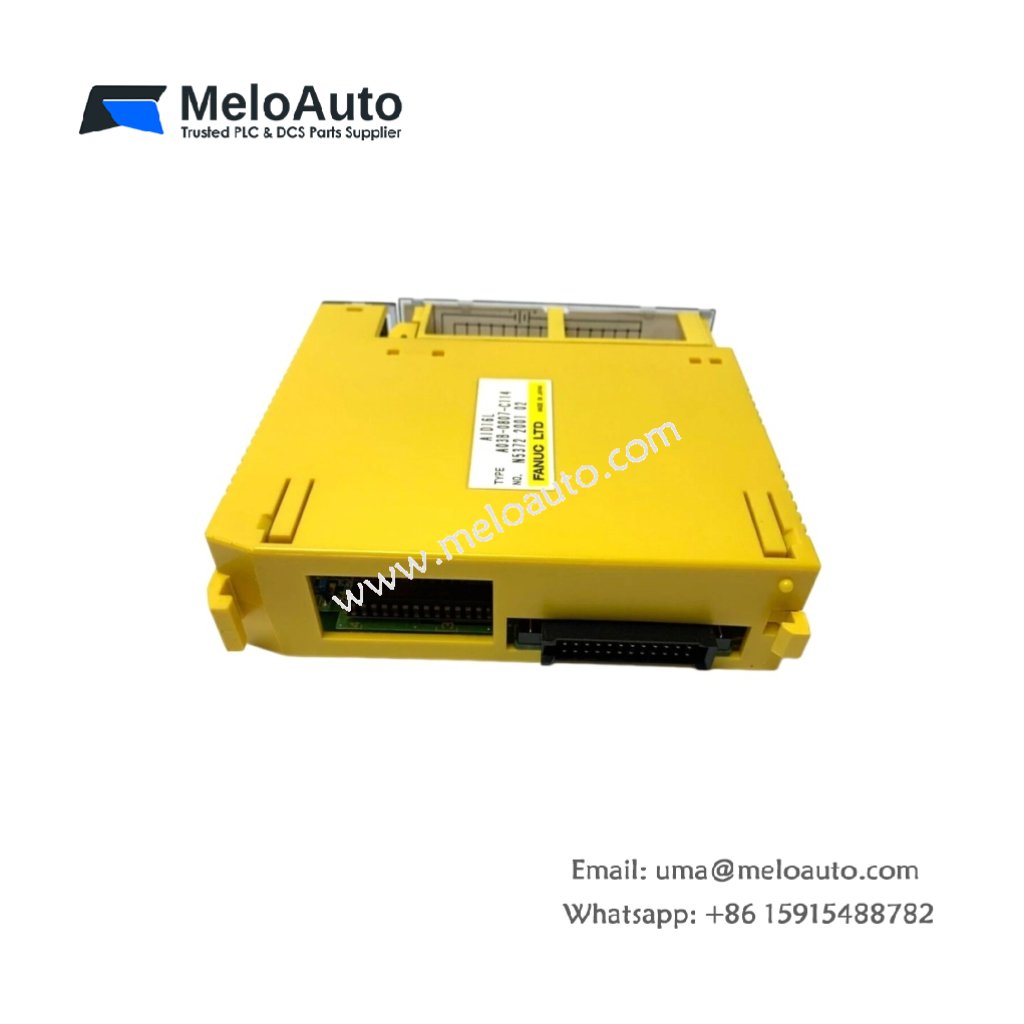

GE A03B-0807-C114: High-Density Input Module for PLC Systems

Core Function of This Input Module

The GE A03B-0807-C114 reads digital field signals from sensors and switches. This input module provides 16 discrete channels for machine interface applications. It converts 24 V DC field voltages into logic-level signals for the CPU. Consequently, the module enables real-time status monitoring of limit switches and push buttons.

Physical Dimensions and Board Layout

This input module measures 145 mm in total length. Its width reaches 90 mm for a compact Eurocard form factor. The board thickness stands at 25 mm including the front connector. You will find 142 discrete components on this single-sided PCB. These include optocouplers, filter capacitors, and current-limiting resistors. The GE A03B-0807-C114 weighs approximately 205 grams for easy installation.

Input Channels and Electrical Ratings

The GE A03B-0807-C114 offers 16 sinking input channels. Each channel accepts 24 V DC nominal from field devices. The input voltage range spans from 10 to 30 V DC continuously. Each channel draws 7 mA of current at 24 V DC. The module includes built-in debounce filtering for mechanical switch contacts. Eight LEDs indicate the status of the first eight input channels.

Input Thresholds and Response Times

This input module detects logic high at voltages above 15 V DC. Logic low occurs when the input voltage falls below 5 V DC. The typical turn-on delay reaches 1.5 milliseconds for clean signals. Turn-off delay also takes approximately 1.5 milliseconds for reliable operation. The debounce filter adds an additional 2 milliseconds for mechanical switches.

Optical Isolation and Noise Immunity

The GE A03B-0807-C114 uses optocouplers for each input channel. This design provides 1,500 V RMS isolation between field and logic sides. The module also includes RC filters for high-frequency noise rejection. Common mode noise rejection reaches 50 V per microsecond. Each input channel withstands continuous reverse polarity connection without damage.

Interface Connectors and Wiring Details

A single 20-pin ribbon cable header connects this module to the controller. Additionally, one 20-pin terminal block accepts field device wiring. Each terminal accepts wire gauges from 0.2 to 1.5 mm². The board also includes a 4-pin power header for the field supply return. Gold-plated contacts ensure reliable connections in industrial environments.

Energy Storage and Power Requirements

The GE A03B-0807-C114 draws 120 mA from a 5 V DC logic supply. It also requires 30 mA from a separate 24 V DC field supply. Each active input adds 7 mA to the field supply load. The board incorporates three 47 µF electrolytic capacitors for power filtering. Total stored energy reaches approximately 0.03 joules at nominal voltage.

Installation and Compatibility Notes

You must mount this module in a GE Series 90-30 or Fanuc PLC rack. Always connect the field supply common to the module’s return terminal. Then, verify that each input voltage does not exceed 30 V DC. The module provides optical isolation for all 16 input channels. Regular inspection of terminal screws prevents intermittent signal loss over time.
