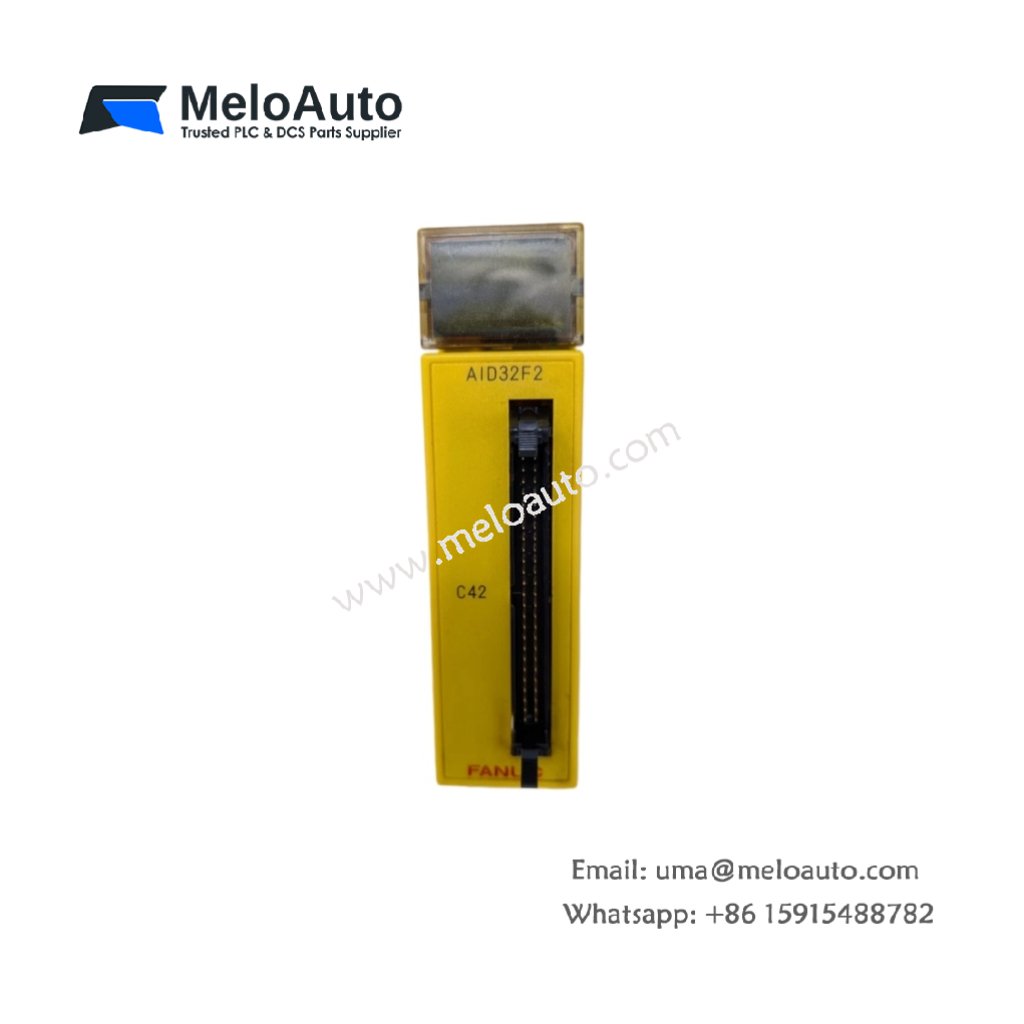

GE A03B-0807-C109 Digital Input Module for GE Fanuc CNC Systems

The GE A03B-0807-C109 captures discrete field signals from machine tools and sensors. You can install this module directly into GE Fanuc CNC control racks. It accepts 24 V DC signals from pushbuttons, limit switches, and proximity sensors. This unit suits machining centers, lathes, and robotic applications.

Technical Specifications and Hardware Layout

This digital input module measures 260 mm in height. Its width reaches 120 mm, and the depth equals 45 mm. The GE A03B-0807-C109 weighs approximately 0.48 kilograms. A single internal PCB holds all input filtering and isolation circuits. The module provides thirty-two channels for 24 V DC sinking inputs. It stores no energy in capacitors or internal batteries. One 96-pin front connector handles all field wiring connections. Thirty-two green LEDs display the real-time status of each channel.

Input Specifications and Electrical Performance

The GE A03B-0807-C109 accepts input voltages from 0 V to 30 V DC. It recognizes a logic “1” at 15 V DC or higher. A logic “0” occurs below 5 V DC reliably. Each channel draws a typical input current of 6 mA at 24 V DC. The module groups the thirty-two channels into four isolated blocks of eight. Consequently, each group can connect to a different reference potential. Optical isolation separates each group from the CNC backplane logic. An internal RC filter debounces input signals with a 2 ms time constant.

Installation and Practical Application Tips

You must insert this module firmly into a dedicated CNC rack slot. Transitioning to wiring, use 0.5 mm² to 1.5 mm² stranded copper wire. The screw-type terminals require a 3 mm flathead screwdriver for tightening. For high-noise environments, use shielded cables for all input signals. Always power off the CNC before removing or inserting the module. The operating temperature range spans from 0°C to 55°C reliably.
