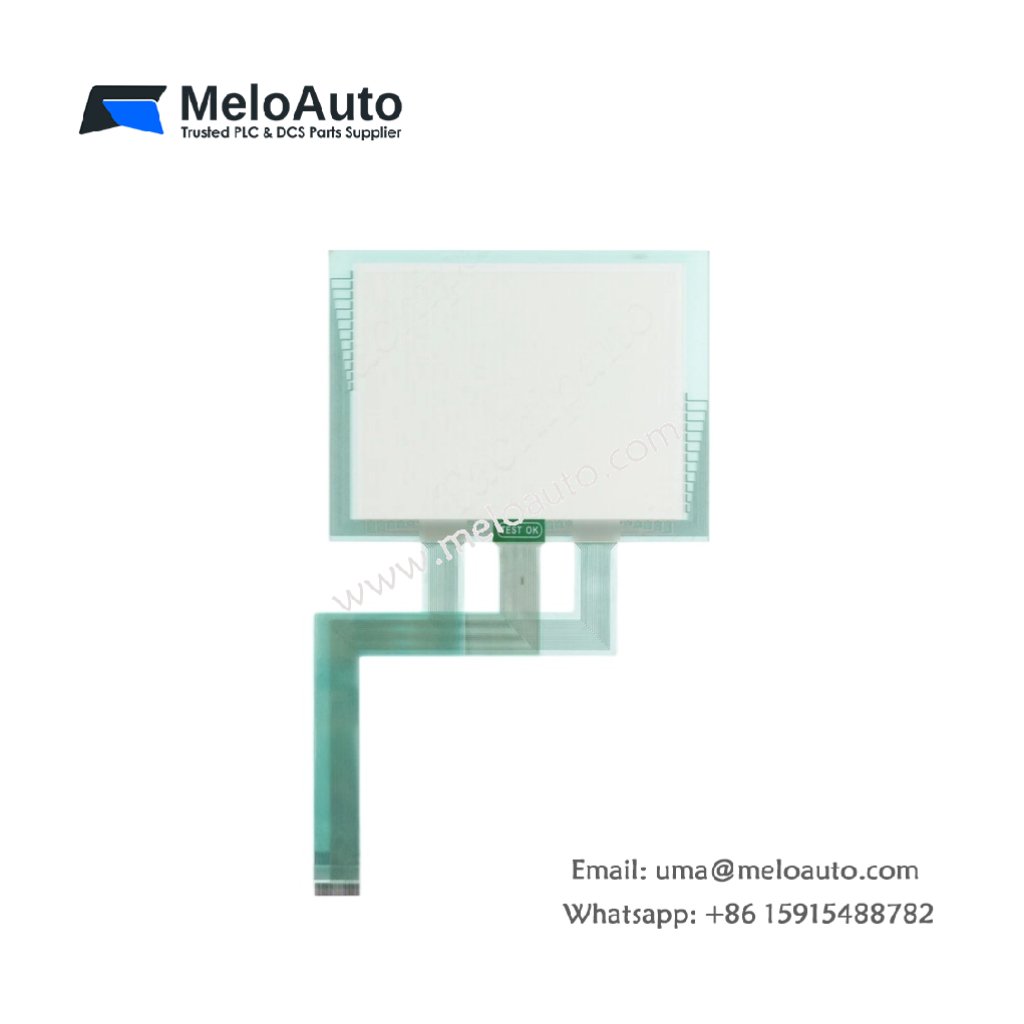

The GE QPI-2D100-C2P provides a graphical user interface for QuickPanel series HMIs. You can mount this unit into a standard industrial control panel cutout. It displays machine status and process data on a bright color screen. This interface accepts touch commands and function key inputs from operators.
Technical Specifications and Hardware Layout
This operator interface measures 150 mm in height. Its width reaches 210 mm, and the depth equals 55 mm. The GE QPI-2D100-C2P weighs approximately 1.2 kilograms. A single internal PCB holds all display and processing circuits. The unit contains no energy storage capacitors or batteries. One 15-pin D-sub connector provides the serial interface to the PLC. Two USB ports allow connection to external keyboards and memory drives. A 10-inch color TFT LCD dominates the front panel surface.
| Parameter | Specification |
|---|---|
| Model | GE QPI-2D100-C2P |
| Category | Operator Interface |
| Dimensions (H x W x D) | 150 mm x 210 mm x 55 mm |
| Weight | 1.2 kg |
| Internal PCBs | 1 |
| Energy Storage | None |
| Display Size | 10 inches (color TFT) |
| PLC Interface | 15-pin D-sub (serial) |
| USB Ports | 2 |
| Power Input | 24 V DC terminal |
Display Specifications and User Interface
The GE QPI-2D100-C2P features a 10-inch TFT color LCD with 640 x 480 resolution. This screen shows 256 colors for clear graphical representation. Touch sensitivity uses resistive technology for gloved hand operation. You will find five function keys below the display for quick navigation. Consequently, operators can enter data and monitor processes easily. The panel provides configurable screen brightness from 0 to 100 percent. A contrast potentiometer on the rear allows fine display adjustment.
Installation and Communication Guidelines
You must mount this panel using four M4 screws through the front bezel. Transitioning to wiring, use a 24 V DC power supply rated at 1 A minimum. The panel supports serial protocols including Modbus RTU and GE SNP. A DIP switch block sets the communication parameters easily. Two LEDs indicate power status and data exchange activity. The operating temperature range spans from 0°C to 50°C reliably.
