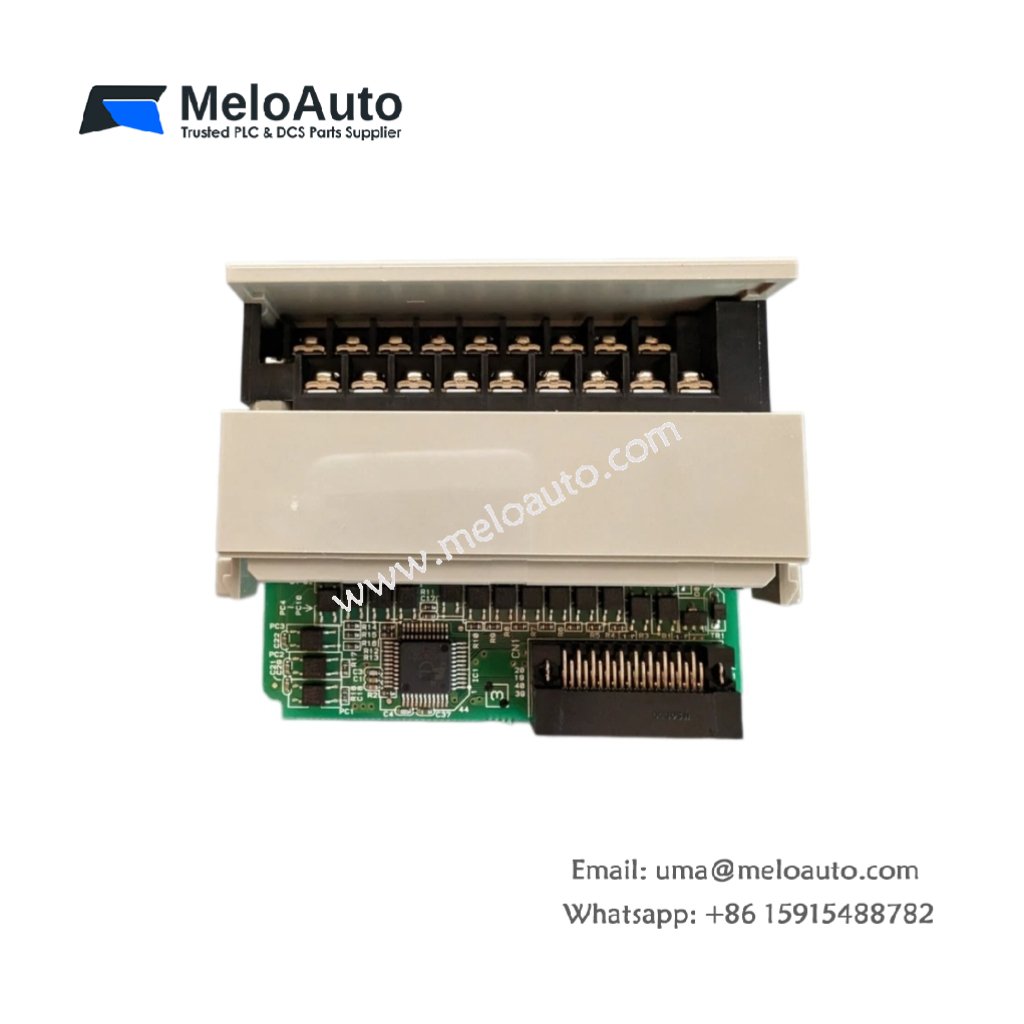

FUJI NV1Y16R-08 Relay MICREX-F | 16 Outputs

This relay output module provides discrete control for Fuji MICREX-F PLC systems. The FUJI NV1Y16R-08 features sixteen independent relay output channels in a compact form. Each relay switches 2A at 24V DC or 250V AC for driving contactors and solenoids. Consequently, automation engineers can control multiple field devices from a single module.

Technical Specifications of the Relay MICREX-F

The FUJI NV1Y16R-08 measures 90 mm in width and 70 mm in height. Its depth reaches 56 mm for standard DIN rail mounting. The module weighs approximately 0.28 kg including all relay and isolation components. A single front panel LED array shows the on-off status for each output channel. The top side features a removable screw terminal block for field wiring connections. This design stores minimal energy in small suppression components only. Therefore, the module contains no batteries or large capacitors.

Parameter	Specification
Brand	Fuji Electric
Full Model	NV1Y16R-08
Category	Relay MICREX-F (Output Module)
Dimensions (W x H x D)	90 mm x 70 mm x 56 mm
Weight	Approximately 0.28 kg
Output Channels	16 independent relays
Contact Form	SPST-NO (1 Form A per channel)
Contact Rating	2A at 24V DC or 250V AC
Response Time	10 ms typical
Mechanical Life	20 million operations
Electrical Life	100,000 operations at rated load
Terminal Type	Removable screw blocks
Energy Storage	Minimal (suppression only)
Supply Voltage	24V DC from bus

Functional Features and Relay Protection

The FUJI NV1Y16R-08 includes built-in surge suppression across each relay coil. You can connect AC or DC loads without external protection devices. The module automatically reports coil faults and circuit failures to the main controller. Each relay also features a green LED indicator for visual status verification. Consequently, maintenance teams can identify active outputs instantly without meters.

Installation and System Integration

You must mount this relay module on standard 35mm DIN rail. The FUJI NV1Y16R-08 connects to the MICREX-F bus via a rear expansion connector. A removable terminal block accepts field wiring from 14 to 22 AWG. The module supports hot replacement without powering down the entire system. Always verify load current limits before connecting multiple devices to one relay.

Maintenance and Operational Benefits

Because the FUJI NV1Y16R-08 stores no battery-backed data, it needs no periodic battery changes. Technicians can replace the module without losing any configuration settings. The transparent terminal cover prevents accidental contact with live output wires. Consequently, this relay output module offers safe and simple maintenance for MICREX-F control systems.
