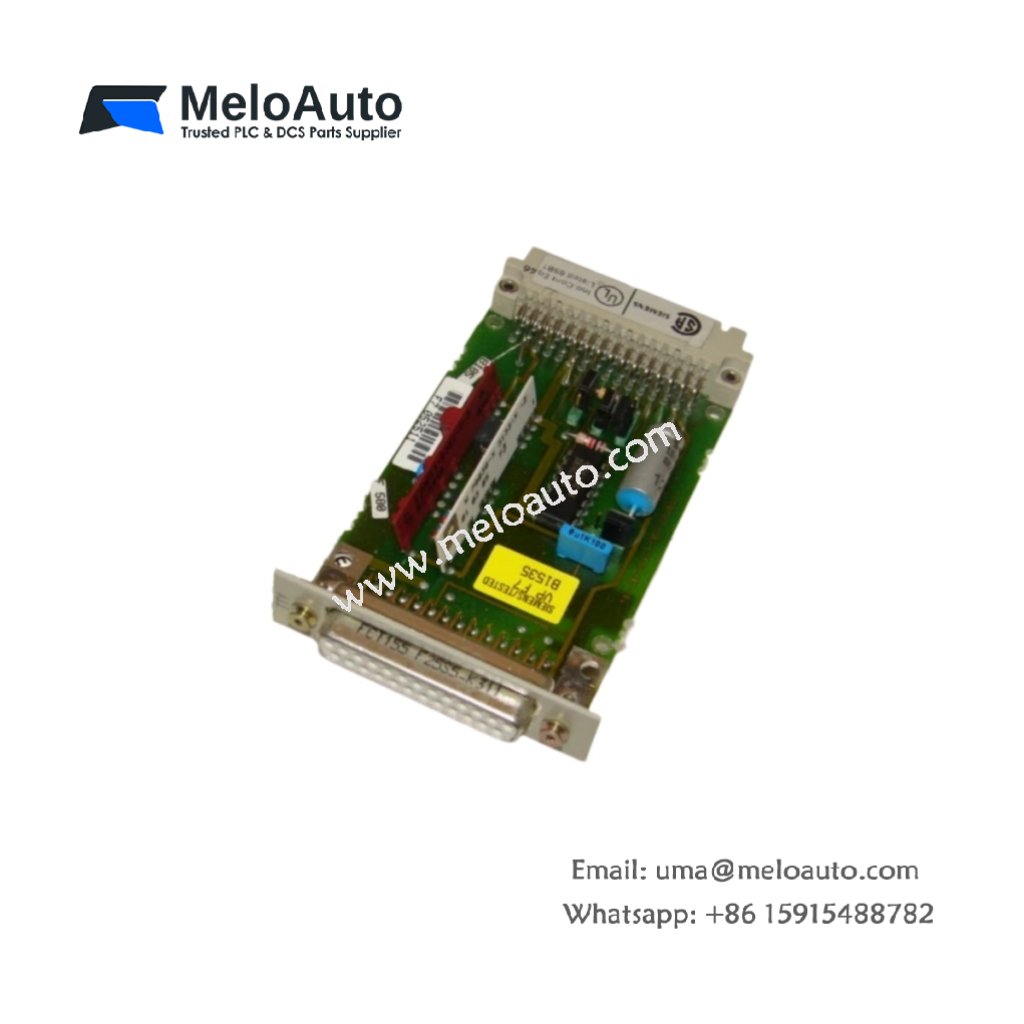

The Siemens 6ES5752-0AA12 links your S5-150U CPU to remote expansion racks. This interface module manages data flow between central and distributed I/O stations. It fits directly into the bus unit of a SIMATIC S5 system.
Technical specifications of Siemens 6ES5752-0AA12
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | Siemens 6ES5752-0AA12 |
| Product Family | SIMATIC S5 |
| Sub-Family | S5-150U / S5-155U |
| Category | Interface Module (IM 312) |
| Compatible Racks | EG 183U, EG 185U expansion racks |
| Communication Bus | SINEC L2 / PROFIBUS (RS-485) |
| Power Supply | 24V DC from backplane |
| Current Consumption | 200 mA typical |
| Number of Connectors | 1 x 9-pin D-sub (RS-485) |
| Maximum Cable Length | 100 meters between racks |
| Maximum Nodes | 32 devices per segment |
| Number of Components | 1 PCB, 1 connector, 4 status LEDs |
| Dimensions (L x W x H) | Approx. 23 cm x 10 cm x 4 cm |
| Weight | Approx. 0.4 kg |
| Energy Storage | None (no battery or capacitor) |
| Operating Temperature | 0°C to 60°C |
Detailed Technical Analysis
The Siemens 6ES5752-0AA12 uses the SINEC L2 bus protocol for reliable communication. This module connects your central CPU to up to 32 remote nodes. It supports cable runs as long as 100 meters between racks. Therefore, you can place I/O stations close to the actual machinery.
Now let us examine its power characteristics. The Siemens 6ES5752-0AA12 draws all its energy from the S5 backplane. It consumes only 200 milliamps at 24V DC. Consequently, you do not need any separate power wiring for this module. The unit contains no batteries or capacitors whatsoever.
The module features four status LEDs on its front panel. These indicators show power, bus activity, and error conditions. The Siemens 6ES5752-0AA12 uses a standard 9-pin D-sub connector for the field bus. This connector type remains common across many industrial networks.
Installation and Compatibility Notes
You mount the Siemens 6ES5752-0AA12 into the bus unit of an S5-150U rack. This module works perfectly with EG 183U and EG 185U expansion racks. Simply insert the card into any available slot. The system then recognizes the interface automatically during startup.
For reliable communication, use shielded twisted-pair cable for all bus connections. The Siemens 6ES5752-0AA12 supports both SINEC L2 and early PROFIBUS protocols. Terminate both ends of the bus cable to prevent signal reflection. This practice ensures error-free data transmission across long distances.
Practical Applications
Engineers use this module for distributed I/O in large manufacturing plants. For example, you can place one S5-150U CPU in a central control room. Then connect multiple Siemens 6ES5752-0AA12 modules to remote racks on the factory floor. This setup dramatically reduces expensive sensor cabling.
Summary
To conclude, the Siemens 6ES5752-0AA12 connects your S5-150U to remote I/O racks. It supports 32 nodes over 100-meter cable runs and weighs 0.4 kilograms. Choose this interface module for reliable distributed control in legacy systems.
