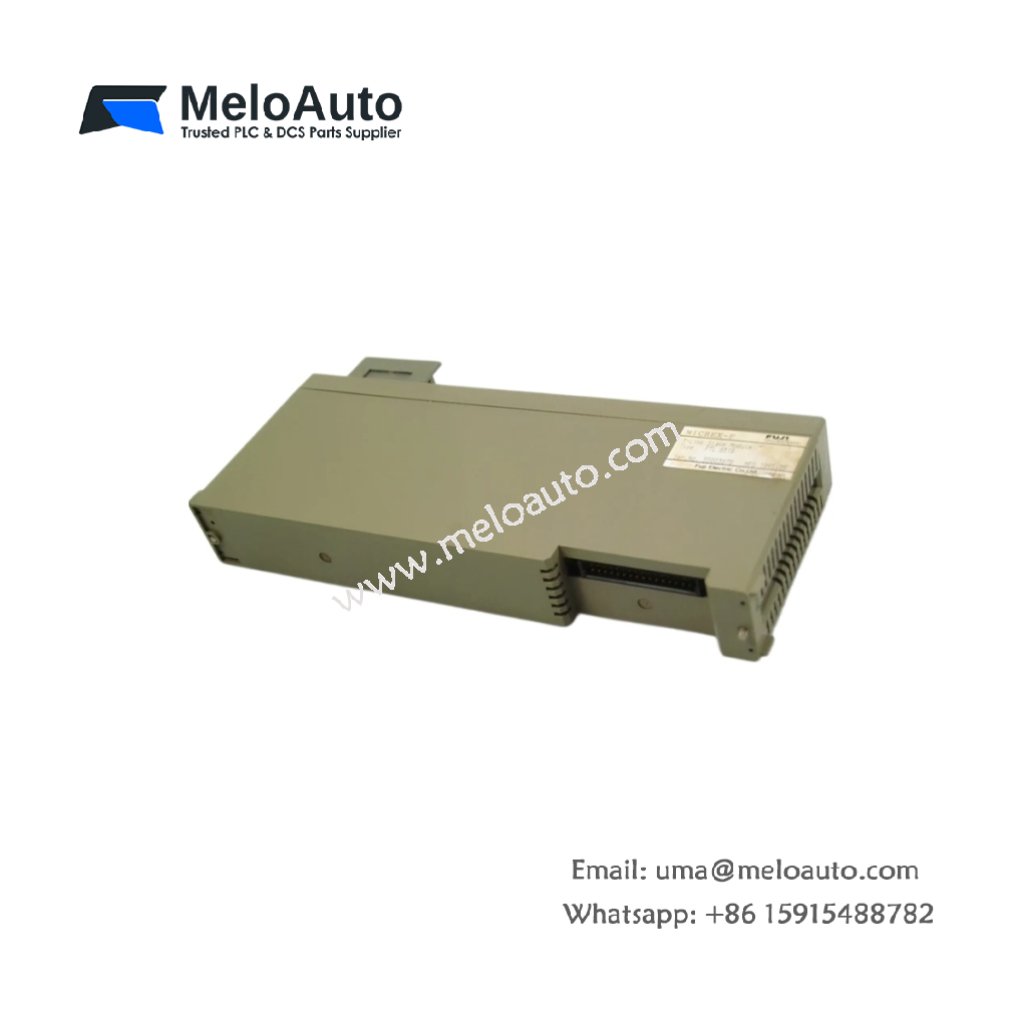

Fuji FTL651B T-Link Slave Module | MICREX-SX Remote I/O

Compact Remote I/O for Distributed Systems

This slave module connects field devices to your T-Link network efficiently. The Fuji FTL651B communicates with a T-Link master module over long distances. It provides 16 digital inputs and 16 digital outputs for local machine control. A built‑in status LED indicates normal communication with the master station. Consequently, this module eliminates expensive home‑run wiring from remote sensors.

I/O Configuration & Network Specifications

The Fuji FTL651B accepts 24V DC signals from standard industrial sensors. You can mount this module up to 200 meters from the master station. A rotary switch on the front panel sets the slave station address easily. The module automatically synchronizes its I/O data during network startup. Therefore, installation requires no complex software configuration.

Parameter	Detailed Specification
Operating Temperature	0°C to +55°C
Storage Temperature	-20°C to +70°C
Humidity Range	20% to 95% RH (no condensation)
Digital Inputs	16 points (24V DC, sink/source)
Digital Outputs	16 points (24V DC, 0.5A per point)
Total I/O Points	32 points
Network Type	T-Link (slave device)
Communication Distance	200 meters max
Transmission Speed	1 Mbit/s
Address Setting	Rotary switch (1 to 64)
Status LEDs	3 (POWER, LINK, ERROR)
Connector Type	2 x 20‑pin terminal blocks
Power Supply	24V DC (external)
Current Draw	120 mA typical
Energy Storage	None (no battery or capacitor)

Installation & Field Wiring

You mount the Fuji FTL651B on a standard DIN rail inside a control cabinet. Connect the 24V DC power supply to the dedicated power terminals. Wire your sensors to the input terminals and actuators to the output terminals. Then connect the T-Link network cable to the communication port. Finally, set the station address using the front rotary switch.

Operational Advantages & Remote Deployment

The Fuji FTL651B operates reliably in harsh industrial environments. You can place this slave module near conveyors, packaging machines, or assembly stations. The LINK LED illuminates green when communication with the master remains active. The module continues normal operation even if other slaves lose connection. Therefore, this Fuji remote I/O module provides robust distributed control for large facilities.
