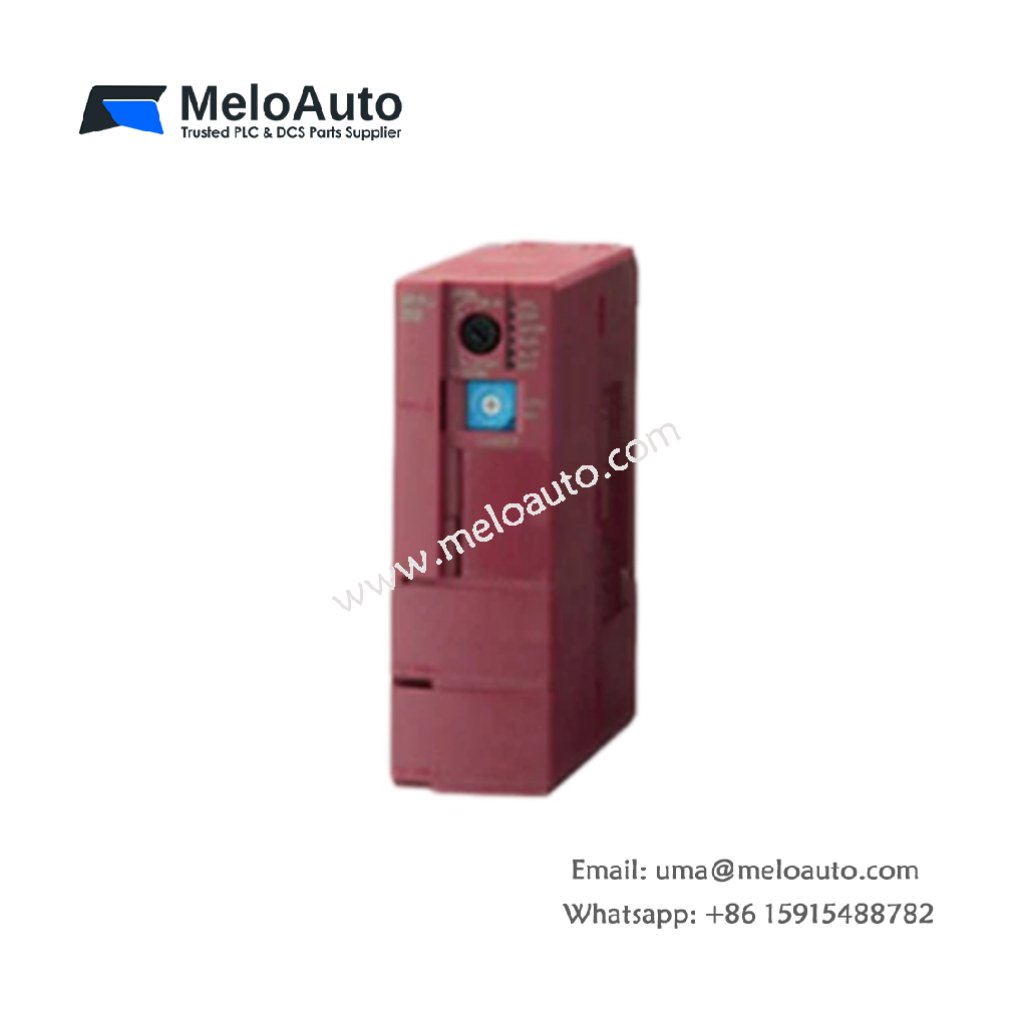

Fuji FEH241 Positioning Control Module

The Fuji FEH241 provides accurate positioning for motion control systems. This module integrates smoothly into existing automation setups. It manages servo drives and stepper motors effectively. Engineers trust this unit for repeatable positioning tasks.

Technical Specifications of FEH241

Below you will find the detailed technical parameters. These values ensure proper system integration.

Parameter	Specification
Dimensions (W x H x D)	85 mm x 120 mm x 45 mm
Weight	0.35 kg
Number of Control Axes	1 axis
Digital Inputs	4 channels, 24V DC
Digital Outputs	2 channels, relay type
Position Feedback Interface	Incremental encoder (5V TTL)
Internal Energy Storage	2200 µF capacitor
Operating Voltage	24V DC ±10%
Power Consumption	5 W typical

Physical and Interface Details

The module weighs only 0.35 kg for easy mounting. Its compact size fits standard DIN rails. Four digital inputs accept 24V DC signals. Two relay outputs switch external loads directly. One encoder interface reads position feedback accurately. A 2200 µF capacitor stores enough energy for brief power dips.

Performance and Application Notes

This positioning module controls a single motion axis precisely. It uses incremental encoders for real‑time feedback. The unit consumes just 5 watts during normal operation. Therefore, it produces very little heat. This design suits packaging machines or simple pick‑and‑place systems. Always verify encoder compatibility before installation.

Installation and Compatibility

Mount the Fuji FEH241 on a standard 35 mm DIN rail. Keep the ambient temperature between 0°C and 55°C. Ensure the 24V DC supply can deliver at least 0.5 A. Then connect your encoder wires carefully. The module works with most Fuji servo drives. For other brands, check the signal level first.
