Siemens 6ES5241-1AA11 Position Decoder

Technical Specifications and Decoder Design

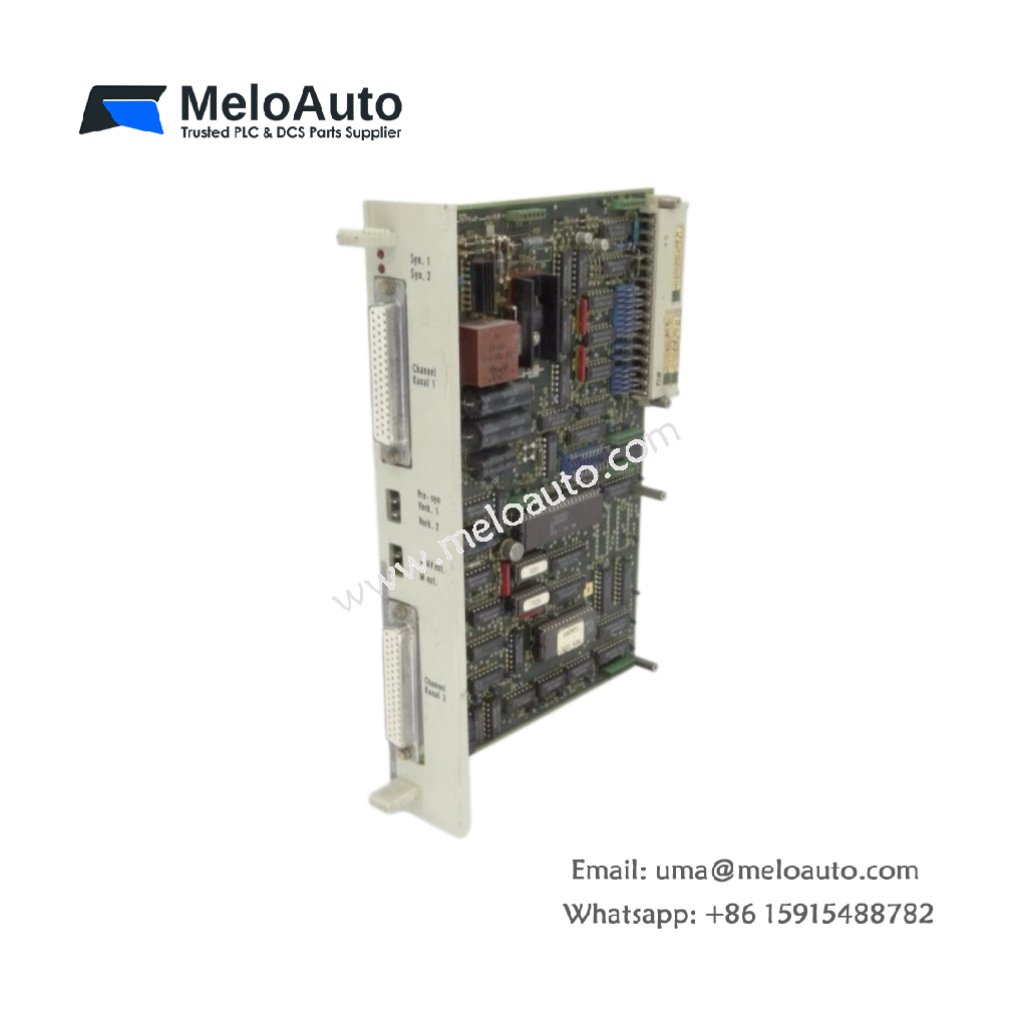

This digital position decoder module processes incremental encoder signals for SIMATIC S5 systems. The Siemens 6ES5241-1AA11 converts shaft rotation into precise position values for the CPU. You can install this unit into any standard S5-115U or S5-135U rack slot. Its dedicated hardware handles high-speed counting without scan cycle delays. The module weighs approximately 0.48 kilograms. Its dimensions measure 25 cm in height, 5 cm in width, and 21 cm in depth.

Parameter	Specification
Brand	Siemens
Model	6ES5241-1AA11
Category	Digital Position Decoder Module / Encoder Interface
Weight	0.48 kg
Height	25 cm
Width	5 cm (single slot)
Depth	21 cm
Number of Channels	2 independent decoder channels
Encoder Input Type	5V differential (RS-422) or 24V push-pull
Maximum Input Frequency	50 kHz per channel
Position Resolution	24-bit (0 to 16,777,215 counts)
Counter Size	16 or 24 bits (selectable)
Input Voltage Range	5V DC (differential) or 11-30V DC (push-pull)
Reference Input	1 per channel (latch/probe)
Output Type	Transistor (sourcing), 0.5A max per channel
Response Time	0.5 milliseconds typical
Energy Storage	None (no battery)
Component Count	Single PCB with counters, optocouplers, and input conditioning

Decoder Modes and Position Tracking

Each channel operates in incremental encoder or pulse direction mode. The Siemens 6ES5241-1AA11 accepts A, B, and reference marker signals from encoders. You can select 1x, 2x, or 4x evaluation of the quadrature signals. The module stores the current position value in non-volatile memory. Consequently, the module retains position even after power loss. A hardware latch input captures position instantly without software delays. This latch responds within 1 microsecond to the external trigger signal.

Encoder Compatibility and Signal Processing

The module accepts both 5V differential RS-422 and 24V push-pull encoder outputs. Each channel provides a 5V DC output for encoder power supply. The Siemens 6ES5241-1AA11 filters input signals to remove electrical noise. Built-in debouncing circuits prevent false counts from contact bounce. The module indicates encoder connection status through front-panel LEDs. A green LED shows power present, while a yellow LED indicates signal activity. The module automatically detects the encoder type during configuration.

Installation and Wiring Guidelines

You must insert this module into any standard S5 I/O rack slot. The backplane supplies 5V DC and 24V DC power automatically. The Siemens 6ES5241-1AA11 uses a front-panel screw terminal strip for encoder wiring. You must use shielded twisted-pair cables for all encoder connections. This practice prevents electrical noise from corrupting position data. The module draws approximately 200 mA from the 5V supply rail. It requires no external power supply for normal operation.
