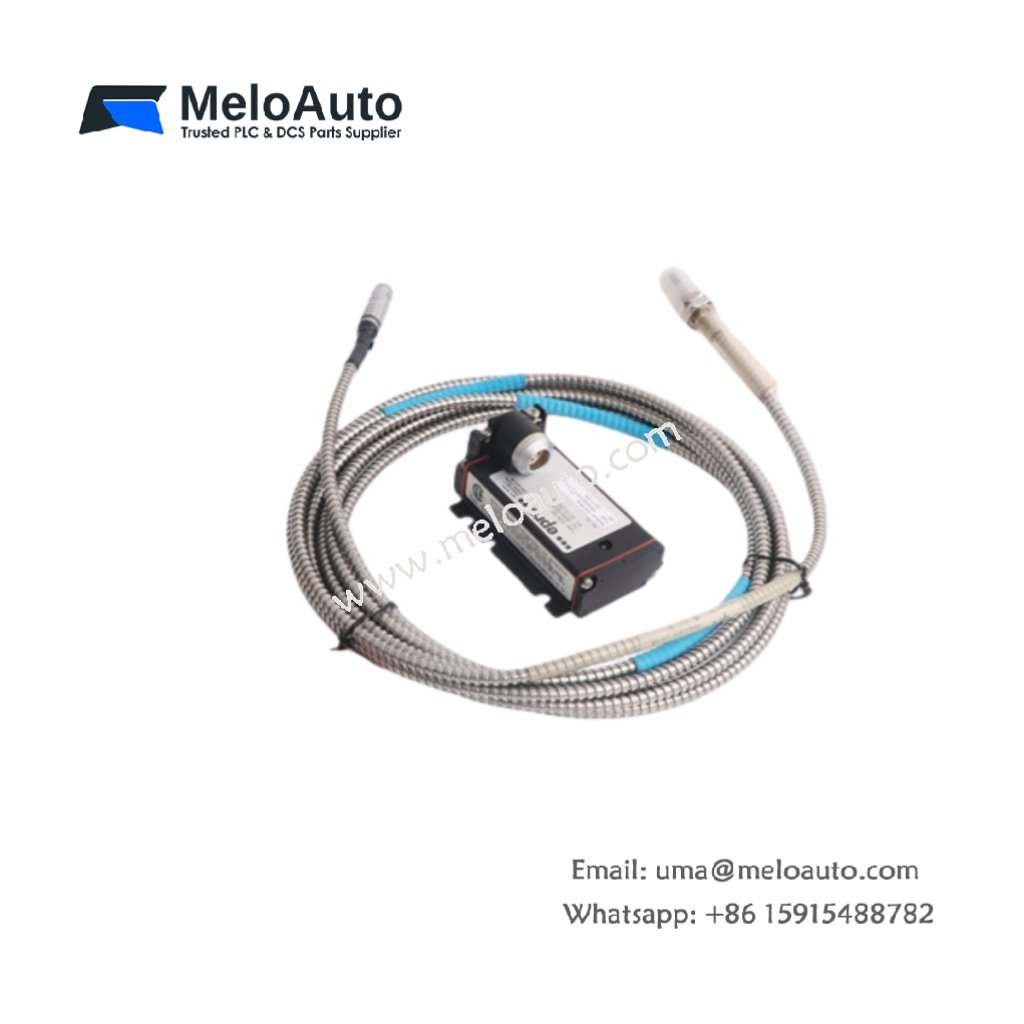

EPRO PR6423/290-110 Eddy Current Transducer for Precise Vibration and Displacement Monitoring

Overview

The EPRO PR6423/290-110 is a highly efficient eddy current transducer designed for measuring mechanical parameters such as displacement and vibration. This sensor works without physical contact, ensuring longevity and reducing wear. It’s ideal for applications in rotating machinery, turbomachinery, and other industrial settings.

Thanks to its compact size and rugged design, the EPRO PR6423/290-110 can operate reliably in harsh environments. It offers exceptional performance in vibration monitoring, eccentricity detection, and shaft displacement measurement. Moreover, it is suitable for a wide range of applications including bearing wear monitoring and oil film thickness measurements.

Key Features

• Non-Contact Measurement: With eddy current technology, the sensor detects the distance without any physical contact with the shaft. This prevents wear and extends the sensor’s life.
• High Accuracy & Sensitivity: The sensor provides precise vibration and displacement data, which helps maintain operational efficiency and reduce downtime.
• Wide Temperature Range: Operating between -40°C and +150°C (-40°F to 302°F), this sensor performs well in extreme environmental conditions.
• IP66 Rated: The EPRO PR6423/290-110 resists dust and water ingress, ensuring it remains durable even in the most demanding environments.
• Easy Installation: Its reverse mount design simplifies installation in tight spaces, making it versatile for various setups.
• Factory-Calibrated: The sensor is calibrated at the factory, so you don’t need to perform on-site calibration. Adjusting the gap is sufficient to achieve the desired signal.
• 4-20 mA Output: The sensor uses a 4-20 mA DC output, ensuring compatibility with most control systems.

Technical Specifications

Applications

The EPRO PR6423/290-110 is perfect for various applications in rotating machinery, including:

• Clearance Monitoring: Accurately measure gaps between rotating and stator parts to prevent damage.
• Vibration Monitoring: Detect vibrations early in rotating components to minimize wear and avoid failure.
• Dynamic Motion & Eccentricity Detection: Track shaft motion and eccentricity for optimal performance.
• Shaft Deformation Monitoring: Monitor changes in shaft shape due to stress or wear.
• Bearing Wear Monitoring: Continuously check thrust bearings to prevent premature failure.
• Oil Film Thickness Measurement: Measure lubrication film thickness between rotating parts for effective lubrication control.
• Differential Expansion Monitoring: Track temperature-induced expansions to ensure machine integrity.
• Valve Position Monitoring: Measure valve position to ensure proper operation in control systems.

Operating Principle

The EPRO PR6423/290-110 uses a signal converter that creates an oscillator circuit. As a metallic object approaches the sensor, the oscillation amplitude dampens. This damping effect correlates with the distance between the sensor and the object, allowing precise measurement of displacement or vibration.
