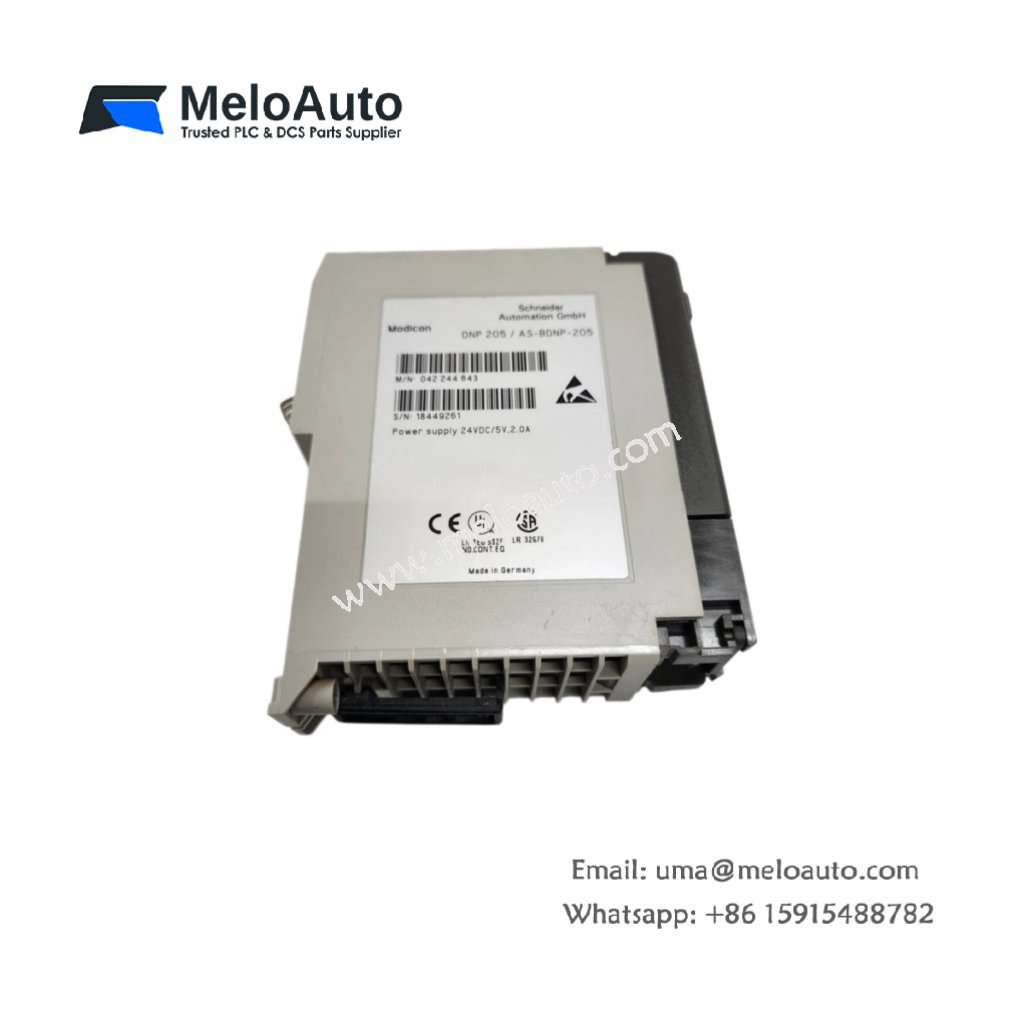

Schneider ASBDNP205 Power Supply

The ASBDNP205 provides regulated DC power for Schneider PLC systems. This unit converts 120V AC input into stable 24V DC output. Its rectangular frame measures 105 millimeters in width. The module height reaches 90 millimeters exactly. Depth stays at 65 millimeters. You will find this unit weighs approximately 0.55 kilograms. Therefore, installation requires only a standard DIN rail clip. One 4-position terminal block handles both input and output wiring.

Physical Layout and Connectors

The terminal block accepts wires up to 14 AWG gauge. Two screw terminals receive the AC input connection. Two more terminals deliver the regulated DC output voltage. A green LED indicates power present on the output. A red LED lights up during overload or short circuit conditions. Four mounting tabs secure the unit to TS35 DIN rails securely.

Technical Specifications

Parameter	Specification
Module Width	105 mm
Module Height	90 mm
Module Depth	65 mm
Unit Weight	0.55 kg
Input Voltage	120V AC (85–132V range)
Output Voltage	24V DC ±2%
Output Current	5A (continuous)
Terminal Block	1 x 4-position (14 AWG)
Component Total	98 discrete parts
Internal Energy Storage	2200 µF capacitor bank
Efficiency	86% at full load
Ripple & Noise	< 50 mV peak-to-peak
Hold-up Time	25 ms at full load
Operating Temperature	-10°C to +60°C

Internal Design and Energy Storage

The ASBDNP205 contains exactly 98 discrete components inside. A 2200 microfarad capacitor bank stores energy for output smoothing. This bank provides 25 milliseconds of hold-up after input loss. A flyback converter topology achieves high efficiency across load ranges. The unit includes overcurrent protection with automatic restart. An optocoupler provides feedback isolation between primary and secondary sides.

Operational Performance

This power supply accepts universal AC input from 85 to 132 volts. It delivers regulated 24V DC at up to 5 amperes continuously. Moreover, the unit includes short circuit protection on the output. You can parallel multiple units for higher total current output. The module operates at 86% efficiency, minimizing waste heat. Two LEDs provide clear visual status indication for troubleshooting. Consequently, you achieve reliable power distribution for PLC racks. Schneider designed this supply for industrial control cabinets. Its convection cooling requires no external fan for operation.

In summary, the ASBDNP205 delivers clean and stable DC power. Use this unit for Modicon or other Schneider PLC systems. It ensures your controllers receive noise-free operating voltage. Order this power supply for your industrial automation panel.
