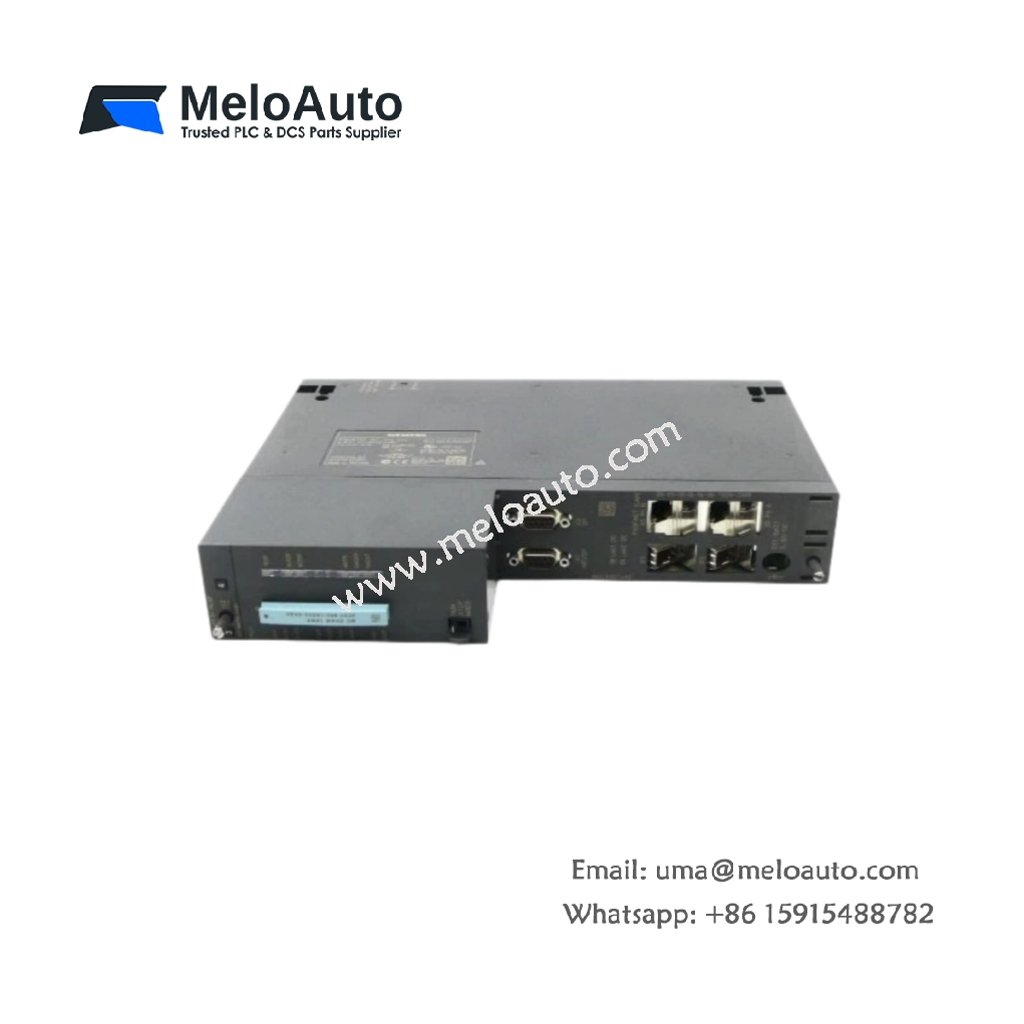

Siemens 6ES7417-5HT06-0AB0 S7-400H CPU

Product Overview

This redundant CPU provides high-availability control for mission-critical automation applications. It operates in an active-standby configuration for seamless failover during system faults. The 6ES7417-5HT06-0AB0 serves as the central processing unit for SIMATIC S7-400H systems. Its robust architecture ensures uninterrupted operation in refinery, power, and chemical plants. This processor handles complex logic and communication tasks with exceptional efficiency.

Technical Specifications

The 6ES7417-5HT06-0AB0 measures 29.0 cm in height, 5.0 cm in width, and 29.0 cm in depth. It weighs approximately 2.5 kg, including the memory card and battery. This module draws 1.8 A from the 24 VDC power supply under full load conditions. It features 32 MB of internal RAM for user program storage and data retention. An additional 32 MB of flash memory preserves the program during power outages. The processor executes Boolean instructions in 0.045 microseconds for ultra-fast performance. It supports up to 16,384 digital I/O points and 1,024 analog I/O channels. The unit includes two PROFIBUS DP interfaces for distributed I/O connectivity. It also features one PROFINET interface with two ports for industrial Ethernet communication. A lithium battery retains memory data for approximately 6 years under normal conditions. The front panel provides LED indicators for power, run, stop, and fault status.

Redundancy and Fault Tolerance

This CPU operates in synchronous mode with a backup processor for zero-data-loss switching. It automatically synchronizes programs and data between active and standby units. The 6ES7417-5HT06-0AB0 detects system faults and initiates failover within 100 milliseconds. Users can replace faulty modules without stopping the control process entirely. The processor also supports online program modifications during normal operations.

Physical and Electrical Parameters

Parameter	Specification
Dimensions (H x W x D)	29.0 cm x 5.0 cm x 29.0 cm
Weight	2.5 kg
Power Supply	24 VDC
Current Draw	1.8 A typical
User Memory	32 MB RAM
Flash Memory	32 MB for program retention
Boolean Execution	0.045 µs
Digital I/O Capacity	16,384 points
Analog I/O Capacity	1,024 channels
PROFIBUS DP Ports	2 (distributed I/O)
PROFINET Ports	2 (2-port switch)
Failover Time	< 100 ms
Battery Life	6 years typical
LED Indicators	Power, run, stop, fault
Operating Temperature	0°C to 60°C

Installation and System Integration

Install the 6ES7417-5HT06-0AB0 into the designated slot of the S7-400H rack. Connect the synchronization fiber optic cables between the two CPUs for redundancy. Secure the module using the retaining screws positioned at the top and bottom. Apply 24 VDC power to the system for processor initialization. Configure the PROFIBUS and PROFINET settings through the TIA Portal software. Download the user program and monitor system status through diagnostic indicators.

Typical Applications

This CPU controls turbine systems, pipeline networks, and large industrial furnaces. It manages batch reactors, distillation columns, and high-speed assembly lines. The 6ES7417-5HT06-0AB0 serves power plants, water treatment, and offshore platforms. Its redundancy features make it ideal for safety-critical process control.
