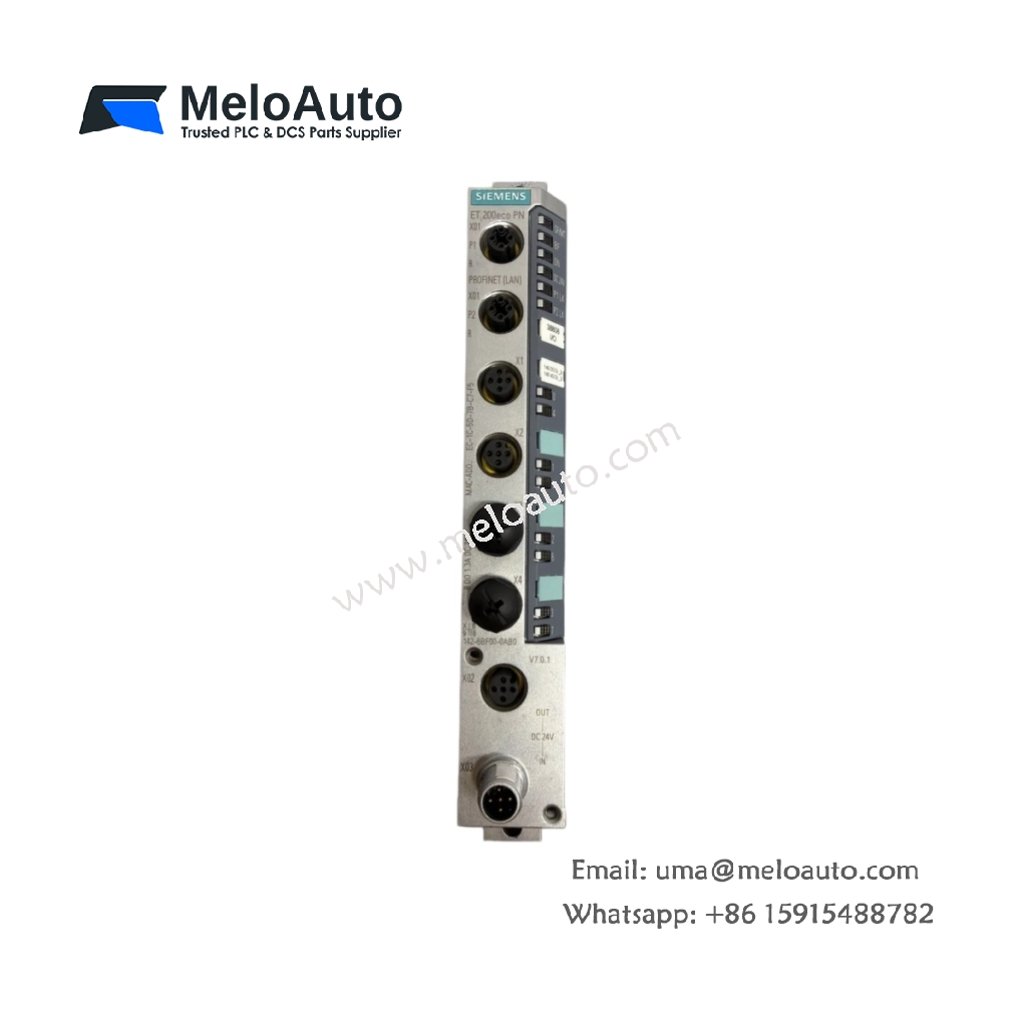

Siemens 6ES7142-6BF00-0AB0 Digital Output Module

Product Overview

This digital output module provides reliable switching for actuators and indicators in SIMATIC ET 200 systems. It translates PLC logic commands into discrete on/off signals for field devices. The 6ES7142-6BF00-0AB0 delivers high-density output capability for demanding automation tasks. Its solid-state design ensures long service life and consistent switching performance. This module supports distributed I/O configurations through the PROFIBUS network.

Technical Specifications

The 6ES7142-6BF00-0AB0 measures 15.0 cm in height, 7.5 cm in width, and 7.0 cm in depth. It weighs approximately 0.35 kg, including all connectors and mounting hardware. This module draws 200 mA from the 24 VDC power supply under full load conditions. It features sixteen digital output channels with transistor switching technology. Each channel provides a maximum output current of 0.5 A at 24 VDC. The total output current limit across all channels reaches 8 A. The module offers a response time of 0.5 ms for high-speed switching applications. It provides optical isolation of 1500 VAC between the backplane and field circuits. Each output includes built-in short-circuit protection and thermal shutdown features. The front panel features sixteen green LED indicators for per-channel status monitoring. The module connects through a 40-pin connector for integration with the ET 200 system.

Output Characteristics and Protection

This module employs MOSFET switching for efficient and reliable load control. It drives solenoid valves, contactors, and indicator lamps with ease. The 6ES7142-6BF00-0AB0 includes integrated clamping diodes for inductive load protection. Users can configure fail-safe states for each channel through the system software. The module also provides diagnostic feedback for each output channel.

Physical and Electrical Parameters

Parameter	Specification
Dimensions (H x W x D)	15.0 cm x 7.5 cm x 7.0 cm
Weight	0.35 kg
Power Supply	24 VDC
Current Draw	200 mA typical
Output Channels	16 digital outputs
Output Type	Transistor (MOSFET)
Current per Point	0.5 A maximum
Total Current	8 A maximum
Voltage Rating	24 VDC
Response Time	0.5 ms typical
Protection	Short-circuit, thermal
Inductive Clamping	Integrated diodes
Isolation Voltage	1500 VAC optical
Diagnostic	Per-channel feedback
Connector Type	40-pin
LED Indicators	16 channel status LEDs
Operating Temperature	0°C to 60°C

Installation and Configuration Steps

Install the 6ES7142-6BF00-0AB0 into the designated slot on the ET 200 station. Secure the module using the retaining clips at the top and bottom positions. Connect the 24 VDC power supply to the designated terminals on the module. Wire each field actuator to its corresponding output channel with proper polarity. The module automatically initializes upon system power-up without manual intervention. Configure output parameters and fail-safe states through the TIA Portal software. Monitor each channel status through the front-panel LED indicators.

Typical Applications

This module controls solenoid valves, motor starters, and alarm systems in factories. It drives indicator lights, relay coils, and pneumatic actuators effectively. The 6ES7142-6BF00-0AB0 serves automotive, packaging, and material handling industries. Its sixteen-point density suits applications requiring numerous discrete outputs.
