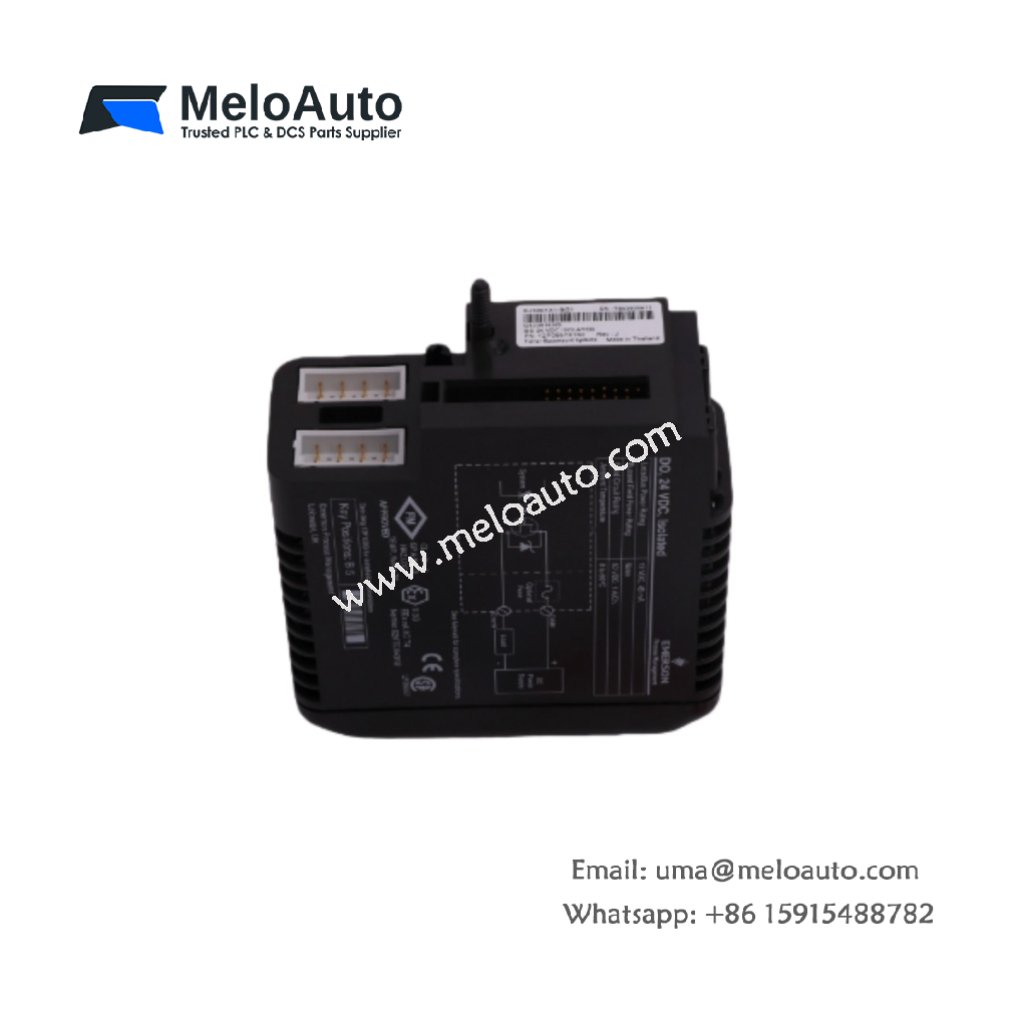

EMERSON VE4002S1T1B2 KJ3001X1-BG1 12P0557X162

Overview

The EMERSON VE4002S1T1B2 KJ3001X1-BG1 12P0557X162 is a high-performance digital output isolated 24VDC module from the Emerson DeltaV M Series. This module provides reliable and efficient output control, designed to withstand harsh industrial conditions. It offers flexible input/output (I/O) arrangements, making it ideal for diverse applications requiring precise on/off control of devices like solenoids, relays, and contactors.

Key Features

Digital Output: Direct control of solenoids, relays, and other devices through reliable on/off signals.
Isolated Outputs: 1500Vrms isolation between channels and power supply to prevent noise and signal interference.
High Performance: Built to operate reliably under extreme conditions, ensuring consistent performance in demanding environments.
Flexible I/O Arrangements: Accommodates a wide variety of industrial and automation needs with extensive I/O configurations.
Rotary Keying System: Ensures easy and correct installation by guaranteeing compatibility between the I/O card and terminal block.

Technical Specifications

Parameter	Specification
Power Supply	24VDC
Output Voltage	24VDC
Output Current per Channel	10A
Number of Channels	12 channels
Output Type	Digital (on/off)
Isolation	1500Vrms between channels and power supply
Operating Temperature	-40°C to +70°C
Dimensions (L x W x H)	222mm x 155mm x 89mm
Weight	1.5kg
