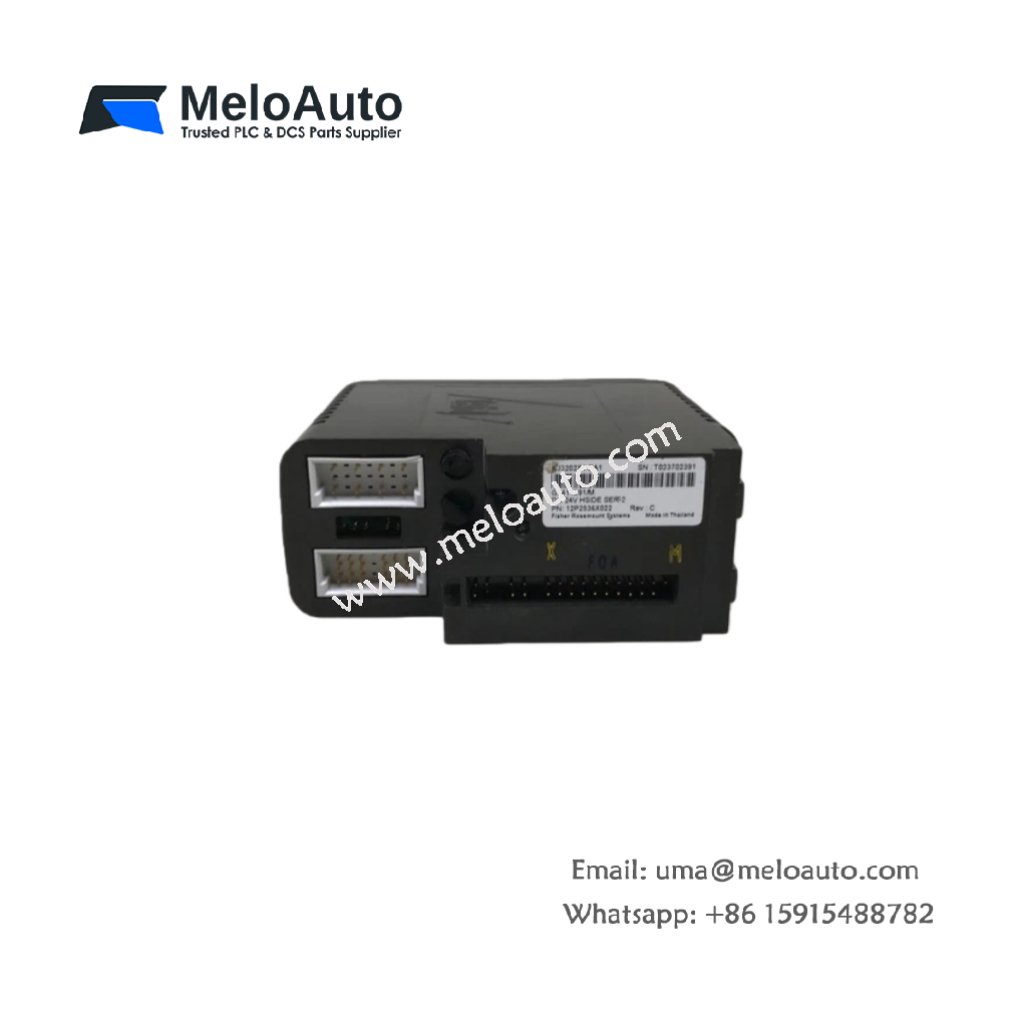

KJ3222X1-BA1 12P2532X152 CE4003S2B3 Conversion Module

Overview

The Emerson KJ3222X1-BA1 12P2532X152 CE4003S2B3 is an advanced analog-to-digital conversion module designed for use in industrial automation and process control applications. It efficiently converts analog signals into digital signals for processing by digital systems or computers. This module is ideal for monitoring physical quantities such as temperature, pressure, and flow in complex industrial environments.

Key Features and Specifications

Model Number: KJ3222X1-BA1 12P2532X152 CE4003S2B3
Number of Inputs: 12
Input Type: 2-wire, 4-20mA current loop
Input Range: 0-20mA or 4-20mA
Resolution: 12 bits
Accuracy: ±0.196% of full scale
Isolation: 500Vrms
Power Supply: 24VDC
Mounting: DIN rail
Operating Temperature: -40°C to +85°C
Humidity: 5% to 95% RH (non-condensing)

Functionality

The module supports 12 inputs, enabling the simultaneous measurement of up to 12 different analog signals. The module uses a 2-wire, 4-20mA current loop input, a common industry standard for transmitting analog signals over long distances with minimal signal degradation. This feature is essential for applications where sensors or transmitters are placed far from the control system.

Performance

The offers high resolution and excellent accuracy. Its 12-bit resolution allows for detailed signal representation, ensuring precise and reliable measurements. With an accuracy of ±0.196% of the full scale, this module provides dependable data, making it ideal for applications that require high-precision measurements.

Isolation and Protection

The module’s 500Vrms isolation ensures protection from electrical noise and interference, which are prevalent in industrial environments. This isolation feature improves the module’s performance and reliability, particularly in areas with high electromagnetic interference (EMI). It helps safeguard the module and connected equipment from transient voltages or spikes.

Installation and Integration

The features a DIN rail mounting design, making installation easy and efficient in various industrial environments. It integrates seamlessly into existing systems, minimizing setup time and improving overall system efficiency. The DIN rail mount is a widely used standard in industrial automation, ensuring compatibility with most control systems.

Technical Specifications

Parameter	Value
Model Number	KJ3222X1-BA1 12P2532X152 CE4003S2B3
Number of Inputs	12
Input Type	2-wire, 4-20mA current loop
Input Range	0-20mA or 4-20mA
Resolution	12 bits
Accuracy	±0.196% of full scale
Isolation	500Vrms
Power Supply	24VDC
Mounting	DIN rail
Operating Temperature	-40°C to +85°C
Humidity Range	5% to 95% RH (non-condensing)
