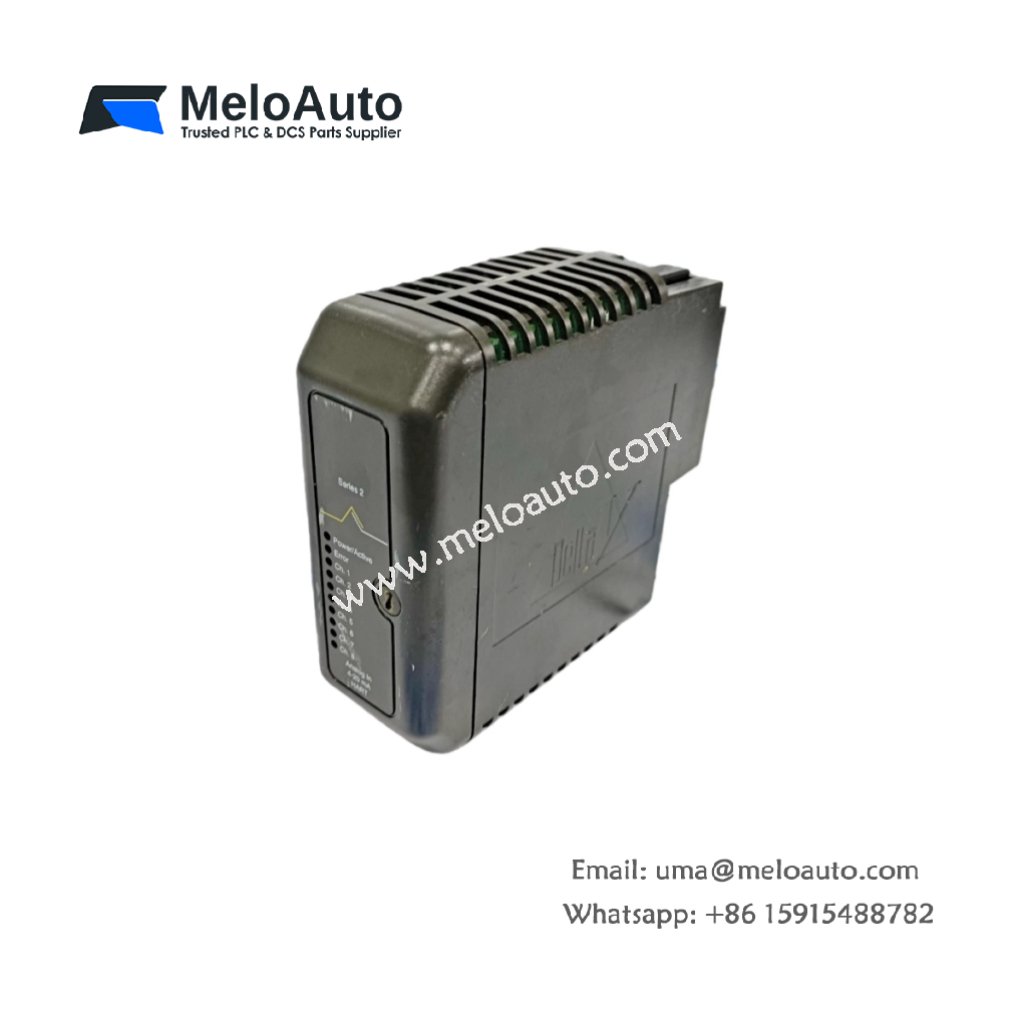

KJ3222X1-BA1 12P2532X072 VE4003S2B1 Analog Input Module

Overview

The Emerson KJ3222X1-BA1 12P2532X072 VE4003S2B1 is a high-performance analog input module designed for use with the Emerson DeltaV Distributed Control System (DCS). This module provides eight high-accuracy analog input channels, ideal for measuring a wide variety of process variables, including temperature, pressure, flow, and level. It is engineered to meet the needs of critical industrial applications that require high reliability, precision, and uptime.

Equipped with redundant design for high availability and hot-swapping capability for easy maintenance, the KJ3222X1-BA1 ensures seamless operation in demanding environments. Furthermore, it supports HART protocol for device configuration and diagnostics, making it a versatile solution for process control and monitoring.

Key Features

High-Accuracy Measurement
This module offers eight high-accuracy analog input channels, ensuring precise readings for various industrial applications.
Redundant Design for High Availability
The KJ3222X1-BA1 features a redundant design that enhances system reliability, ensuring continuous operation even in critical situations.
Hot-Swapping Capability
Maintenance becomes easier with the hot-swapping feature, enabling module replacement without system downtime.
Supports HART Protocol
The module supports the HART protocol, allowing for device configuration and diagnostics.
Plug-and-Play Installation
Its plug-and-play design ensures fast and easy integration into the Emerson DeltaV DCS.
Wide Temperature Range
The module operates efficiently in a temperature range from -40°C to +70°C, making it suitable for harsh industrial environments.

Technical Specifications

Specification	Details
Product Type	Analog Input Module
Manufacturer	Emerson
Model Number	KJ3222X1-BA1 12P2532X072 VE4003S2B1
Number of Channels	8 Channels
Input Type	4-20 mA HART
Accuracy	0.196% of Reading
Resolution	12 bits
Update Time	10 ms
Local Bus Power	12 VDC at 150 mA
Bussed Field Power	24 VDC at 300 mA
Field Circuit Power	24 VDC at 30 mA/Channel

Environmental Specifications

Specification	Details
Ambient Temperature	-40°C to +70°C
Shock Resistance	10 g, half-sine wave for 11 ms
Vibration Resistance	1 mm peak-to-peak (2 to 13.2 Hz), 0.7 g (13.2 to 150 Hz)
Airborne Contaminants	ISA-S71.04 –1985 Airborne Class G3
Relative Humidity	5% to 95%, non-condensing

Applications

Industrial Automation
Ideal for industrial automation systems that require precise monitoring and control of process variables.
Process Control
The KJ3222X1-BA1 is perfect for applications in process control where high-accuracy analog input channels are essential.
SCADA Systems
Provides reliable data acquisition for SCADA applications in various industries.
Remote Monitoring and Diagnostics
The module’s support for HART protocol enhances its capability for remote monitoring and diagnostics, ensuring system health and performance.

Why Choose the Emerson KJ3222X1-BA1?

Precision and Accuracy: With 12-bit resolution and 0.196% accuracy, the KJ3222X1-BA1 guarantees high precision for critical industrial measurements.
Robust Design: Built to withstand harsh conditions, it features shock resistance and vibration resistance, ensuring reliable operation in demanding environments.
Easy Maintenance: Hot-swapping and plug-and-play installation allow for simple maintenance and quick system updates.
Wide Compatibility: This module integrates seamlessly with the Emerson DeltaV DCS, ensuring optimal performance across diverse applications.
