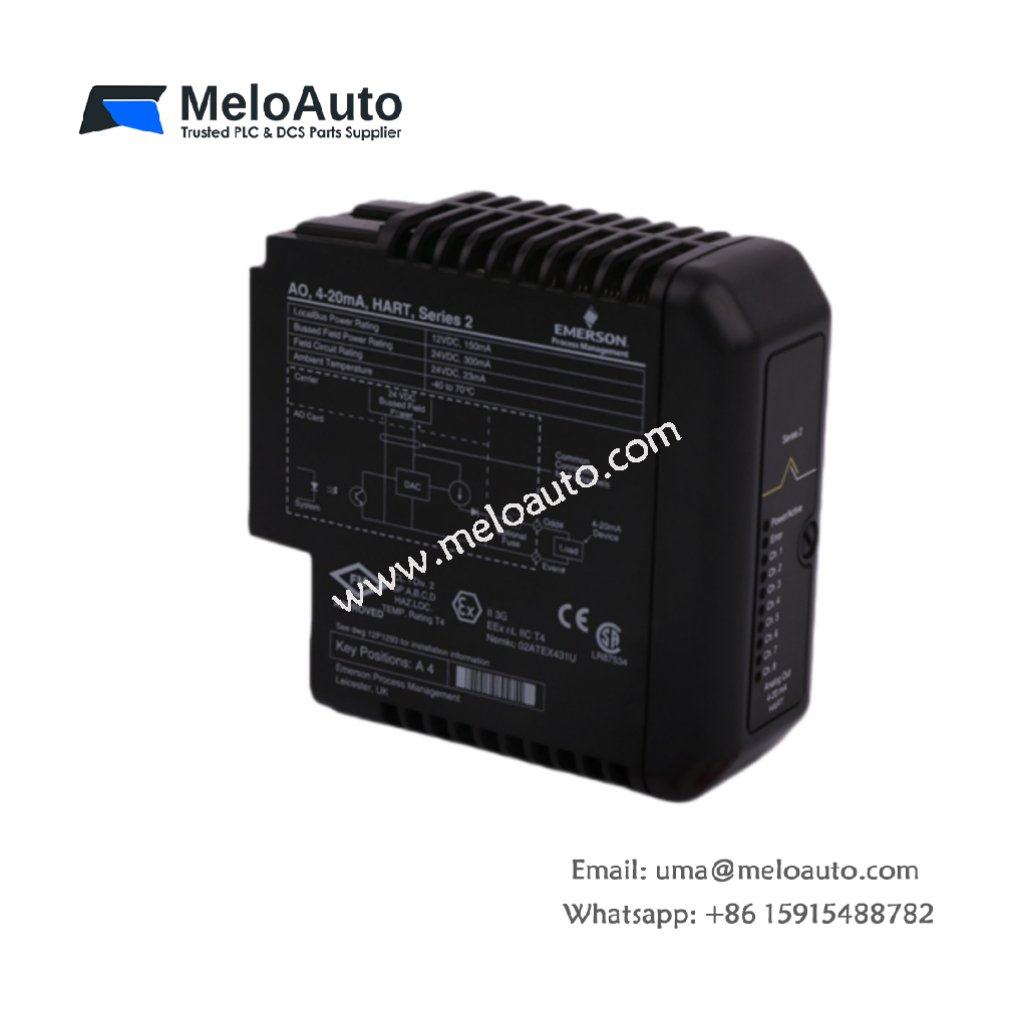

KJ3221X1-BA1 12P2531X082 Analog Output HART Module

The Emerson KJ3221X1-BA1 12P2531X082 is a high-performance analog output HART module, designed for a wide range of industrial applications. This module is a part of the Emerson DeltaV system, offering scalability and reliability for growing systems. It ensures precise control and communication across various industrial processes.

Key Features

High-Performance Analog Output
The KJ3221X1-BA1 12P2531X082 delivers exceptional analog output with a range of 0-10 VDC. This ensures precise control in industrial automation, enabling the module to meet the demanding requirements of complex applications.
Scalable Architecture
With its scalable architecture, the KJ3221X1-BA1 12P2531X082 module can easily expand as your application grows. It supports a variety of configurations, making it adaptable to both small and large systems.
Reliable HART Communication
This module supports HART 7 communication, ensuring reliable and efficient data transmission between devices. The integration of HART technology enhances system flexibility, providing seamless interaction with various field devices.
Wide Range of Applications
The KJ3221X1-BA1 12P2531X082 is versatile and can be used in diverse applications such as process control, machine control, building automation, and more. It ensures smooth integration into systems across different industries, including oil and gas, water treatment, and manufacturing.

Technical Specifications

Specification	Details
Module Type	Analog Output HART Module
Output Range	0-10 VDC
Resolution	16 bits
Accuracy	±0.02%
Communication Protocol	HART 7
Temperature Range	-40°C to +85°C
Local Bus Power	12 VDC at 150 mA
Bussed Field Power	24 VDC at 300 mA
Field Circuit	24 VDC at 23 mA per channel
Shock Resistance	10g ½ Sinewave for 11msec
Vibration Resistance	1mm Peak to Peak (2 to 13.2Hz); 0.7g (13.2 to 150Hz)
Contaminants	ISA-S71.04 –1985 Class G3
Relative Humidity	5% to 95% Non-Condensing
IP Rating	IP 20

Environmental Specifications

Ambient Temperature: -40°C to +70°C
Shock: 10g ½ Sinewave for 11 milliseconds
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Contaminants: ISA-S71.04 –1985 Class G3
Humidity: 5% to 95% Non-Condensing
IP Rating: IP 20

Applications

The KJ3221X1-BA1 12P2531X082 module is ideal for use in process control, machine control, and building automation. Its high-accuracy output and reliable communication make it an excellent choice for industries such as oil and gas, water treatment, and manufacturing automation.
