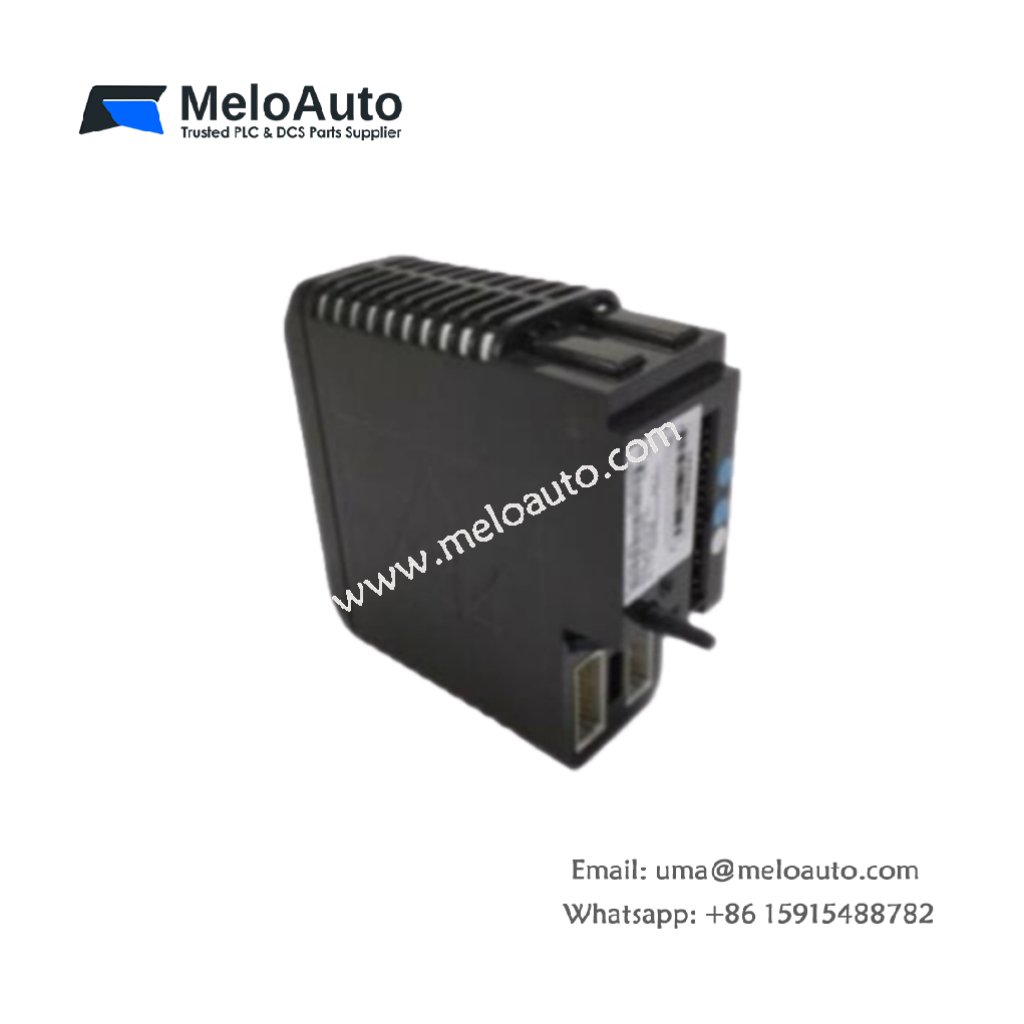

Emerson KJ3002X1-BG2 12P1731X062 Discrete Input Module

Overview

The Emerson KJ3002X1-BG2 12P1731X062 is a high-performance discrete input module designed for use with the DeltaV control system. This module enables seamless integration with field devices such as switches, sensors, and other input devices. With 12 discrete inputs, it provides flexibility, allowing you to configure the inputs to either source or sink current. Additionally, the KJ3002X1-BG2 12P1731X062 features a built-in watchdog timer that ensures the module resets in the event of a field device issue, enhancing system reliability and minimizing downtime.

This module is widely used in industrial automation applications, including process control, machine automation, and manufacturing systems, where reliable input processing is essential for optimal performance.

Key Features

Field-Proven Reliability: The KJ3002X1-BG2 12P1731X062 is known for its durability and consistent performance in demanding industrial environments.
Wide Compatibility: The module is compatible with a broad range of field devices, including switches, sensors, and other input equipment.
Configurable Inputs: You can easily configure the module to either source or sink current, offering flexibility in system design.
Built-in Watchdog Timer: The module includes a watchdog timer that resets the module if it detects a malfunction or problem with the connected field device.
Easy Installation and Maintenance: The module’s straightforward design makes it quick to install and easy to maintain, reducing system downtime and complexity.
Versatile Configuration Options: The KJ3002X1-BG2 12P1731X062 offers various configuration options, allowing for a customizable solution that fits your specific needs.
Built-in Diagnostics: This feature provides real-time monitoring and alerts, helping to prevent potential issues before they affect the system’s operation.

Technical Specifications

Parameter	Specification
Model	KJ3002X1-BG2 12P1731X062
Type	Discrete Input Module for DeltaV Control System
Number of Inputs	12 Discrete Inputs
Input Configuration	Configurable to Source or Sink Current
Watchdog Timer	Built-in Watchdog Timer
Compatibility	Compatible with a wide range of field devices
Applications	Process Control, Manufacturing, Automation, Infrastructure
Mounting Type	DIN Rail Mountable
Dimensions	125 mm x 100 mm x 90 mm (Approx.)
Operating Temperature Range	-40°C to +70°C
Storage Temperature Range	-40°C to +85°C
Weight	0.45 kg (Approx. 1 lb)

Applications

The Emerson KJ3002X1-BG2 12P1731X062 module is suitable for a broad range of industrial applications, including:

Process Monitoring and Control: It offers reliable input processing for monitoring and controlling various process parameters.
Machine Automation: The module ensures precise input processing for automated machinery systems, enhancing operational efficiency.
Building Automation: It is used for integrating field devices in building management systems, offering precise control and monitoring.
Infrastructure Control: The module plays a key role in controlling and monitoring infrastructure systems such as utilities, transport, and public services.
Test and Measurement: It is often used in test equipment and measurement systems, providing reliable input signals for accurate readings.

Additional Information

Compact and Efficient: The KJ3002X1-BG2 12P1731X062 is compact and easy to integrate into existing systems without requiring excessive space.
Built for Reliability: The module is designed for industrial environments, where high performance and stability are critical to successful operations.
