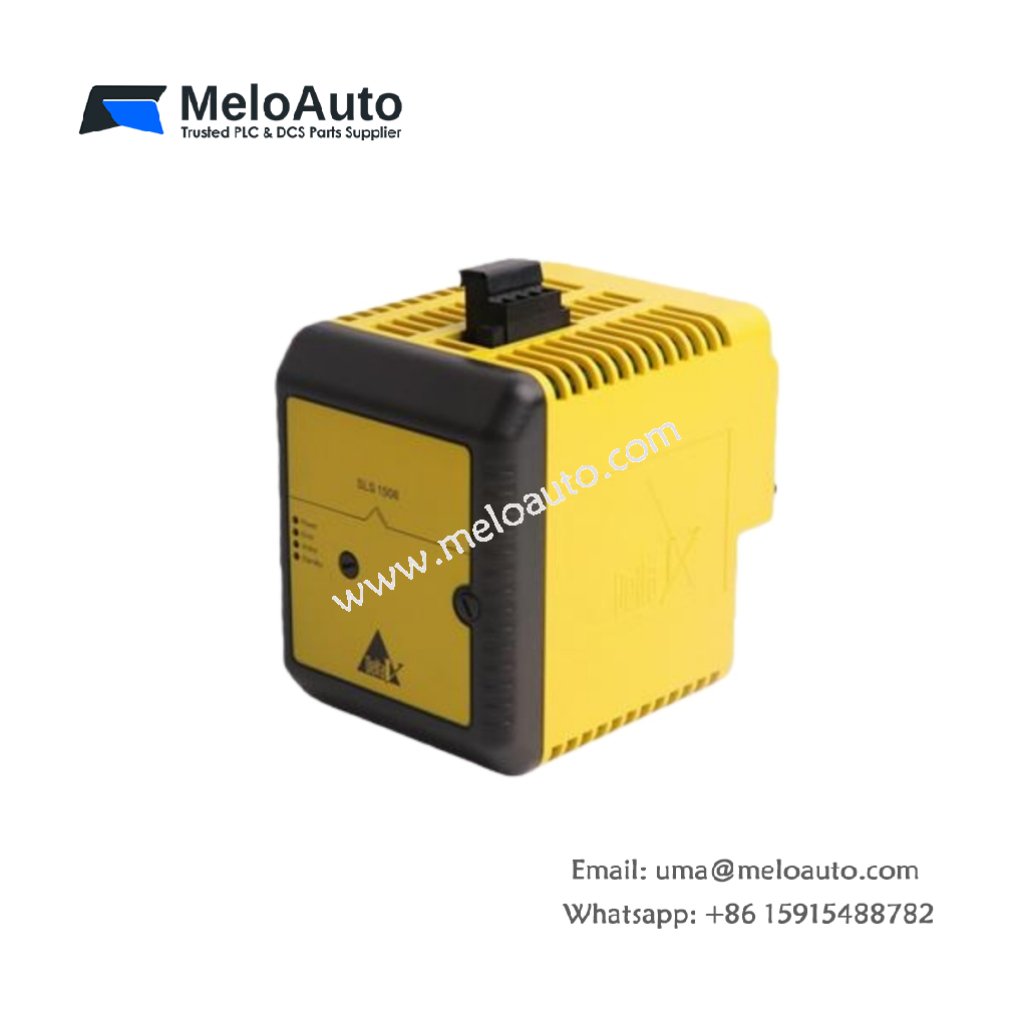

Emerson KJ2201X1-BA1 DeltaV SLS 1508 Logic Solver

Overview

The Emerson KJ2201X1-BA1 is an advanced DeltaV SLS 1508 Logic Solver, designed for safety-critical applications within the DeltaV safety instrumented systems (SIS). This smart logic solver ensures high availability and reliability, playing a vital role in process safety by integrating with intelligent field devices. With the ability to diagnose faults, this module enhances operational uptime while minimizing lifecycle costs.

Key Features

Smart Logic Solver: The DeltaV SLS 1508 is the world’s first smart logic solver, communicating with intelligent field devices using the HART protocol, which enables seamless control and monitoring.
Fault Diagnosis: The logic solver can detect and diagnose faults before they cause system malfunctions, reducing the risk of spurious trips and increasing system availability.
Flexible Deployment Options: It can be deployed either as a standalone system or integrated with DeltaV DCS, maintaining functional separation while also incorporating safety functions at workstations.
IEC 61511 Compliance: Designed to meet IEC 61511 standards, it ensures rigorous safety compliance for critical systems in industrial operations.
User Management: The logic solver includes comprehensive user management capabilities, ensuring only authorized personnel can make adjustments. All changes are verified automatically, guaranteeing accurate data is written to the system.
Scalability: Each SLS 1508 includes built-in I/O with dual CPUs and sixteen channels, offering easy scalability for safety applications ranging from isolated wellheads to large ESD/fire and gas systems.

Performance and Reliability

Redundant Design: For improved availability and reliability, the SLS 1508 logic solver is installed in redundant pairs. This includes separate power supplies and dedicated redundancy links, ensuring uninterrupted operation.
High Availability: The SLS 1508 maintains high availability even in demanding and safety-critical environments, thanks to its redundant architecture and dual CPU configuration.

Environmental Specifications

Ambient Temperature Range: -40°C to +70°C, ensuring operation in extreme environmental conditions.
Shock Resistance: Withstands 10 G shock for 11 ms (½ sine wave), providing durability in industrial environments.
Vibration Resistance: Designed to handle vibrations with 1 mm peak-to-peak from 5 Hz to 16 Hz and 0.5 g from 16 Hz to 150 Hz, ensuring reliable performance in high-vibration environments.
Airborne Contaminants: The SLS 1508 complies with ISA-S71.04 – 1985 Airborne Contaminants Class G3, making it suitable for industrial environments where airborne contaminants may be present.
Humidity Range: Operates in environments with 5% to 95% non-condensing humidity, making it reliable in various moisture conditions.

Power Specifications

Input Power: The SLS 1508 operates with 24 VDC, 1 A input power and supports up to 4 A maximum for field power, ensuring sufficient power delivery for demanding applications.

Technical Specifications

Parameter	Value
Model Number	KJ2201X1-BA1
Logic Solver Model	DeltaV SLS 1508
Redundant Architecture	Yes (Redundant pairs, separate power supplies)
Ambient Temperature Range	-40°C to +70°C
Shock Resistance	10 G, ½-sinewave for 11 ms
Vibration Resistance	1 mm peak-to-peak (5 Hz to 16 Hz); 0.5 g (16 Hz to 150 Hz)
Airborne Contaminants	ISA-S71.04 – 1985 Class G3
Humidity Range	5% to 95% non-condensing
Input Power	24 VDC, 1 A (field power up to 4 A max)
I/O Channels	16 I/O channels
Compliance	IEC 61511
Scalability	Built-in I/O, dual CPUs

Applications

Process Safety: The DeltaV SLS 1508 is ideal for safety-critical applications in industries such as oil and gas, chemical processing, and power generation.
Fire and Gas Systems: Its redundancy and flexibility make it a great choice for large ESD/fire and gas systems.
Remote Wellheads: It is suitable for remote locations where safety and operational continuity are essential.
