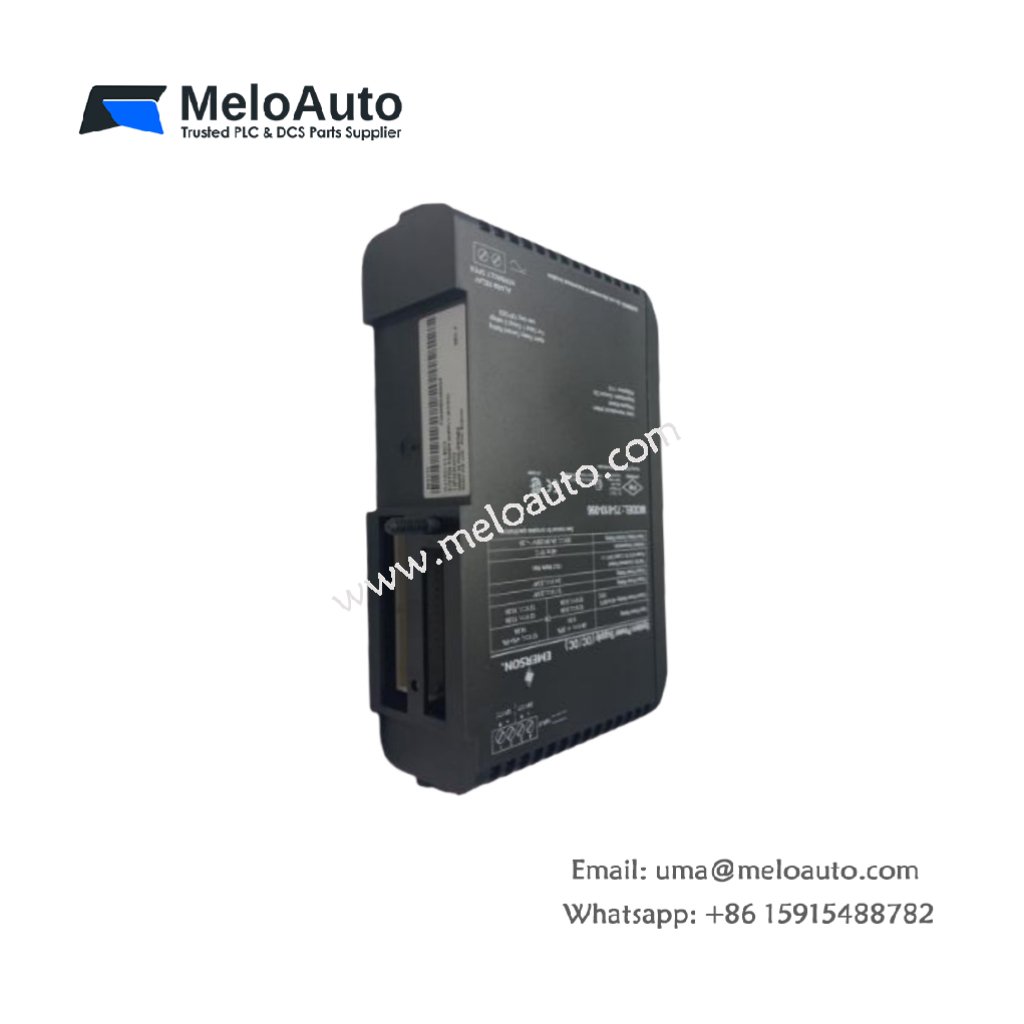

Emerson KJ1501X1-BC3 Dual DC Power Supply Module

Overview

The Emerson KJ1501X1-BC3 is a reliable dual DC power supply module, specifically designed for the DeltaV Distributed Control System (DCS). It provides essential redundant power to control systems, ensuring continuous operation even in hazardous environments. Thanks to its high efficiency and rugged construction, this module is perfect for demanding industrial automation applications.

Key Features

Dual DC Outputs: The KJ1501X1-BC3 offers dual 12VDC outputs and an additional 24VDC output, providing flexibility for various power requirements.
High Current Support: With a maximum output of 16A per channel, this power supply module meets the needs of high-demand automation systems.
Wide Input Voltage Range: It operates within an input voltage range of 18VDC to 36VDC, making it adaptable to different power scenarios and environments.
Efficiency: The KJ1501X1-BC3 ensures energy efficiency with a typical efficiency of 85%, which reduces power loss and enhances operational cost savings.
Operating Conditions: Designed to handle extreme environments, this module operates between -40°C to +70°C, ensuring dependable performance in both hot and cold conditions.
Humidity Tolerance: It functions in environments with 0% to 95% non-condensing humidity, maintaining reliability in varied conditions.
Hazardous Location Certifications: The KJ1501X1-BC3 is ATEX and IECEx certified for use in Class I, Division 2, Groups A, B, C, D, E, F, and G hazardous locations, ensuring compliance with the highest safety standards.

Applications

Industrial Automation: Perfect for powering control systems in factories and manufacturing plants, where reliability is key.
Oil & Gas: Ideal for use in hazardous locations like oil rigs and refineries, where redundant power is critical.
Power Generation: Ensures continuous operation of power plant control systems, even in adverse conditions.
Chemical Processing: Essential for critical control systems in chemical plants, offering redundancy and reliability.
Mining: Provides stable power in harsh mining environments, ensuring operational continuity.

Technical Specifications

Parameter	Value
Input Voltage Range	18 to 36 VDC
Output Voltage Range	Dual 12 VDC or 24 VDC
Output Current	16 A maximum per output
Efficiency	85% typical
Operating Temperature Range	-40°C to +70°C
Humidity	0% to 95% non-condensing
Certifications	ATEX, IECEx
