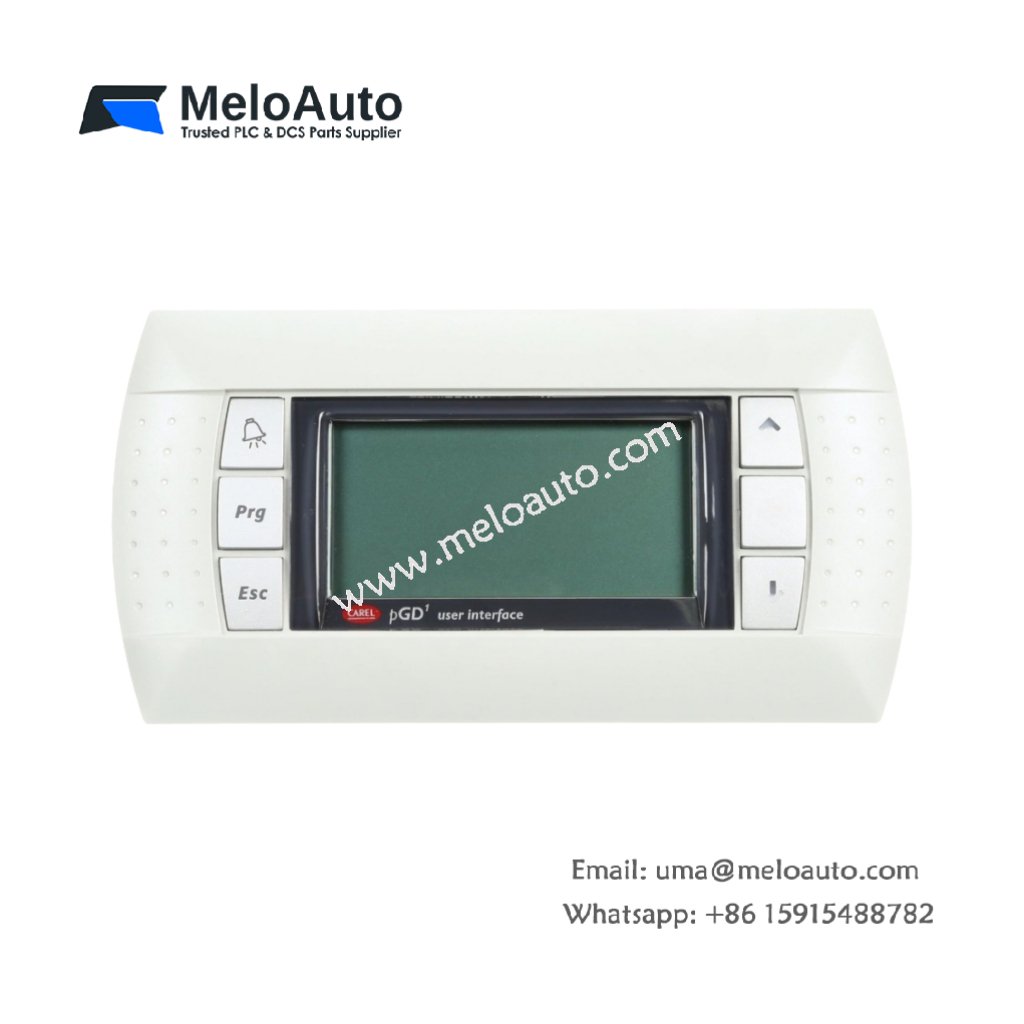

Carel PGD1000FW1 Graphic Display Controller

The Carel PGD1000FW1 belongs to the advanced pGD series and delivers a clear, user-friendly interface for system monitoring. It integrates seamlessly with pGD, pGN, pCO, and c.pCO controllers, therefore offering complete flexibility for automation applications. Because all pGD and pGN models support interchangeability, the PGD1000FW1 allows quick replacements and efficient upgrades without reconfiguring the system.

Stable Communication and Connectivity

The display connects through an RS485 interface, which guarantees fast and secure data transmission between controllers and the display. Consequently, engineers can depend on the PGD1000FW1 to maintain stable operation even in demanding industrial environments.

Compact Yet Durable Design

The Carel PGD1000FW1 offers compact dimensions, yet it remains strong enough for continuous industrial use. Moreover, its lightweight structure reduces installation effort and saves panel space, while its robust housing ensures long service life under constant operation.

Technical Specifications

• Manufacturer: Carel
• Product Length: 6.12 inches (15.545 cm)
• Product Width: 3.3 inches (8.382 cm)
• Product Height: 1.2 inches (3.048 cm)
• Product Weight: 0.4 lbs (0.181 kg)
• Shipping Length: 7 inches (17.780 cm)
• Shipping Width: 5.5 inches (13.970 cm)
• Shipping Height: 2.4 inches (6.096 cm)
• Communication Port: RS485
• Compatible Series: pGD, pGN, pCO, c.pCO

Dimensions and Weight

The PGD1000FW1 measures 6.12 x 3.3 x 1.2 inches and weighs only 0.4 lbs. In addition, its compact design simplifies installation, while its low weight ensures easy handling during maintenance.

Italian Manufacturing Quality

Carel produces the PGD1000FW1 in Italy and applies strict industrial quality standards throughout the process. As a result, customers receive a product that combines high precision, durable materials, and consistent performance for global automation projects.
