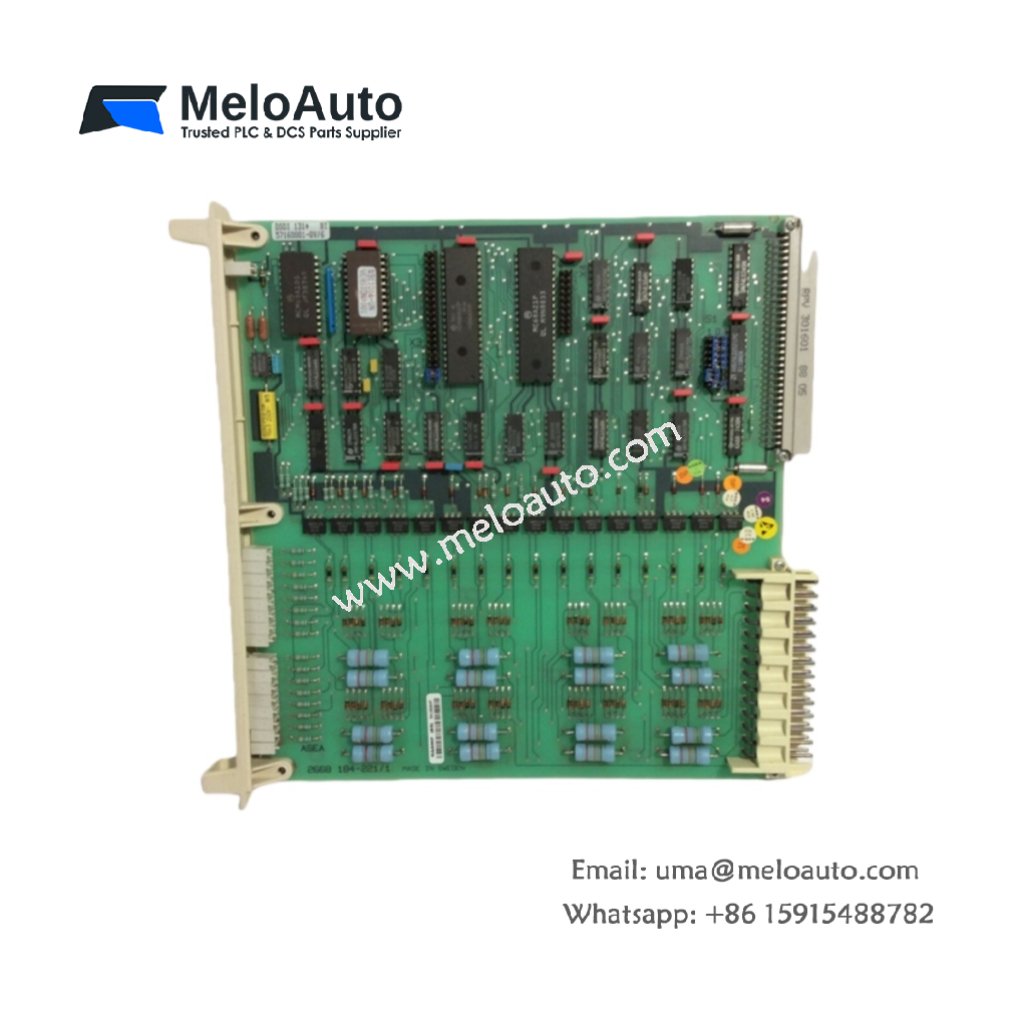

ABB DSDI131 57160001-GV Digital Input Board

The ABB DSDI131 57160001-GV is a high-performance digital input board, specifically designed for use in ABB’s Advant OCS and S100 I/O systems. This module provides reliable and efficient digital input capabilities, making it ideal for various industrial control and automation applications.

Key Features:

32 Digital Input Channels: Configurable as sinking or sourcing inputs, offering flexibility for various installations.
Event Detection: Capable of detecting events on both rising and falling edges, ensuring precise data monitoring.
Input Voltage: Operates with a 24 VDC input, providing broad compatibility with industrial systems.
Diagnostics and Status LEDs: On-board diagnostics with status LEDs for easy monitoring of module health and functionality.
RoHS Compliance: Adheres to RoHS standards, ensuring environmental safety and compliance with regulations.

Technical Specifications:

Specification	Details
Model Number	DSDI131 57160001-GV
Product Type	Digital Input Board
Manufacturer	ABB
System Compatibility	Advant OCS, S100 I/O systems
Number of Channels	32 channels
Input Type	Digital, isolated
Input Voltage	24 VDC
Event Detection	Rising and falling edges
Diagnostic Features	On-board diagnostics and status LEDs
RoHS Compliance	Yes
Weight	0.33 kg
Dimensions (LxWxH)	230 mm x 120 mm x 22 mm

Product Description:

The ABB DSDI131 57160001-GV digital input board is a robust solution for industrial monitoring and control systems. It is compatible with Advant OCS and S100 I/O systems, making it an excellent choice for process control and machine automation applications.

With 32 digital input channels, the DSDI131 is highly flexible. It can be configured as sinking or sourcing inputs, depending on system requirements. The board operates with a 24 VDC input, ensuring compatibility with most industrial devices.

For enhanced reliability, the module supports event detection on both rising and falling edges, allowing it to capture precise changes in signal state. The on-board diagnostics and status LEDs provide real-time health monitoring, ensuring smooth operation in critical environments.

Moreover, the ABB DSDI131 adheres to RoHS standards, guaranteeing its compliance with environmental safety regulations. This makes it suitable for a wide range of industrial environments, from process control to building automation.

Applications:

Process Control: Monitors sensors, switches, and valves in industrial processes.
Machine Automation: Tracks limit switches, pushbuttons, and other control devices.
Building Automation: Ideal for monitoring door switches, motion detectors, and security systems.
Industrial Control Systems: Handles various monitoring and control tasks across industrial environments.
