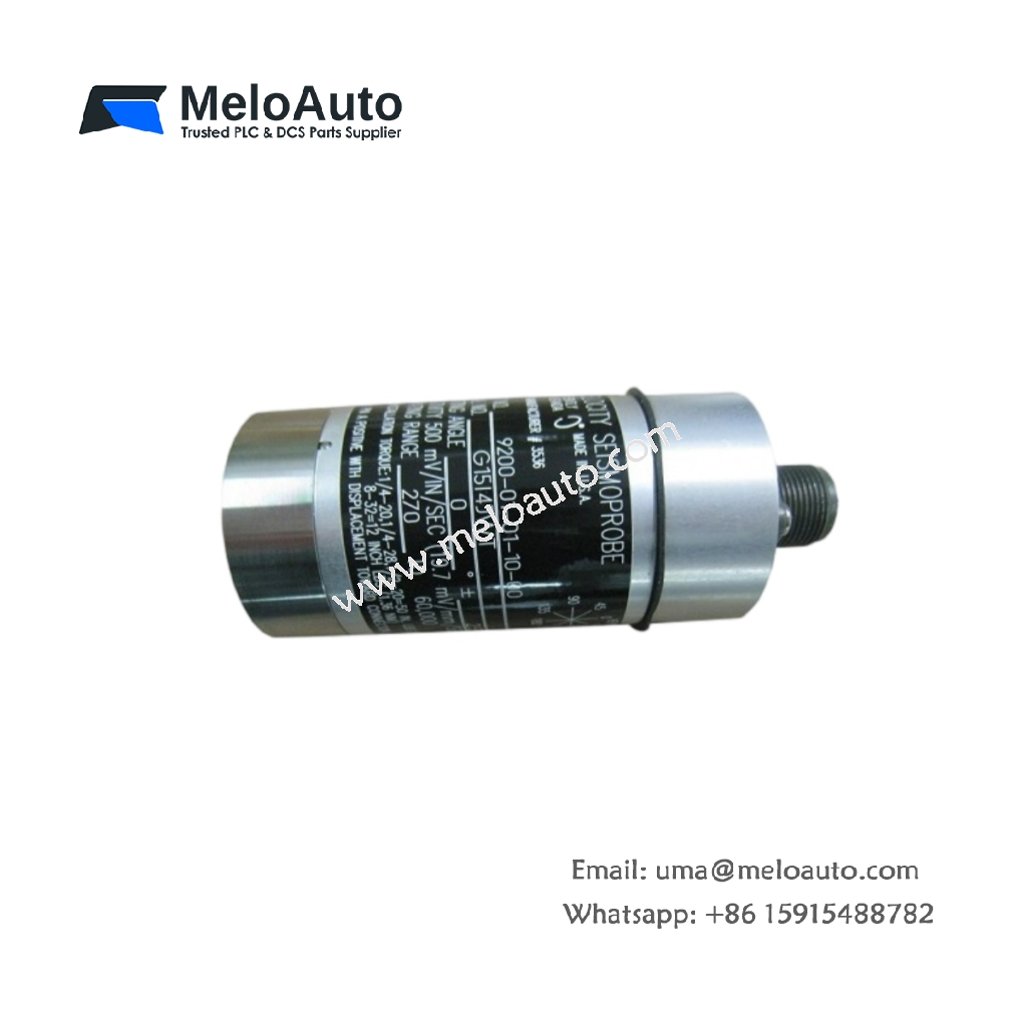

Bently Nevada 9200-01-01-01-00 Seismoprobe

The 9200-01-01-01-00 velocity transducer delivers precise vibration measurement for industrial rotating machinery. Bently Nevada engineered this two-wire seismoprobe to monitor absolute bearing housing and casing vibrations with exceptional accuracy. Engineers rely on its moving-coil technology for dependable condition monitoring across power generation and petrochemical facilities.

Technical Specifications

Parameter	Details
Manufacturer	Bently Nevada
Model	9200-01-01-01-00
Series	9200 Seismoprobe
Category	Two-Wire Velocity Transducer
Sensitivity	20 mV/mm/s (500 mV/in/s) ±5%
Frequency Response	4.5 Hz to 1 kHz (+0, -3 dB)
Mounting Angle	0° ±2.5°
Connector Type	Top mount terminal block
Mounting Base	Circular with 1/4-20 UNC stud
Dimensions	102 mm height x 41 mm diameter
Weight	300 g (10.5 oz)
Coil Resistance	1.25 kΩ ±5%
Dynamic Range	2.54 mm peak-to-peak
Operating Temperature	-29°C to +121°C
Certifications	CE, RoHS

Key Features and Benefits

This transducer employs moving-coil technology to generate voltage proportional to vibration velocity. The two-wire configuration eliminates external power requirements and simplifies field wiring considerably. Consequently, technicians deploy the sensor quickly for permanent monitoring and portable diagnostic applications.

The 9200-01-01-01-00 operates across a wide -29°C to +121°C temperature range. Its anodized aluminum housing resists corrosion and mechanical wear in harsh environments. Additionally, the 0° mounting angle with 1/4-20 UNC stud ensures stable mechanical coupling.

Applications and Compatibility

This velocity transducer excels in steam turbine and compressor monitoring applications. It connects directly to Bently Nevada 3300 and 3500 monitoring systems. Furthermore, the sensor supports predictive maintenance programs across manufacturing and process industries.
