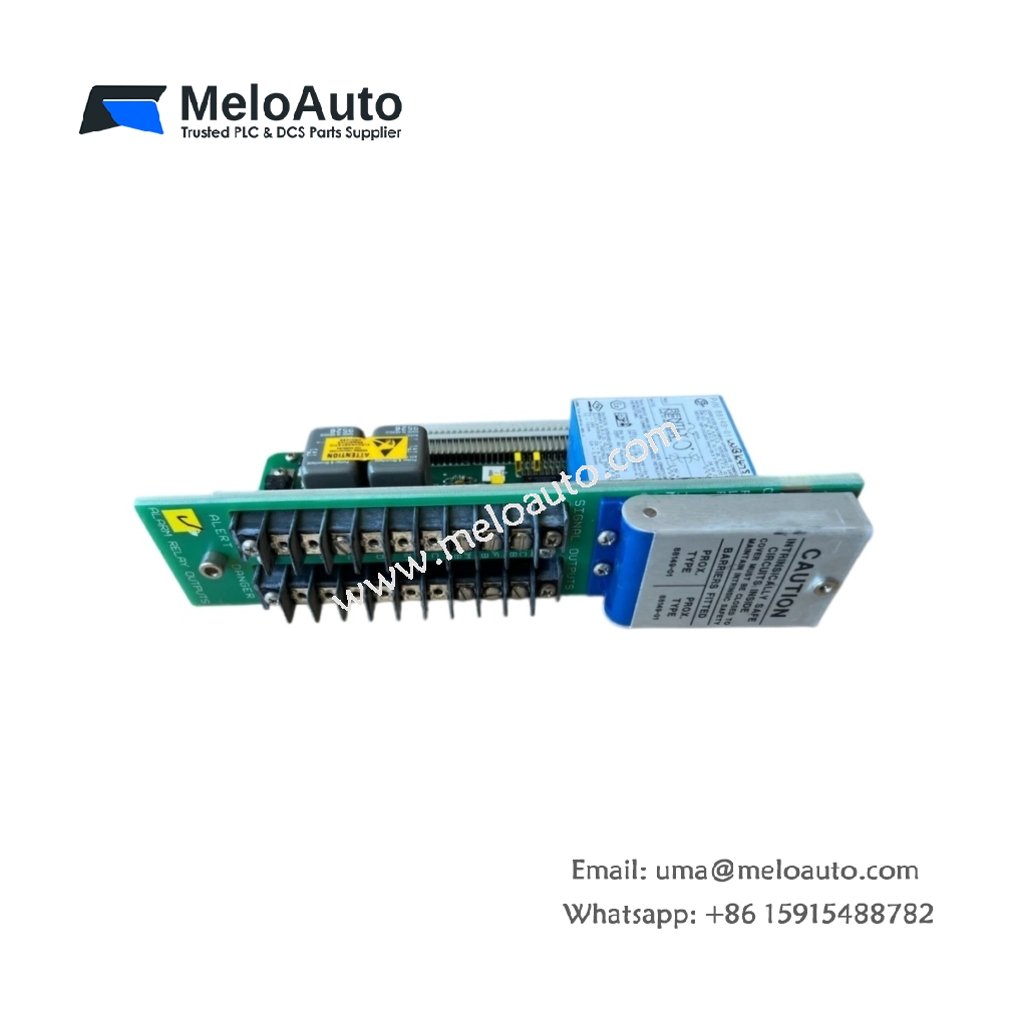

Bently Nevada 88149-01 Alarm Relay Outputs Assembly for Protection Systems

The 88149-01 alarm relay outputs assembly adds hardwired trip signals to Bently Nevada protection racks. Reliability engineers select this unit when they need fail-safe shutdown paths for rotating machinery. Moreover, the assembly supports redundant contacts that strengthen overall machine protection.

Interface and Channel Layout

This assembly provides eight relay output channels through front-panel terminal blocks. Specifically, each channel offers form-C contacts for alarm and trip circuits. Therefore, technicians wire shutdown logic directly and skip external interposing relays.

Physical Dimensions and Weight

The unit measures 160 mm in height, 25 mm in width, and 200 mm in depth. Additionally, it weighs approximately 0.5 kg, which simplifies rack and cabinet mounting. These slim dimensions help engineers fit several assemblies into dense monitoring racks.

Component Count and Energy Storage

Each assembly contains 94 electronic components on a shielded circuit board. Furthermore, the board integrates a capacitor bank for coil suppression and transient absorption. This energy storage element stabilizes relay switching and protects sensitive logic circuitry.

Key Technical Parameters

Integration and Operational Benefits

The 88149-01 assembly pairs with Bently Nevada 3500 monitoring systems and trip logic. Consequently, reliability teams achieve fast shutdown response and simpler panel wiring. The compact form factor also lowers rack space and installation cost. Overall, this assembly delivers dependable alarm output for critical machine protection.
