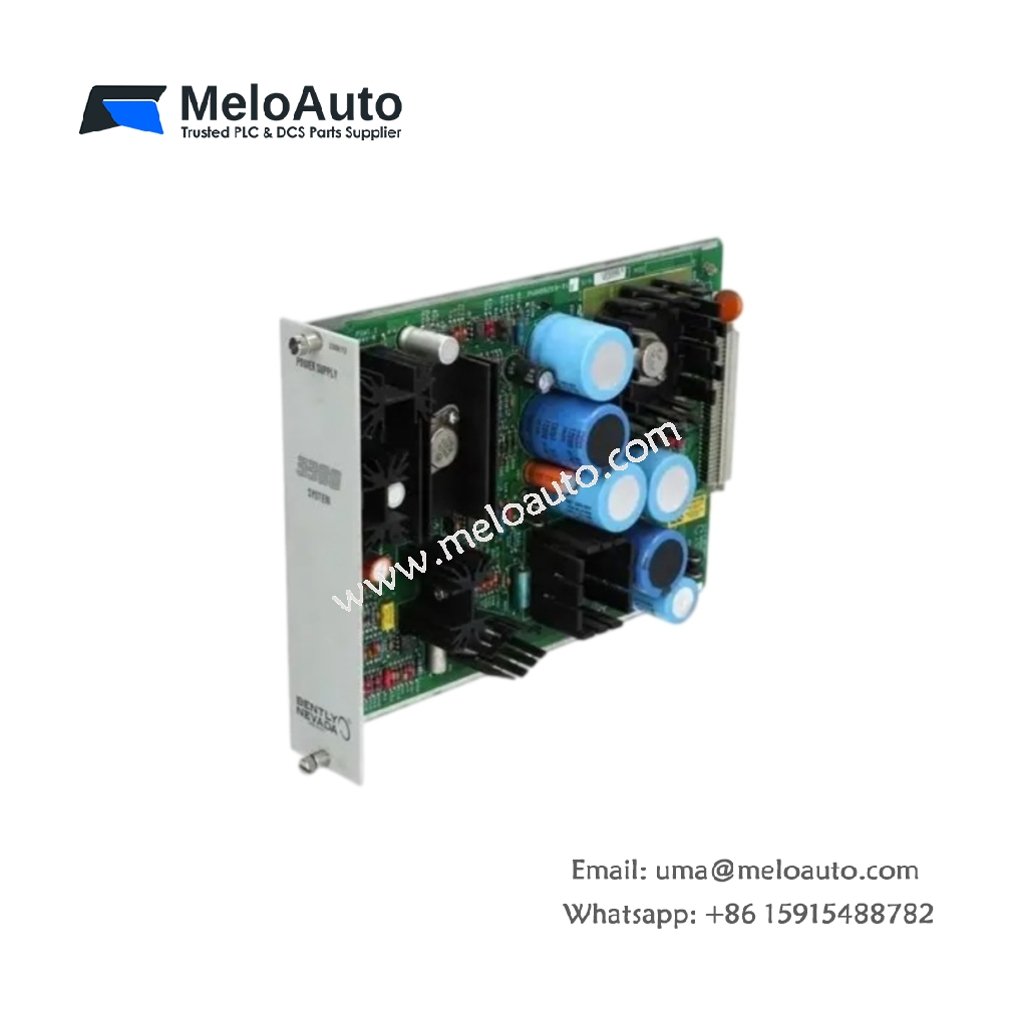

Bently Nevada 88194-01 Power Supply Monitor for Protection Racks

The 88194-01 power supply monitor tracks voltage rails inside Bently Nevada protection racks. Reliability engineers select this board when they need early warning of supply drift. Moreover, the monitor supports continuous supervision that prevents unexpected rack shutdowns.

Interface and Channel Layout

This board supervises two DC supply rails through dedicated input terminals. It also provides alarm relay outputs for control room annunciation. Therefore, technicians connect rack supplies and alarm circuits without external sensing hardware.

Physical Dimensions and Weight

The unit measures 140 mm in height, 20 mm in width, and 160 mm in depth. Additionally, it weighs approximately 0.25 kg, which simplifies rack slot installation. These slim dimensions help engineers fit the board alongside monitoring modules.

Component Count and Energy Storage

Each assembly contains 58 electronic components on a compact circuit board. Furthermore, the board integrates a capacitor for supply filtering and transient suppression. This energy storage element stabilizes measurement reference and protects sensitive supervisory circuitry.

Key Technical Parameters

Integration and Operational Benefits

The 88194-01 board pairs with Bently Nevada 3500 monitoring racks and protection systems. Consequently, reliability teams catch supply faults early and avoid unplanned trips. The compact form factor also lowers rack space and retrofit cost. Overall, this monitor delivers dependable supply supervision for continuous machine protection.
