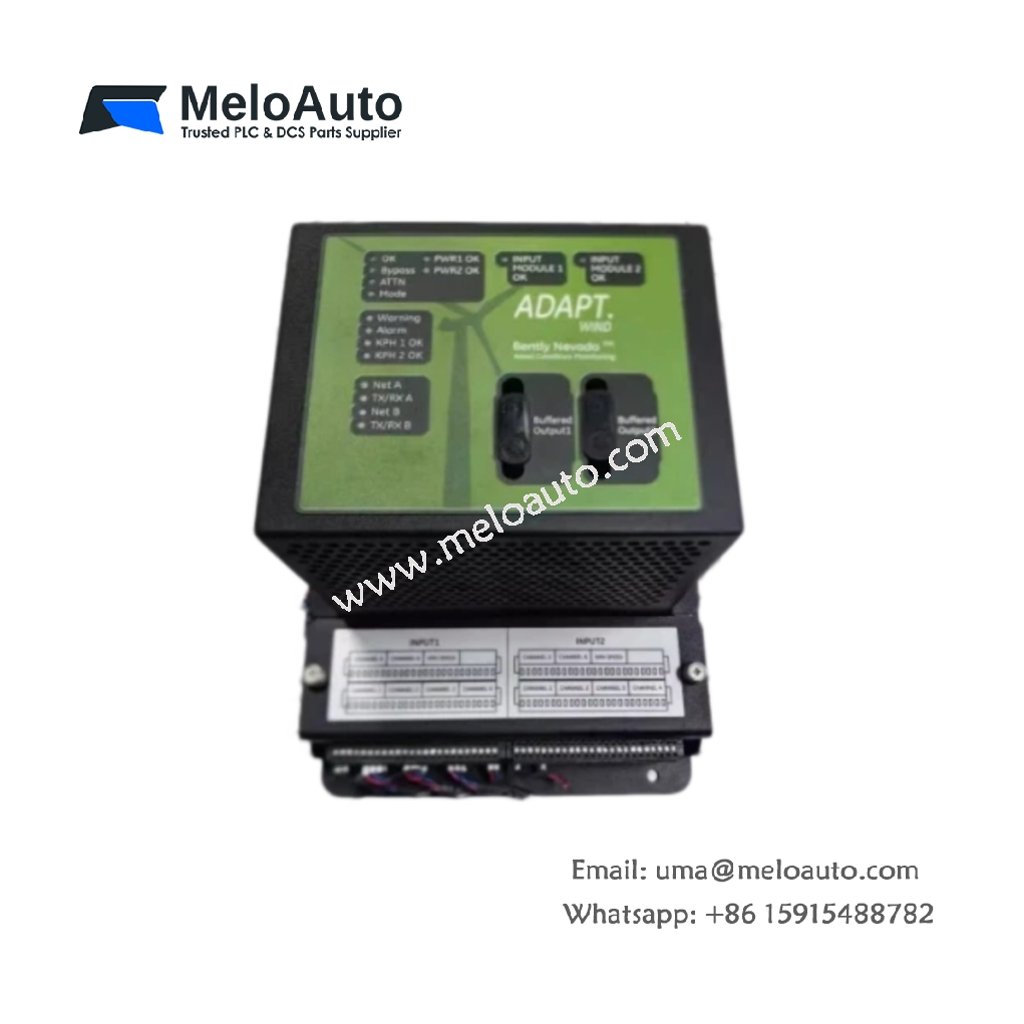

Bently Nevada 3701/60A Wind Turbine Monitor

Monitor Overview

The Bently Nevada 3701/60A wind turbine monitor provides comprehensive protection for wind turbine generators. This specialized module detects vibrations, bearing wear, and gearbox anomalies in real time. It belongs to the System 1® wind energy product family. Maintenance engineers rely on this monitor for turbine health assessment.

Measurement Channels and Sensors

The Bently Nevada 3701/60A features 6 analog input channels for comprehensive monitoring. Each channel accepts accelerometer, proximity probe, or temperature sensor signals. The module supports both permanent and portable sensor configurations. Users can combine measurement types for complete machine analysis. This flexibility suits various turbine makes and models.

Vibration Measurement Specifications

The monitor measures acceleration from 0 to 50 g for gearbox analysis. It covers velocity from 0 to 100 mm/s for bearing condition monitoring. The displacement range extends from 0 to 1000 micrometers for shaft tracking. Each channel includes programmable scaling for engineering units. These ranges support comprehensive turbine diagnostics.

Data Sampling and Processing

The Bently Nevada 3701/60A samples each channel at rates up to 25 kHz. It provides FFT analysis for frequency domain diagnostics. The module calculates overall, synchronous, and harmonic vibration values. Built-in peak detection captures transient events for analysis. This processing enables early fault detection.

Alarm Functions and Outputs

The monitor provides 4 programmable alarm relays for alert and danger setpoints. Each channel offers independent high-high and high-low trip levels. The unit delivers 4-20 mA analog outputs for process integration. It also provides relay contacts for protective shutdown. These outputs enable automated turbine protection.

Communication and Connectivity

The Bently Nevada 3701/60A supports Modbus TCP/IP and Ethernet communication. It interfaces with System 1® software for configuration and data viewing. The module includes USB port for local connection and firmware updates. Wireless connectivity options allow remote turbine monitoring. These interfaces support modern wind farm networks.

Physical Dimensions and Installation

The module measures 70 millimeters in width, 120 millimeters in height, and 100 millimeters in depth. The unit weighs 0.4 kilograms for straightforward installation. It mounts inside turbine control cabinets. The module requires DIN rail or panel mounting options. This compact design suits nacelle installations.

Power Consumption

The Bently Nevada 3701/60A draws 250 milliamperes from 24 V DC supply. It consumes approximately 6 watts during normal operation. The module includes reverse polarity protection for safety. This efficient design suits remote turbine locations. The low power demand supports solar or battery backup.

Environmental Durability

The monitor operates from -30°C to +65°C for extreme weather conditions. It withstands 10% to 95% non-condensing humidity. The unit meets IP67 enclosure protection for dust and water resistance. The conformal-coated PCB resists moisture and salt spray. This rugged design suits offshore and onshore turbines.

Fault Detection Capabilities

The Bently Nevada 3701/60A detects gear tooth mesh frequencies for gearbox health. It identifies bearing defect frequencies for early warning. The module monitors shaft imbalance and misalignment conditions. It also detects blade passing frequencies for rotor analysis. These capabilities enable predictive maintenance strategies.
