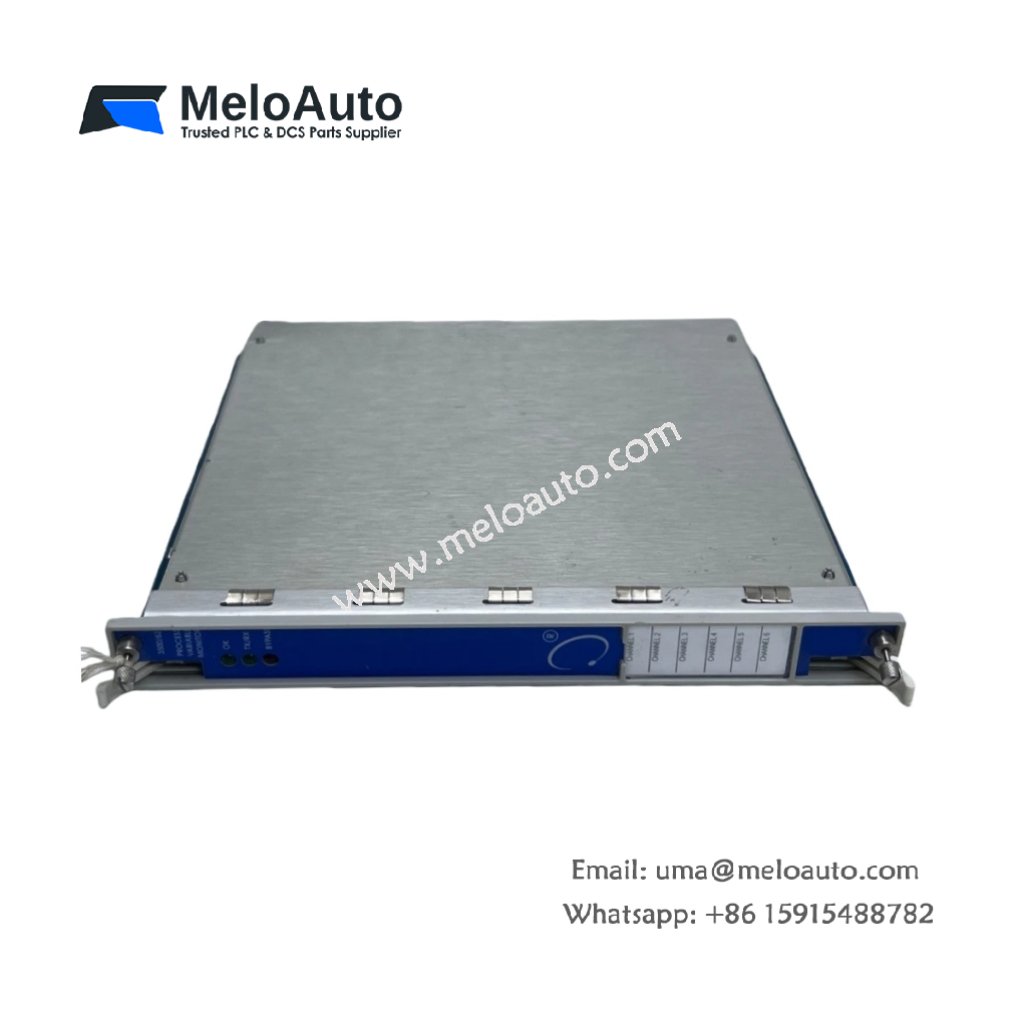

Bently Nevada 3500/62 Process Variable Monitor

Overview

The Bently Nevada 3500/62 Process Variable Monitor is designed to continuously monitor and process critical machine parameters such as pressures, flows, temperatures, and levels. With 6 input channels, it supports a variety of input signal types, including +4 to +20 mA current inputs and proportional voltage inputs from -10 Vdc to +10 Vdc. The monitor conditions these signals and compares them to user-defined alarm setpoints, ensuring reliable machine protection.

Key Features

• 6-Channel Monitoring: Supports continuous monitoring of key machine parameters.
• Flexible Input Options: Accepts both current and voltage inputs, offering flexibility for different sensor types.
• User-Programmable Setpoints: Customize alarm setpoints to protect machinery and ensure optimal performance.
• Multiple Signal Inputs: Choose from +/-10 Volts DC, isolated 4-20 mA, or 4-20 mA with intrinsically safe zener barriers.
• Intrinsically Safe I/O: The Internal Barrier I/O module provides external power input terminals to ensure safety in hazardous environments.

Technical Specifications

Dimensions & Weight

• Dimensions: 6.8 x 4.5 x 3.2 inches (173 x 114 x 81 mm)
• Weight: 1.5 kg (3.3 lbs)

Country of Origin

Manufactured in the United States

Environmental Limits

• Operating Temperature:
  • -30°C to +65°C (-22°F to +149°F) with Internal/External Termination I/O Module.
  • 0°C to +65°C (+32°F to +149°F) with Internal Barrier I/O Module (internal Termination).
• Storage Temperature:
  • -40°C to +85°C (-40°F to +185°F).
• Humidity:
  • 95%, Non-condensing.
