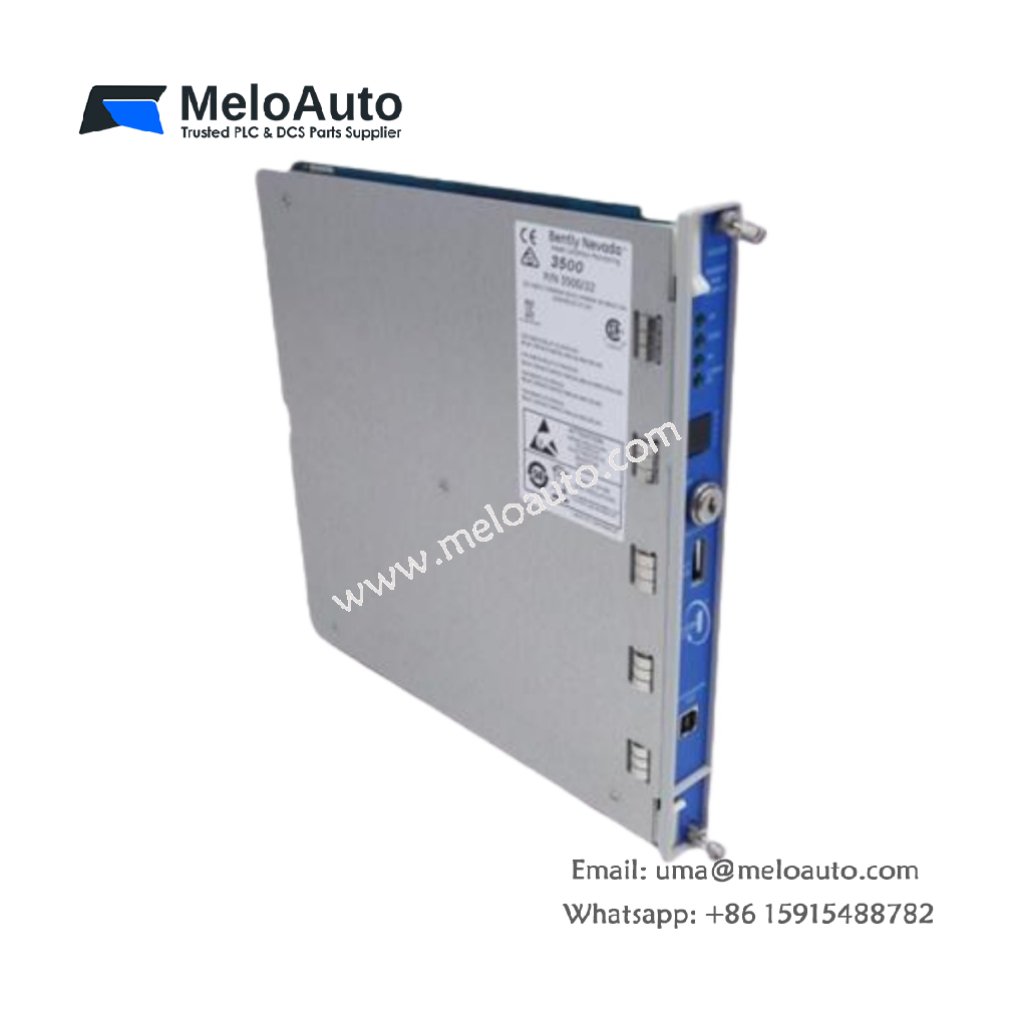

Bently Nevada 3500/22M Transient Data Interface Module

Overview

The Bently Nevada™ 3500/22M Transient Data Interface Module is an essential component of the 3500 Series, designed to enhance the monitoring of seismic activity. This module serves as the critical link between the 3500 monitoring system and compatible software like System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software. It integrates the functions of the 3500/20 Rack Interface Module (RIM) with the data processing capabilities of communication processors such as TDXnet.

Key Features

• Seismic Monitoring: Monitors seismic activity and provides critical transient data.
• Data Collection: Collects both steady-state and transient dynamic data through Ethernet link.
• Compatibility: Works seamlessly with M Series Monitors like 3500/40M and 3500/42M.
• Optional Channel Enabling Disk: Allows recording of high-resolution transient data.
• Rack Slot Integration: Placed next to power supplies within the 3500 rack for easy integration.
• Communication Processing: Integrates with compatible software, enhancing data collection and processing.

Technical Specifications

Functionality

The 3500/22M module connects the 3500 monitoring system to the host software via an Ethernet link, enabling the continuous transmission of dynamic waveform data. It supports integration with M Series Monitors such as the 3500/40M and 3500/42M.

In addition to conventional static data collection, the 3500/22M module can record high-resolution transient data when paired with the optional Channel Enabling Disk. The module’s communication processing function, housed within the 3500 rack, ensures seamless data flow without affecting the overall performance of the monitoring system.

Dimensions & Weight

• Dimensions: 9.50 x 4.50 x 1.00 inches (241 x 114 x 25.4 mm)
• Weight: 0.85 lbs (0.39 kg)

Country of Origin

Manufactured in the United States
