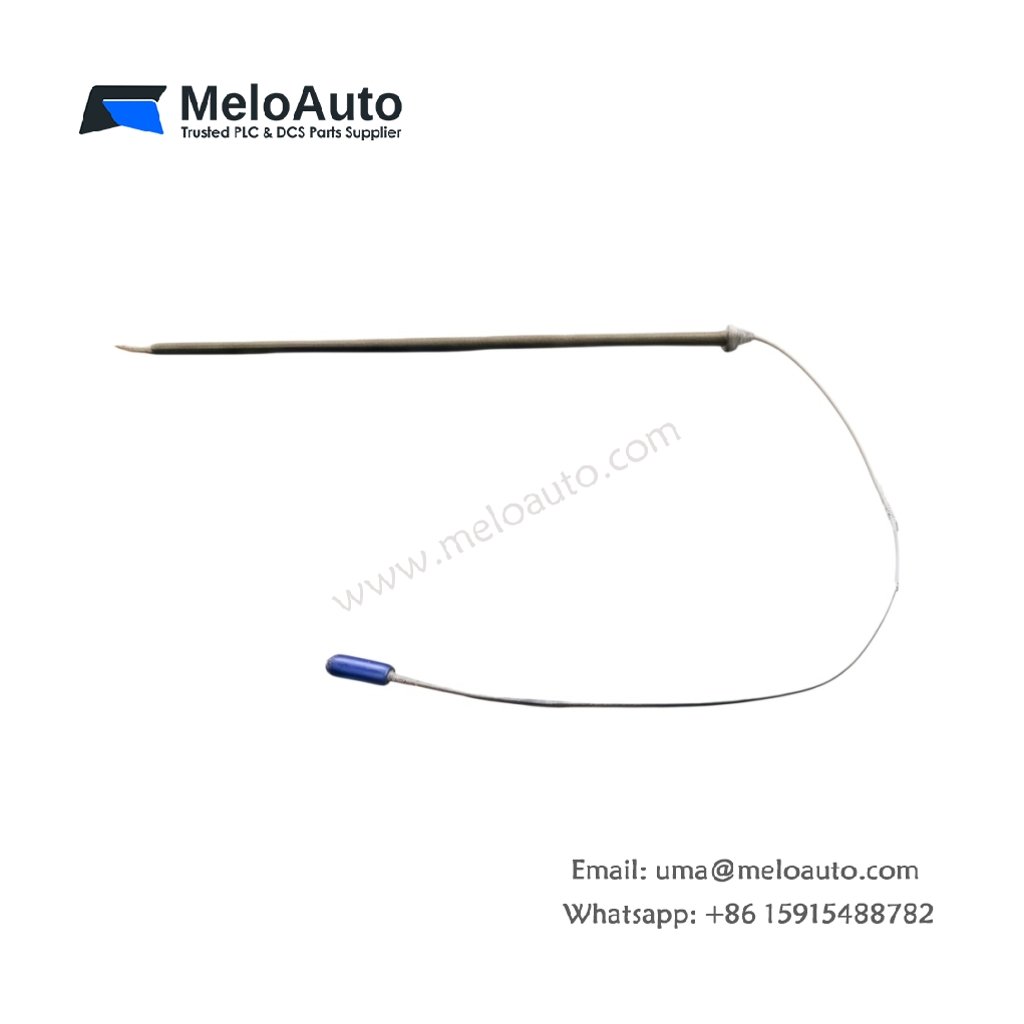

The 330905-00-12-10-02-00 proximity probe delivers high-precision vibration and position measurement for small-target rotating machinery. Bently Nevada engineered this 3300 NSv (Narrow Side View) sensor with an M10×1 thread and a 1.0-meter cable. Engineers rely on its compact design for installations where standard probes simply cannot fit.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330905-00-12-10-02-00 |
| Series | 3300 NSv |
| Category | Proximity Probe |
| Thread Type | M10 × 1 (without armor) |
| Unthreaded Length | 0 mm |
| Overall Case Length | 120 mm |
| Total Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Linear Range | 1.5 mm (60 mils) |
| Recommended Gap | 1.0 mm (40 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 304 stainless steel |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Weight | 0.14 kg |
| Operating Temperature | -52°C to +177°C |
| Agency Approval | Not required (00) |
| Certifications | API 670 compliant |
Key Features and Benefits
This probe employs eddy-current technology to measure shaft displacement without physical contact. The 120 mm case length with M10×1 thread suits deep mounting arrangements in compact machinery. Consequently, engineers achieve accurate vibration data across a 1.5 mm linear range.
The 330905-00-12-10-02-00 features the patented TipLoc molding method for secure tip-to-body bonding. Its PPS tip and stainless steel case resist chemical attack and thermal stress in harsh environments. Additionally, the ClickLoc gold-plated connector requires only finger-tight torque during installation.
Applications and Compatibility
This probe excels in small-diameter shaft monitoring and low-clearance installations. It connects directly to 3300 XL NSv Proximitor sensors and extension cables. Furthermore, the sensor supports API 670 compliant machinery protection across power generation and petrochemical industries.
