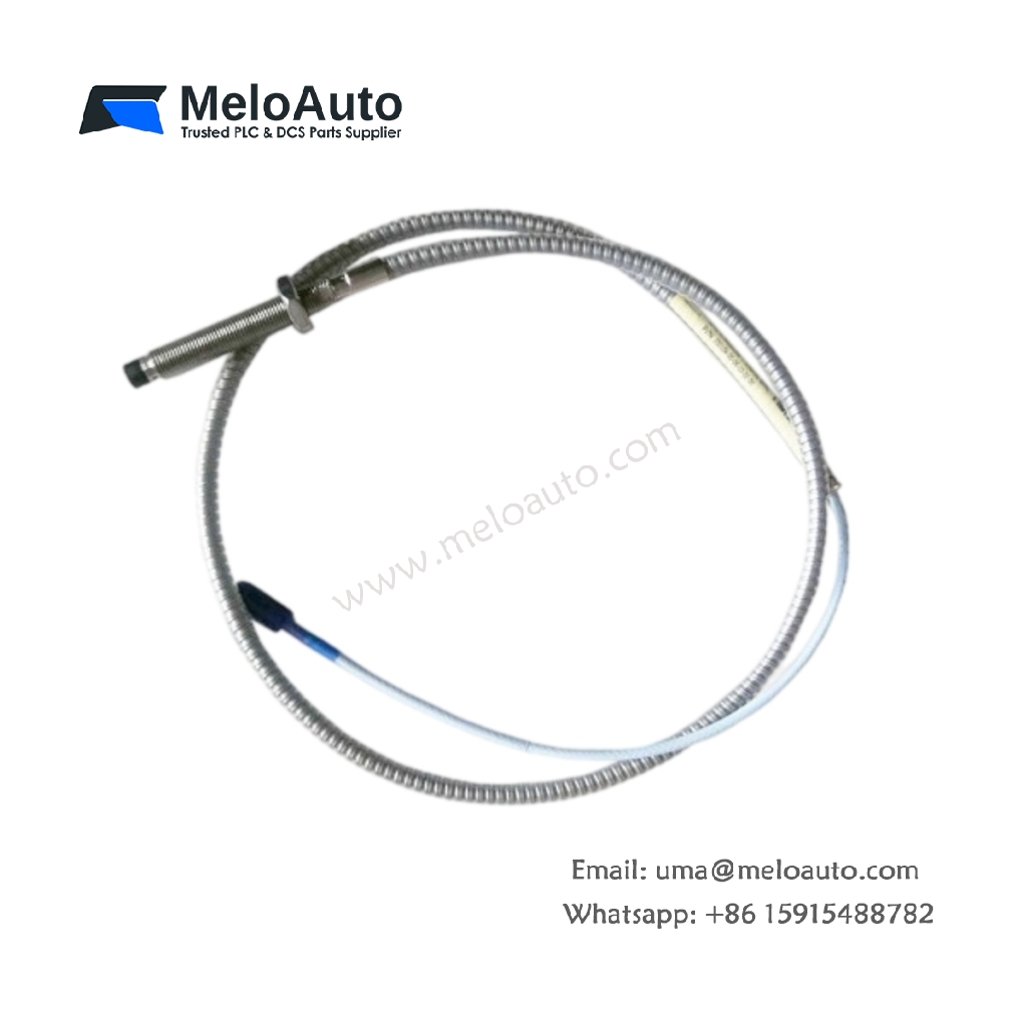

The 330104-00-22-10-01-05 proximity probe delivers precise non-contact displacement measurement for critical rotating machinery. Bently Nevada engineered this 8 mm eddy-current sensor with a 1.0-meter armored cable and an extended 220 mm case. Engineers rely on its PPS tip and stainless steel body for dependable shaft monitoring in turbines, compressors, and pumps.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330104-00-22-10-01-05 |
| Series | 3300 XL |
| Category | 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 0 mm (fully threaded) |
| Case Length | 220 mm |
| Total Cable Length | 1.0 meter (3.3 ft) |
| Cable Armor | Yes (01 option) |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 stainless steel |
| Weight | 0.35 kg |
| Operating Temperature | -51°C to +177°C |
| Agency Approval | CSA, ATEX, IECEx (05 option) |
| Certifications | API 670 compliant |
Key Features and Benefits
This probe employs eddy-current technology to measure shaft position without physical contact. The 220 mm case length with fully threaded M10×1 body suits deep mounting arrangements. Consequently, engineers achieve accurate displacement data across a 2 mm linear range.
The 330104-00-22-10-01-05 features a flexible armored cable that protects conductors from mechanical damage. Its PPS tip resists chemical attack and thermal stress in harsh industrial environments. Additionally, the CSA, ATEX, and IECEx approvals enable direct installation in hazardous areas.
Applications and Compatibility
This probe excels in radial vibration, axial position, and speed monitoring applications. It connects directly to 3300 XL extension cables and Proximitor sensors. Furthermore, the sensor supports API 670 compliant machinery protection across power generation and petrochemical industries.
