Product Overview

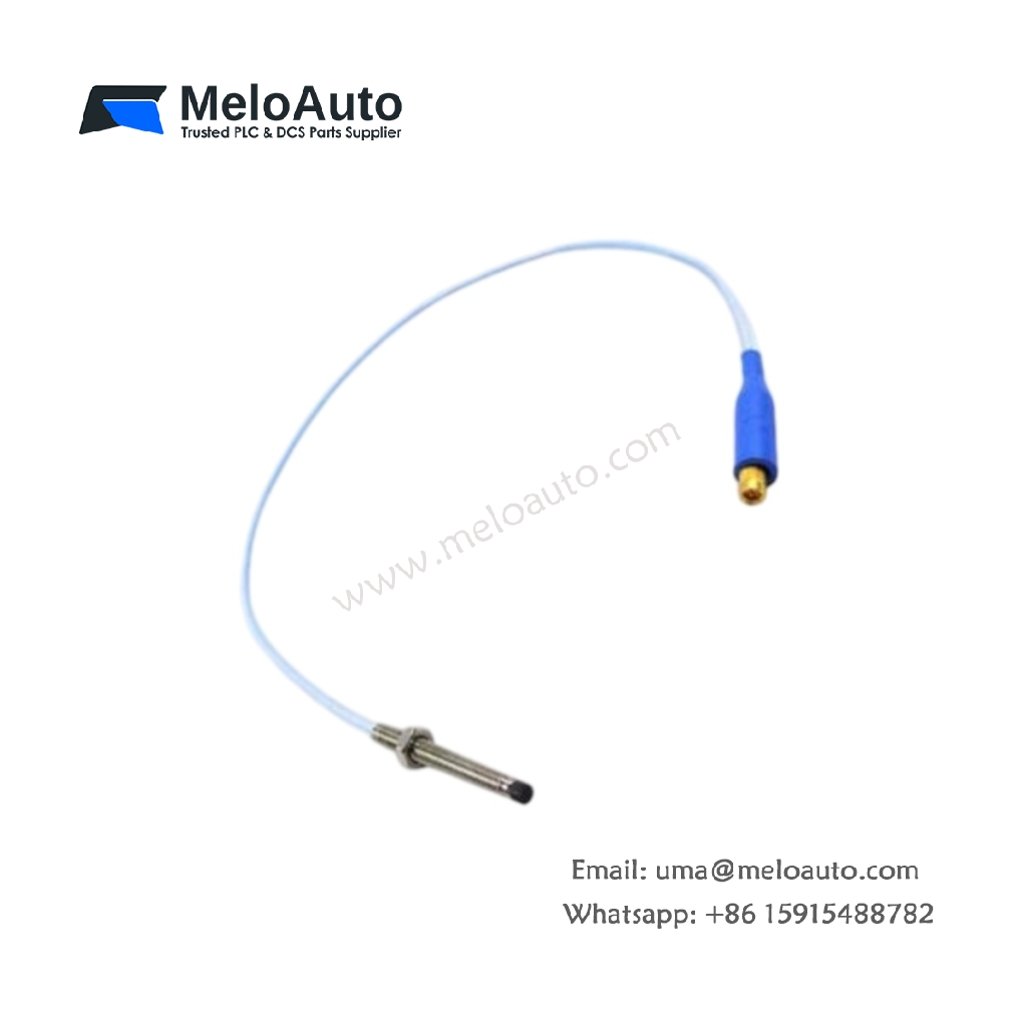

The 330901-00-40-10-02-05 operates as a 5 mm proximity probe within the Bently Nevada 3300 NSv series. This compact sensor captures non-contact displacement and vibration data from rotating machinery. Consequently, engineers gain reliable measurements in tight installations where space remains limited.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 5 mm |
| Total Length | 1.0 meter (probe plus cable) |
| Weight | Approximately 200 g |
| Connector Type | ClickLoc coaxial connector |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Linear Range | 1.5 mm (60 mils) |
| Recommended Gap | -10 V DC (about 1.0 mm) |
| Frequency Response | 0 to 10 kHz |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless steel |
| Mounting Thread | 3/8-24 UNF |
| Minimum Target Size | 15 mm |
Construction and Materials
The probe tip uses polyphenylene sulfide, which resists abrasion and chemical exposure. Meanwhile, the stainless steel body delivers rugged mechanical protection during continuous duty. The slim housing fits narrow spaces, so technicians mount it without extensive machine modification.
Interface and System Compatibility
This probe pairs with 3300 NSv extension cables and Proximitor sensors. Additionally, its 75 Ω impedance maintains signal fidelity across the entire measurement chain. Therefore, readings stay stable even when cable lengths differ between installations.
Installation Guidelines
A target measuring at least 15 mm wide ensures complete linear range coverage. Furthermore, technicians must observe side clearance and cable bend radius limits. Correct gap voltage adjustment directly influences measurement accuracy, so verify it after every mounting change.
