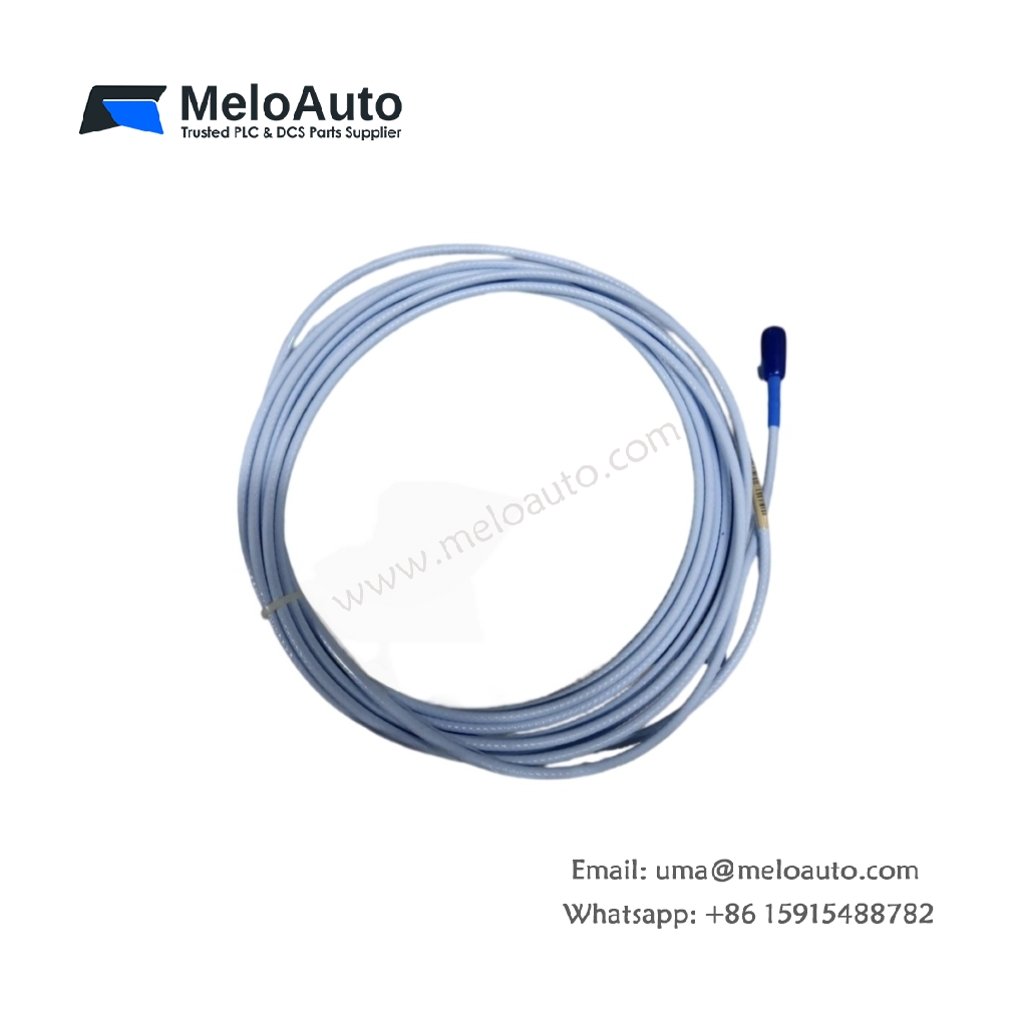

Bently Nevada 330130-005-00-00 3300 XL Extension Cable

The Bently Nevada 330130-005-00-00 is a compact extension cable from the 3300 XL series. It links proximity probes to drivers across short installation distances. Plants use it on turbines, compressors, and motors with tight layouts. Consequently, it delivers clean signal transfer without excess cable slack.

Key Technical Specifications

Parameter	Specification
Model	Bently Nevada 330130-005-00-00
Category	3300 XL Extension Cable
Cable Length	0.5 metres
Connector Type	00 style coaxial connectors
Cable Type	75 Ω coaxial, triple shielded
Weight	Approximately 90 g
Operating Temperature	-51 °C to +177 °C
Capacitance	69.9 pF/m nominal
Cable Jacket	FEP fluoropolymer
Connector Material	Stainless steel
Minimum Bend Radius	25 mm
Interface Standard	3300 XL compatible

Construction and Component Count

Each assembly includes two coaxial connectors, one at either end. The 330130-005-00-00 uses a triple-shielded 75 Ω coaxial cable design. Furthermore, the FEP jacket resists oil, moisture, and chemical attack. Stainless steel connectors tolerate repeated mating cycles in field service.

Signal Path and Energy Storage

This cable holds no active electronics or internal energy storage components. Instead, it passively transmits high-frequency signals between the probe and driver. The steady 75 Ω impedance minimises reflections and signal loss. As a result, measurement accuracy remains consistent across the short cable run.

Installation and Routing Notes

Technicians should respect the 25 mm minimum bend radius during routing. Additionally, keep the cable away from high-voltage conductors and variable-frequency drives. Correct connector torque prevents intermittent signal faults in service. Always verify total system length against driver specifications.
