Bently Nevada 330104-00-15-05-02-00

Product Overview

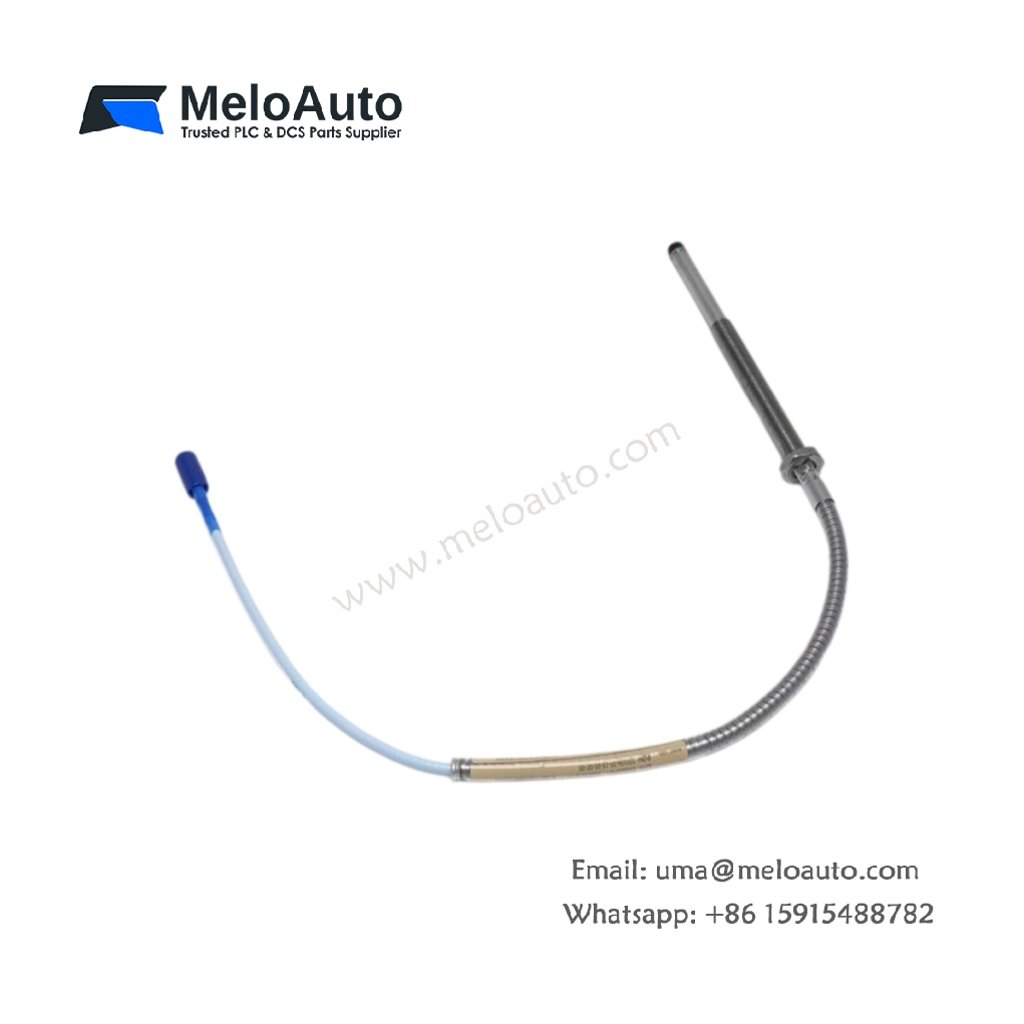

The 330104-00-15-05-02-00 extends Bently Nevada’s proven 3300 XL platform with an 8 mm probe tip and a 0.5-meter cable assembly. This sensor performs non-contact displacement and vibration measurements on rotating machinery. Moreover, it suits steam turbines, compressors, and pumps that demand reliable radial and axial position feedback.

Technical Specifications

Parameter	Value
Probe Tip Diameter	8 mm
Total Length	0.5 meter (probe plus cable)
Weight	Approximately 210 g
Connector Type	ClickLoc coaxial connector
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C
Linear Range	2 mm (80 mils)
Recommended Gap	-10 V DC (about 1.27 mm)
Frequency Response	0 to 10 kHz
Tip Material	Polyphenylene sulfide (PPS)
Case Material	Stainless steel
Mounting Thread	3/8-24 UNF
Minimum Target Size	45 mm

Construction Details

The probe tip uses polyphenylene sulfide, which resists abrasion and chemical attack. Meanwhile, the stainless steel housing delivers mechanical strength under continuous duty. The integrated coaxial cable ends in a ClickLoc connector, so technicians achieve secure mating without specialized tooling.

Interface and Compatibility

This probe works with 3300 XL extension cables and Proximitor sensors. Additionally, the consistent 75 Ω impedance preserves signal integrity throughout the measurement chain. Consequently, readings stay stable even when cable runs change length.

Installation Notes

A target at least 45 mm wide ensures full linear range performance. Furthermore, installers must respect side clearance and cable bend radius limits. Correct gap voltage setting directly affects displacement accuracy, so always verify it after mounting.
