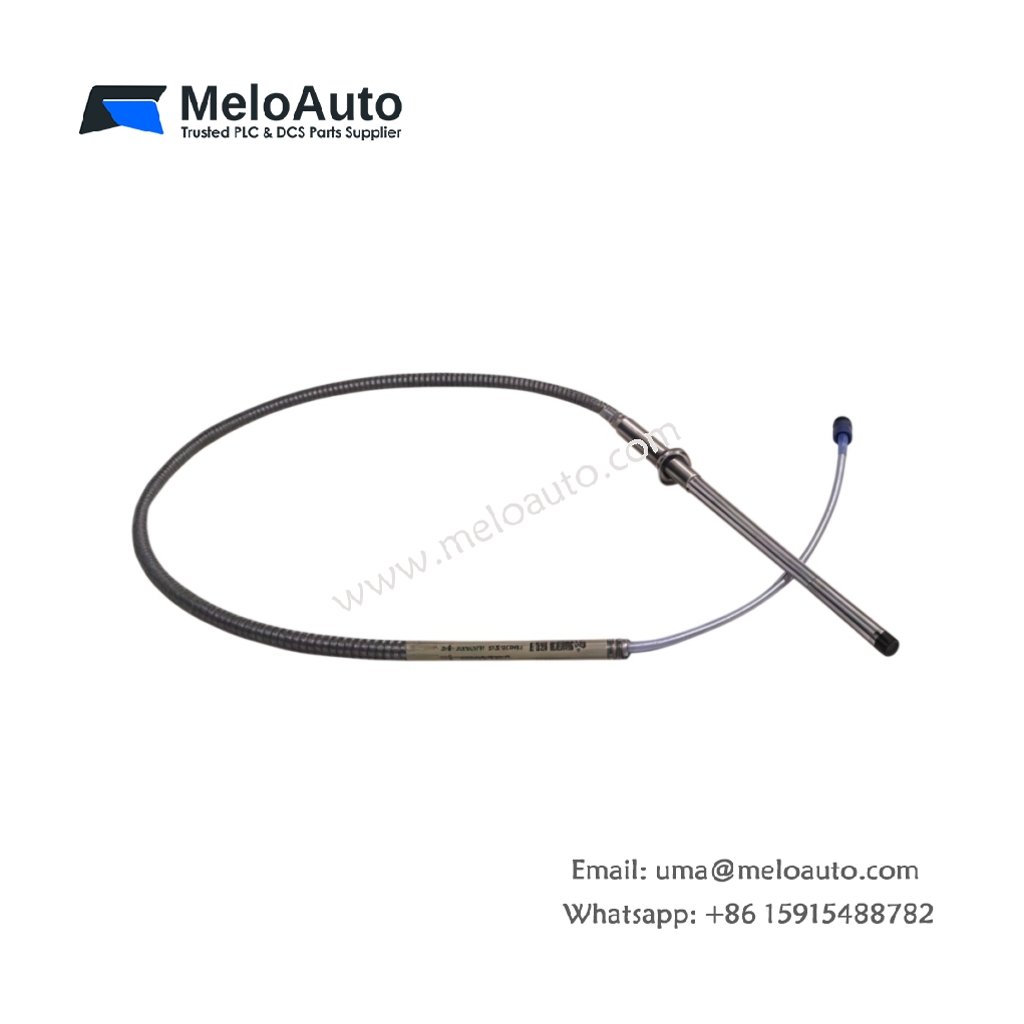

Bently Nevada 330104-00-14-10-02-05

Product Overview

The 330104-00-14-10-02-05 functions as a proximity transducer inside the Bently Nevada 3300 XL family. This 8 mm sensor captures non-contact displacement and vibration data from rotating machinery. Consequently, plant engineers depend on it for radial position, axial thrust, and keyphasor measurements.

Technical Specifications

Parameter	Value
Probe Tip Diameter	8 mm
Total Length	1.0 meter (probe plus cable)
Weight	Approximately 250 g
Connector Type	ClickLoc coaxial connector
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C
Linear Range	2 mm (80 mils)
Recommended Gap	-10 V DC (about 1.27 mm)
Frequency Response	0 to 10 kHz
Tip Material	Polyphenylene sulfide (PPS)
Case Material	Stainless steel
Mounting Thread	3/8-24 UNF
Minimum Target Size	45 mm

Construction and Materials

The transducer tip uses polyphenylene sulfide, which resists abrasion and chemical exposure. Meanwhile, the stainless steel body delivers rugged mechanical protection during continuous duty. The integral cable ends in a ClickLoc connector, so technicians achieve fast mating without special tools.

Interface and System Compatibility

This transducer pairs with 3300 XL extension cables and Proximitor sensors. Additionally, its 75 Ω impedance maintains signal fidelity across the entire measurement chain. Therefore, readings stay stable even when cable lengths differ between installations.

Installation Guidelines

A target measuring at least 45 mm wide ensures complete linear range coverage. Furthermore, technicians must observe side clearance and cable bend radius limits. Correct gap voltage adjustment directly influences measurement accuracy, so verify it after every mounting change.
