Bently Nevada 330104-00-15-10-02-05

Overview

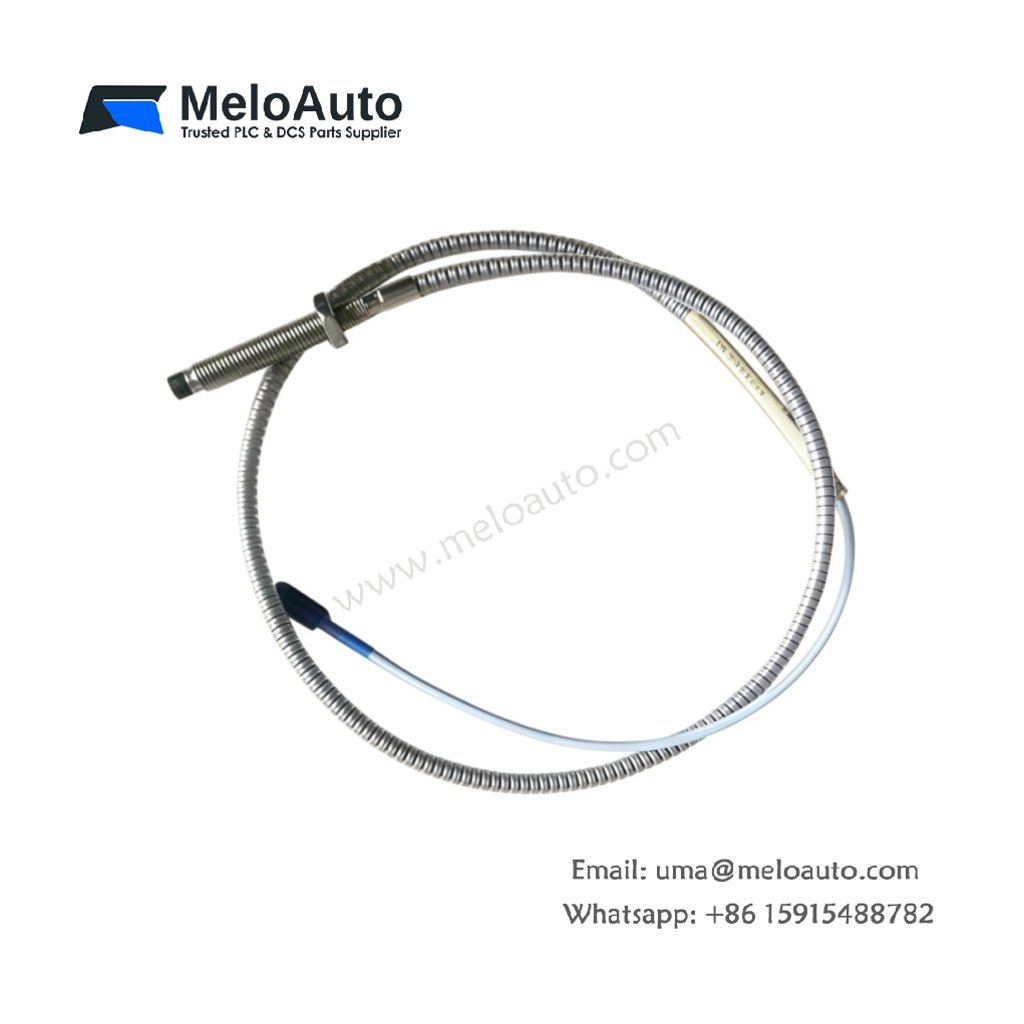

The 330104-00-15-10-02-05 belongs to the Bently Nevada 3300 XL series, a widely trusted family of 8 mm proximity probes. These sensors deliver precise non-contact displacement measurements for rotating machinery. Consequently, engineers rely on them for vibration monitoring, axial position, and keyphasor applications in harsh industrial environments.

Key Technical Specifications

Parameter	Value
Probe Tip Diameter	8 mm
Total Length	1.0 meter (probe + cable)
Weight	Approximately 250 g
Connector Type	ClickLoc coaxial connector
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-35°C to +177°C
Linear Range	2 mm (80 mils)
Recommended Gap	-10 V DC (approximately 1.27 mm)
Frequency Response	0 to 10 kHz
Probe Material	Polyphenylene sulfide (PPS) tip
Mounting Thread	3/8-24 UNF
Storage Temperature	-51°C to +177°C

Design and Construction

Each probe incorporates a PPS tip that resists chemical attack and abrasion. Meanwhile, the stainless steel case provides mechanical strength and corrosion resistance. The integral coaxial cable terminates in a ClickLoc connector, which ensures secure mating without special tools.

Interface and Compatibility

These probes pair with 3300 XL extension cables and Proximitor sensors. In addition, the standardized 75 Ω impedance guarantees signal integrity across the entire measurement chain. Therefore, users achieve consistent readings even when cable lengths vary.

Application Notes

Installation requires a minimum target size of 45 mm for full linear range. Furthermore, side and rear clearance must accommodate the probe body and cable bend radius. Proper gap voltage setting remains critical for accurate displacement data.
